2    Headers

Headers serve as a cover page and table of contents for the object file. They contain size descriptions, magic numbers, and pointers to other sections.

The object file components covered in this chapter are the file header, a.out header, and section headers:

• The file header identifies the object file and indicates its type.

• The a.out header provides the size, location, and addresses of the object's segments.

• Section headers store the name, size, and mapped address of their sections and contain the locations of the section's raw data and relocation entries. Each object file section that is not part of the symbol table has a section header.

An object file may contain other header sections that are used to navigate the symbol table and dynamic loading information. The symbolic header and dynamic header are discussed in Chapter 6 and Chapter 14 respectively.

2.1    New or Changed Header Features

Tru64 UNIX V5.1B includes the following new or modified features:

• A new linker-defined symbol __EXEC_FLAGS has been added for runtime access to identify TASO programs (see Section 2.3.3.2.1).

Tru64 UNIX V5.1 includes the following new or modified features:

• A new section header definition that uses reserved bits for specifying section alignment (see Section 2.2.3).

2.2    Structures, Fields, and Values for Headers

struct filehdr {
        coff_ushort     f_magic;
        coff_ushort     f_nscns;
        coff_int        f_timdat;
        coff_off        f_symptr;
        coff_int        f_nsyms;
        coff_ushort     f_opthdr;
        coff_ushort     f_flags;
};

SIZE - 24 bytes, ALIGNMENT - 8 bytes

File Header Fields

f_magic

File magic number (see Table 2-1). Used for identification.

f_nscns

Number of section headers in the object file.

f_timdat

Time and date stamp. This field is implemented as a signed 32-bit quantity that acts as a forward or backward offset in seconds from midnight on January 1, 1970. The resulting date range is approximately 1902-2038.

f_symptr

File offset to symbolic header. This field is set to zero in a stripped object.

f_nsyms

Size of symbolic header (in bytes). This field is set to zero in a stripped object.

f_opthdr

Size of a.out header (in bytes).

f_flags

Flags (see Table 2-2) that describe the object file. Note that the file header flags cannot be treated as a bit vector because some values are overloaded.

Table 2-1:  File Header Magic Numbers

Table 2-2:  File Header Flags

The flags in Table 2-3 are defined for the linker-defined symbol __EXEC_FLAGS. See Section 2.3.3.2.1 for an example of how these flags are used.

Table 2-3:  __EXEC_FLAGS flags

2.2.2    a.out Header (aouthdr.h)

The a.out header is also referred to as the "optional header". Note that "optional" is a misnomer because the header is actually mandatory.

typedef struct aouthdr {
        coff_ushort     magic;
        coff_ushort     vstamp;
        coff_ushort     bldrev;
        coff_ushort     padcell;
        coff_long       tsize;
        coff_long       dsize;
        coff_long       bsize;
        coff_addr       entry;
        coff_addr       text_start;
        coff_addr       data_start;
        coff_addr       bss_start;
        coff_uint       gprmask;
        coff_uint       fprmask;
        coff_long       gp_value;
} AOUTHDR;

SIZE - 80 bytes, ALIGNMENT - 8 bytes

a.out Header Fields

magic

Object file magic numbers (see Table 2-5).

vstamp

Object file version stamp. This value consists of a major version number and a minor version number, as defined in the stamp.h header file:

Symbol	Value	Description
MAJ_OBJ_STAMP	3	Current major object format version
MIN_OBJ_STAMP	13	Current minor object format version

This version stamp covers all parts of the object file exclusive of the symbol table, which is covered by an independent version stamp stored in the symbolic header

See Section 1.4.5 for a description of object file versioning.

bldrev

Revision of system build tools. This value is defined in stamp.h and is updated for each major release of the operating system. The values for Tru64 UNIX releases to date are shown below. This field is not meaningful to users.

Table 2-4:  Build Revision Constants

Release	bldrev
V1.2	—
V1.3	2
V2.0	4
V3.0	6
V3.2	8
V4.0	10
V5.0	12
V5.1	14

tsize

Text segment size (in bytes) padded to 16-byte boundary; set to zero if there is no text segment.

For ZMAGIC object files, this value includes the size of the header sections (file header, a.out header, and all section headers). See Section 2.3.2 for more information.

dsize

Data segment size (in bytes) padded to 16-byte boundary; set to zero if there is no data segment..

bsize

Bss segment size (in bytes) padded to 16-byte boundary; set to zero if there is no bss segment.

entry

Virtual address of program entry point. This field is meaningful primarily for executable objects. For shared libraries, it contains the starting address of the first procedure. For pre-link objects, it is typically set to zero.

text_start, data_start, bss_start

Base address of text, data, and bss segments, respectively, for this file. Alignment requirements are discussed in Section 2.3.2.

gprmask

Unused.

fprmask

Unused.

gp_value

The initial GP (Global Pointer) value used for this object. The kernel loads this value into the GP register ($gp) when a program is executed. The program entry point identified by the entry field will load its GP value into the GP register, which may or may not be different than the value in this field for objects with multiple GP ranges. See Section 2.3.4. This value is also used by the linker as a basis for relocation adjustments in objects. See Section 4.3.3.2.

Table 2-5:  a.out Header Magic Numbers

2.2.3    Section Headers (scnhdr.h)

---

Version Note

The following structure definition is for Tru64 UNIX V5.1 and greater. It is compatible with object format V3.13 and greater. New fields are identified in the field descriptions following the structure.

---

struct scnhdr {
        char            s_name[8];
        coff_addr       s_paddr;
        coff_addr       s_vaddr;
        coff_long       s_size;
        coff_off        s_scnptr;
        coff_off        s_relptr;
        coff_ulong      s_lnnoptr;
        union {
            struct {
                coff_ushort  _s_nreloc;
                coff_ushort  _s_nlnno;
            } _s;
            struct {
                coff_uint    _s_nreloc:16;
                coff_uint    _s_alignment:4;
                coff_uint    _s_reserved:12;
            } _b;
        }               s_u;
        coff_uint       s_flags;
};
#define s_nreloc     s_u._s._s_nreloc
#define s_nlnno      s_u._s._s_nlnno
#define s_alignment  s_u._b._s_alignment
#define s_reserved   s_u._b._s_reserved

SIZE - 64 bytes, ALIGNMENT - 8 bytes

Section Header Fields

s_name

Section name (see Table 2-6); null-terminated unless exactly 8 bytes. Long section names are truncated to 8 bytes and are not null-terminated. Unused bytes are zero filled.

s_paddr

Base virtual address of section in the image. Although this field contains the same value as s_vaddr, normally s_vaddr is used and s_paddr is ignored.

s_vaddr

Base virtual address of a loadable section in the image.

This field is set to zero for nonloadable sections such as .comment.

For the sections .tlsdata and .tlsbss, this field contains an offset from the beginning of the object's dynamically allocated TLS region.

s_size

Section size rounded to 16-byte multiple.

s_scnptr

File offset to beginning of raw data for the section. The raw data pointed to by this field, and described by the s_size field, is mapped at s_vaddr (if non-zero) in the process image.

For sections with no raw data, such as .bss, this field is set to zero.

s_relptr

File offset to relocations for the section; set to zero if the section has no relocations.

s_lnnoptr

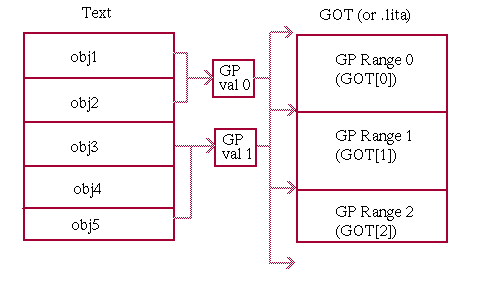

In .lita section header, indicates number of GP ranges used for the object:

Value	Meaning
0	Object has one GP range.
1	Invalid value.
2 or higher	Object has this number of GP ranges.

For sections with GP relative relocations, this field contains the number of R_GPVALUE relocation entries for that section. In .pdata this field contains the number of code range descriptors.

For other sections, the field is reserved and must be zero.

---

Version Note

For object formats less than V3.13 the value of this field may not be zero and should be ignored.

---

s_nreloc

Number of relocation entries; 0xffff if number of entries overflows size of this field (see Table 2-7).

s_nlnno

Not used. This field overlays the s_alignment and s_reserved fields.

s_alignment

(V5.1 - ) Contains a power-of-two biased alignment factor. The alignment is calculated by adding 3 to this value and interpreting the sum as a power of two. The value 0 is interpreted as 16 byte alignment because this is the minimum section rounding allowed. The maximum value that can be represented is 15 which is 256k byte alignment.

---

Version Note

For object formats less than V3.13 the value of this field may not be zero and should be ignored.

---

s_reserved

(V5.1 - ) Reserved. Must be zero.

---

Version Note

For object formats less than V3.13 the value of this field may not be zero and should be ignored.

---

s_flags

Flags identifying the section (see Table 2-7). Not all of these flag values are single bit masks. See Section 2.3.6 for information on testing section flags.

Table 2-6:  Section Header Constants for Section Names

Table Notes:

1. These sections exist only in dynamic executables and shared libraries and are used during dynamic linking. See Chapter 14 for details.

2. The .xdata and .pdata sections contain exception-handling data. See the Calling Standard for Alpha Systems for details. Other sections are described in Chapter 3.

Table 2-7:  Section Flags (s_flags field)

Table Notes:

1. These sections exist only in dynamic executables and shared libraries and are used during dynamic linking. See Chapter 14 for details.

2. The S_NRELOC_OVFL flag is used when the number of relocation entries in a section overflows the s_nreloc field in the section header. In this case, s_nreloc contains the value 0xffff and the s_flags field has the S_NRELOC_OVFL flag set. The actual relocation count is in the first relocation entry for the section.

General Notes:

The system linker uses the s_flags field instead of s_name to determine the section type. User-defined sections (see Section 3.3.10) constitute an exception; they are identified exclusively by section name.

Each section header must be unique within the object file. For system-defined sections, both the section name and flags must be unique. For user-defined sections, the name must be unique.

2.3    Header Usage

Object file consumers use the file header to recognize an input file as an object file. Other tools that do not support objects may use the file header to determine that they cannot process the file. The file command can also identify an object by means of the file and a.out headers.

A file is identified as an object in its first 16 bits. These bits correspond to the magic number field in the file header. Objects built for the Alpha architecture are identified by the magic number ALPHAMAGIC; equivalent compressed objects are identified by ALPHAMAGICZ. Foreign objects, which are objects built for other architectures, may also be positively identified. However, once a foreign object is recognized, it is not considered to be a linkable or executable object file on the Alpha system.

In addition to providing basic identification, the file header also provides a high-level description of the object file through its flags field. File header flags store the following information: whether the object is executable, whether symbol table sections have been stripped, whether the file is suitable for creation of a shared library, and more. See Table 2-2 for a list of all flags.

The a.out header magic numbers also contribute important information about the file format. The magic numbers signify different organizations of object file sections and indicate where the image will be mapped into memory (see Section 2.3.2).

2.3.2    Image Layout

The a.out header stores run-time information about the object. Its magic number field indicates how the file is to be organized in virtual memory. Note that the contents and ordering of the sections of the image can be affected by compilation options and program contents in addition to the MAGIC classification.

The possible image formats are:

Impure Format ( OMAGIC)

OMAGIC files are typically relocatable object files. They are referred to as "impure" because the text segment is writable.

Shared Text Format ( NMAGIC)

NMAGIC files are static executables that use a different organization from the default ZMAGIC layout. The NMAGIC format is historical and offers no special advantages. This format can be selected by using the linker option -n or -nN in conjunction with -non_shared. In an NMAGIC file, the text segment is shared.

Demand Paged Format ( ZMAGIC)

ZMAGIC files are executable files or shared libraries. This format is referred to as demand-paged because its segments are blocked on page boundaries, allowing the operating system to page in text and data as needed by the running process. By default, the linker aligns ZMAGIC segments on 64K boundaries, the maximum possible page size on Alpha systems.

The ordering of sections within segments is flexible. Diagrams in this section depict the default ordering as laid out by the linker.

The default segment ordering, which places the text segment before the data segment, is flexible. However, the bss segment is required to contiguously follow the data segment, wherever the data segment is located.

All three formats are constrained by the following restrictions:

• Segments must not overlap.

• The bss segment must follow the data segment.

• All text addresses in the object file must be within two gigabytes (0x7fff8000) of all data addresses in the file.

2.3.2.1     OMAGIC

The OMAGIC format typically has the following layout and characteristics:

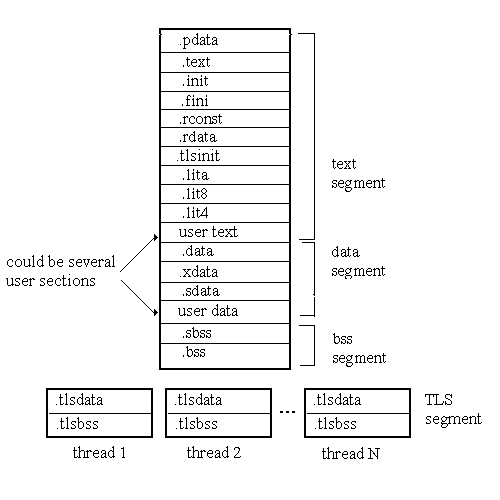

Figure 2-1:   OMAGIC Layout

• Segments must not overlap.

• The bss segment must follow the data segment.

• All text addresses in the object file must be within two gigabytes (0x7fff8000) of all data addresses in the file.

• Starting section addresses are aligned on a 16-byte boundary.

• Pre-link OMAGIC objects are zero-based, with the data segment contiguous to the text segment. The default text segment address for partially linked objects is 0x10000000, and the data segment follows the text segment.

• Usually contain relocation information.

• Cannot be a shared object.

Starting addresses can be specified for the text and data segments using -T and -D options. These addresses can be anywhere in the virtual address space but must be aligned on a 16-byte boundary.

OMAGIC layout is most commonly used for pre-link object files produced by compilers. Post-link OMAGIC files tend to be used for special purposes such as loadable device drivers and om input objects.

Loadable device drivers must be built as OMAGIC files because the kernel loader kloadsrv relies upon relocation information in order to link objects into the kernel image.

OMAGIC files can also be executable. An important example of an OMAGIC executable file is the kernel, /vmunix. A programmer might also choose to use an OMAGIC format for self-modifying programs or for any other application that has a reason to write to the text segment.

2.3.2.2     NMAGIC

The NMAGIC file format is of historical interest only.

The NMAGIC format typically has the following layout and characteristics:

Figure 2-2:   NMAGIC Layout

• Segments must not overlap.

• The bss segment must follow the data segment.

• All text addresses in the object file must be within two gigabytes (0x7fff8000) of all data addresses in the file.

• Text and data segment addresses fall on page-size boundaries. The bss segment is aligned on a 16-byte boundary.

• By default, the starting address of the text segment is 0x20000000 and the starting address of the data segment is 0x40000000.

• Cannot be a relocatable object, partially linked object, or a shared object.

Addresses can be specified for the start of the text and data segments using -T and -D options. These addresses may be anywhere in the virtual address space but must be a multiple of the page size.

2.3.2.3     ZMAGIC

The ZMAGIC format typically has the following layout and characteristics:

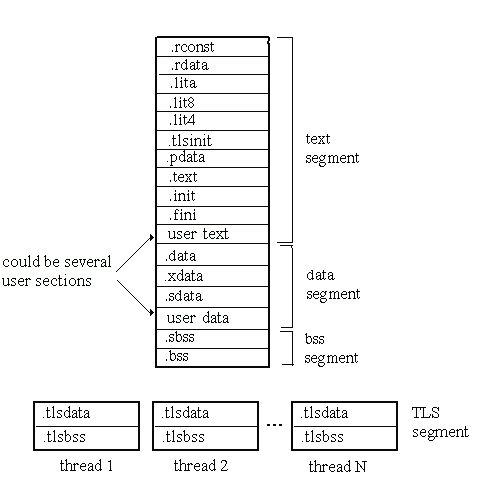

Figure 2-3:   ZMAGIC Layout for Shared Object

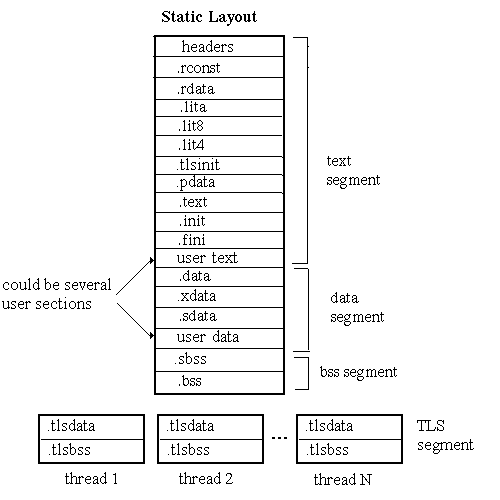

Figure 2-4:   ZMAGIC Layout for Static Executable Objects

The .rdata and .tlsinit sections are shown as part of the text segment. However, it is possible that one or both of those sections might be in the data segment. They are placed in the data segment only if they contain dynamic relocations.

• Segments must not overlap.

• The bss segment must follow the data segment.

• All text addresses in the object file must be within two gigabytes (0x7fff8000) of all data addresses in the file.

• Text and data segments are blocked; the blocking factor is the page size.

• By default the starting address of the text segment is 0x120000000 and the starting address of the data segment is 0x140000000. The bss segment follows the data segment.

• Can be either a shared or static object, but not a relocatable object.

Addresses can be specified for the start of the text and data segments using -T and -D options. Those addresses can be anywhere in the virtual address space but must be a multiple of the page size.

2.3.3    Address Space

At load time, an executable object is mapped into the system's virtual memory using one of the formats detailed in Section 2.3.2. The user can choose where the object, transformed into the program image, will be loaded, but system-specific constraints exist. This section discusses the general layout of the address space and the various considerations involved in choosing memory locations for object file segments.

Figure 2-5 shows the default memory scheme for a dynamic image.

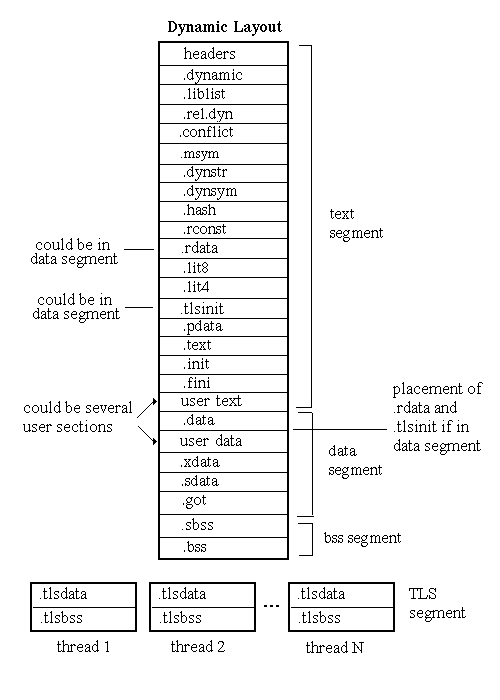

Figure 2-5:  Address Space Layout

The stack is used for storing local variables. It grows toward zero. The stack pointer (stored in register $sp) points to the top of the stack at all times. In generated code, items on the stack are often referenced relative to the stack pointer.

The program heap is reserved for system memory-allocation calls (brk() and sbrk()). TLS sections are allocated from the heap. The heap begins where the bss segment of the program ends, and the special symbol _end indicates the start of the heap. The heap's placement can also be calculated using the starting addresses and sizes of segments in the a.out header. The mapping of shared libraries may impose an upper bound on the heap's size. Some programs do not have a heap.

The dynamic loader and shared libraries reside in memory during program execution. See Section 14.3.2 for details.

User programs can request additional memory space that is dynamically allocated. One way to request space is through an anonymous mmap() call. This system call creates a new memory region belonging to the process. The user can attempt to specify the address where the region will be placed. However, if it is not possible to accommodate that placement, the system will rely on environment variables to dictate placement. See mmap(2) for details.

The usable address range for user mode addresses is 0x0 - 0x40000000000. Attempts to map object file segments outside this range will fail, and the defaults will be invoked or execution aborted.

2.3.3.1    Address Selection

Several mechanisms permit the user to select addresses for loadable objects or assist the user in choosing viable addresses. Unless there is a good reason to do otherwise, it is preferable to rely on system defaults, which are designed to enhance performance and reduce conflicts.

The linker's -T and -D options may be used to specify the starting addresses for the text and data segments of an executable, respectively. Use of these options may be appropriate for large applications with dependencies on many shared libraries that need to explicitly manage their address space. Programs relying in any way on fixed addresses may also need to control the segment placement.

Another use of the address selection options is to place an application in the lowest 31 bits of the address space. To restrict an application to this part of the address space, the -T and -D switches may be used in conjunction with the -taso option (see Section 2.3.3.2) or separately.

The default placement of the text and data segments at 0x120000000 and 0x140000000 for executables means the default maximum size of the text segment is 0x20000000 bytes, or approximately 500MB. If this space is insufficient, the -D option can be used to enlarge it by specifying a higher starting address for the data segment.

The -T and -D options can also be used to change the segment ordering. Some applications, such as those ported from other platforms onto the Alpha platform, may rely upon the data segment being mapped in lower addresses than the text segment.

If only -T or only -D is specified on the link line, system defaults are used for the nonspecified address. If a given address is not properly aligned, the linker rounds the value to the applicable boundary. If inappropriate addresses are chosen, such as addresses for the text and data segments that are too far apart, linking may fail. Alternatively, linking may succeed, but execution can abnormally terminate if addresses are incompatible with the system memory configuration.

The linker option -B, which specifies a placement for the bss segment, is available for partial links only. For executable objects, the bss segment should be contiguous with the data segment, which is the system default. As a general rule, the -B option should not be used.

Another mechanism permits address selection for shared libraries. A registry file, by default named so_locations, stores shared library segment addresses and sizes. The so_locations directives, described in the Programmer's Guide, can be used to control the linker's address selection for shared libraries.

2.3.3.2    TASO Address Space

The TASO (Truncated Address Space Option) address space is a 32-bit address-space emulation that is useful for porting 32-bit applications to 64-bit Alpha systems. Selection of the -taso linker option causes object file segments to be loaded into the lower 31 bits of the memory space. This can also be accomplished, in part, by using -T and -D. If the -taso option is used in conjunction with the -T or -D options, the addresses specified with -T and -D take precedence.

Use of the -taso option also causes shared libraries linked outside the 31-bit address space to be appropriately relocated by the loader. All executable objects and shared libraries will be mapped to the address range 0x0 - 0x7fffffff.

The default segment addresses for a TASO executable are 0x12000000 for the text segment and 0x14000000 for the data segment, with the bss segment directly following the data segment. The -T and -D options can be used to alter the segment placement if necessary.

Figure 2-6 is a diagram of the TASO address space layout.

Figure 2-6:  TASO Address Space Layout

A TASO shared object is marked as such with the RHF_USE_31BIT_ADDRESSES flag in the DT_FLAGS entry in the dynamic header. The loader recognizes dynamic executable objects marked with the TASO flag and maps their shared library dependencies to the TASO address space. A TASO static executable is not explicitly identified in object file structures.

2.3.3.2.1    Runtime Identification of TASO programs

---

Version Note

Identification of TASO programs at runtime is only supported in Tru64 UNIX V5.1B and greater.

---

For runtime identification of programs running in the TASO address space the __EXEC_FLAG_TASO flag is set in the linker-defined __EXEC_FLAGS symbol. This symbol is only defined for executables. Shared library code that attempts to access this symbol should define a preemptable local definition of __EXEC_FLAGS that will be used when the shared library is used with executables built prior to Tru64 UNIX V5.1B. The sample code below illustrates how to define this "dummy" symbol in assembly and how to test for TASO programs in C code.

Assembly code:

#include <filehdr.h>
        .set noat
        .set noreorder
        .globl __EXEC_FLAGS
__EXEC_FLAGS=__EXEC_FLAG_UNKNOWN

C code:

#include <filehdr.h>
extern unsigned long __EXEC_FLAGS;

istaso(){
    if (((unsigned long)&__EXEC_FLAGS) & __EXEC_FLAG_UNKNOWN)
        printf("Old executable.  Taso attribute is unknown\n");
    else if (((unsigned long)&__EXEC_FLAGS) & __EXEC_FLAG_TASO)
        printf("Program runs in TASO address space.\n");
    else
        printf("Program does not run in TASO address space.\n");
}

2.3.4    GP (Global Pointer) Ranges

Programs running on Tru64 UNIX obtain the addresses of procedures and global data by means of a GP (Global Pointer) and an address table. Address ranges and address-table sections (.lita and .got) are described further in Section 3.3.2 and Section 14.3.3. However, several important pieces of information concerning GP-relative addressing are contained in the headers.

During program execution, the global pointer register ($gp) contains the active GP value. This value is used to access run-time addresses stored in the image's address-table section. Addresses are specified in generated code as an offset to the GP.

There are several reasons for using this GP-relative addressing technique:

• Alpha instructions support only 16-bit relative addressing, but the generated code must be able to quickly and efficiently access arbitrary 64-bit addresses.

• The generated code must be position independent.

• The addressing method must support symbol preemption (see Section 14.3.4).

A GP range is the set of addresses reachable from a given GP. The size of this range is approximately 64KB, or 8K 64-bit addresses.

Although only one GP value is active at any time, a program can use several GP values. A program's text can be divided into ranges of addresses with a different GP value for each range. The linker will start a new GP range at a boundary between two input object file's section contributions. As a result, a GP range will rarely be filled before a new GP range is started. Regardless of how much of a GP range is actually used, the linker always sets the GP value associated with that range as follows:

  GP value = GP range start address + 32752


Figure 2-7 is a depiction of the use of GP values and ranges.

Figure 2-7:  GP (Global Pointer) Ranges

Objects can share a GP range, as shown in Figure 2-7, or use more than one GP range, depending on the amount of program data. However, the Calling Standard for Alpha Systems specifies that a single procedure can use only one GP value. The a.out header's gp_value field contains either the GP value of the object (if there is only one) or the first one the program should use (if there are multiple GP ranges).

How the number of GP ranges is represented in an object depends on the object's type:

• For objects with a .lita section, the section header field s_nlnnoptr indicates the number of GP ranges, as explained in Section 2.2.3.

• In a relocatable object ( OMAGIC file), a new GP range is signaled by a R_GPVALUE relocation entry. See Section 4.3.4.18 for details.

• In shared objects, multiple GP ranges are indicated by entries in the dynamic header section (.dynamic), which are described in Section 14.2.1.

2.3.5    Alignment

Alignment is an architectural issue that must be dealt with in the object file at several levels: object file segments, object file sections, and program variables all have alignment requirements.

Data alignment refers to the rounding that must be applied to a data item's address. For natural alignment, a data item's address must be a multiple of its size. For example, the natural alignment of a character variable is one byte, and the natural alignment of a double-precision floating-point variable is 8 bytes.

On Alpha systems, all data should be aligned on proper boundaries. Unaligned references can result in substantially slower access times or cause fatal errors. The compiler and the user have some control over the alignments through the use of assembler directives and compilation flags (see the Programmer's Guide and Assembly Language Programmer's Guide). When designing alignment attributes, however, the architectural cost of loading unaligned values should be considered.

Object file segments are, by default, aligned as indicated in Section 2.3.2. Segment alignment can be impacted by section alignment. The segment alignment must be evenly divisible by the highest alignment factor for sections contained in that segment.

For shared libraries that are not mapped at their quickstart addresses the loader will map segments with a minimum alignment of 8K bytes. If any section in the shared library requires an alignment greater than 8K bytes, the loader will map the text segment with 64K byte alignment. The linker is responsible for assigning segment addresses with a distance that is a 64K byte multiple. This will allow the loader to align the data segment address which is mapped at a fixed distance from the text segment.

Object file sections may have a power-of-two alignment factor specified in their section headers (see Section 2.2.3). The default section alignment is 16 bytes.

---

Version Note

Power-of-two section alignment is supported in object format V3.13 and greater for Tru64 UNIX V5.1 and greater.

---

The default alignment boundary for raw data is 16 bytes. Smaller alignments can be applied to individual data items allocated in raw section data. If a data item must be aligned with greater than 16 byte alignment, the section in which it is allocated must be aligned with a power-of-two alignment factor that is greater than or equal to the data item's required alignment.

Compilers and assemblers should align section raw data to either 8 or 16 byte boundaries in the object file. The linker will pad sections in the output object to achieve the maximum section alignments specified in the input objects. If the compiler adds this padding prior to linking then much space will be wasted in the resulting linked object file.

Individual data items should meet the following minimum requirements. Structure members and array elements are aligned according to the minimum requirements in order to minimize pad bytes between members. Other data items are typically aligned with 8 or 16 byte rounding due to alignment requirements imposed by the generated code used to access data addresses.

• Atomic data items are aligned using natural alignment.

• Structures are aligned based on the size of their largest member.

• Arrays are aligned according to the alignment requirements of the array element.

• Procedures are aligned on a 16-byte (quadruple instruction word) boundary. This preserves the integrity of multiple-instruction issue established by the instruction scheduling phase of code generation.

• Common storage class symbols must be aligned when they are allocated. The value field for a common storage class symbol indicates its size and determines which section it will be allocated in (.bss or .sbss). The alignment field for the common storage class symbol indicates the required power-of-two alignment biased by 2^3. If alignment is zero, the default alignment is based on the symbol's size. Common storage class symbols with a size of 16-bytes or greater are aligned to octaword (16-byte) boundaries, otherwise they are aligned to quadword (8-byte) boundaries. The maximum alignment supported for allocating common storage class symbols is 64K bytes. This is represented in the alignment field as the value "13".

• The alignment field should be set for any externally defined symbol that requires non-default alignment. If the alignment field is not set, post-link modification tools will not preserve the alignment of the symbol.

---

Version Note

The definition of a power-of-two alignment field in external symbol table entries is supported in Tru64 UNIX V5.1 and greater. Objects built by compilers that do no support the alignment field will appear to have the alignment set to 0 which will yield the desired default behavior.

---

Sections are padded wherever necessary to maintain proper alignment. Padding is done with zero bytes in the data and bss sections. In the text segment, each routine is padded with NOP instructions to a 16-byte boundary. The section sizes reported in the section headers and the segment sizes reported in the a.out header reflect this padding.

2.3.6    Section Types

The primary unit of an object file is a section, and the sections in an object are identified, located, and broadly characterized by means of the section headers. Object files are organized into sections primarily to enable the linker to combine multiple input objects into an executable image. At link time, sections of the same type are concatenated or merged. The sectional breakdown also provides the linker flexibility in segment mapping; the linker has a choice in assigning sections to segments for memory-mapping and loading.

Section headers include flags that describe the section type. These flags identify the section type and attributes. See Table 2-7 for a complete listing of section flags. Note that the s_flags field cannot be treated as a simple bit vector when testing or accessing section types because some of the flag values are overloaded. The algorithm below illustrates how to test for a particular section type using the s_flags field.

if (type & STYP_EXTMASK)
    FOUND = ((SHDR.s_flags & STYP_EXTMASK) == type)
else
    FOUND = (SHDR.s_flags & type)

Sections can be mapped or unmapped. A mapped section is one that is part of the process image as well as the object file. An unmapped section is present only in the on-disk object file.

Raw data, organized by section and segment, is part of the process image. For a ZMAGIC file, all header sections in the object are also mapped into memory as part of the text segment.

2.3.7    Special Symbols

Some special symbol names are reserved for use by the linker or loader. The majority of these special symbols correspond to locations in the image layout.

Table 2-8 describes the special symbols and indicates whether they are reserved for the linker or the loader. Additional special symbols for debug information are described in Section 11.3.4.

Table 2-8:  Special Symbols

Table Notes:

1. These symbols are not defined under strict ANSI standards. They are weak symbols that are retained for backward compatibility. See Section 14.3.4.2 for further discussion of weak aliasing to strong symbols.

2. These symbols relate to the run-time procedure table, which is a table of runtime_pdr structures (their declaration is in the header file sym.h). The table is a subset of the procedure descriptor table portion of the symbol table with one unused field, exception_info, that is set to zero. The run-time procedure table is maintained for historical reasons. It is not used by the system's exception handling software, nor any other Tru64 UNIX run-time support.

3. These symbols are recorded as scAbs symbols in the external symbol table, but their values are relocatable addresses that are not absolute values in a shared library. This misclassification is maintained partly for historical reasons, and partly because the values of these symbols cannot be described as an offset within a specific section. The equivalent dynamic symbol table entries identify these symbols as text ( SHN_TEXT) or data symbols ( SHN_DATA) rather than absolute symbols ( SHN_ABS).

   ---

   Version Note

   Prior to Tru64 UNIX V5.1 the system linker records these symbols as absolute symbols ( SHN_ABS) in the dynamic symbol table, and they are not relocated correctly by the dynamic loader.

   ---

The linker defines special symbols only if they are referenced.

The majority of these symbols have local binding in a shared object's dynamic symbol table. Consequently, a shared object can only reference its own definition of these symbols. However, several special symbols have global scope. The linker-defined symbols end, _end, __istart, and _cobol_main are global, which implies that each has a unique value process-wide. The symbol _end and its weak counterpart end are used by libc.so to identify the start of the heap in memory. The symbol _cobol_main gives a COBOL program's main entry point.

Special symbols in addition to those listed in Table 2-1 are defined by the linker to represent object file section addresses:

$ cat gprange.c
#include <stdio.h>
#include <excpt.h>

extern unsigned long _gpinfo[];
extern unsigned long _ftext;
extern unsigned long _fdata;

main(){
    int i;
    unsigned long tstart, tend;
    unsigned long gpval;

    if (!_gpinfo || _gpinfo[0] != GPINFO_MAGIC) {
        printf("No GP range info\n");

    } else {
        for (i=1; _gpinfo[i] != GPINFO_LAST; i+=3){

            tstart = (unsigned long)&_ftext + _gpinfo[i];
            tend = tstart + _gpinfo[i+1];

            gpval = (unsigned long)&_fdata + _gpinfo[i+2];

            printf("GP=0x%lx for Text Range [0x%lx - 0x%lx]\n",
                   gpval, tstart, tend);
        }
    }
}

$ cc gprange.c
$ a.out
GP=0x1400080c0 for Text Range [0x120000fe0 - 0x120001440]
