11    Symbol Information

This chapter focuses on the symbol table data used to represent a program's symbols and the scopes in which they occur. This information is primarily used by symbolic debuggers.

11.1    New or Changed Symbol Information Features

Tru64 UNIX V5.1B includes the following new or changed features:

• New basic types for boolean and wchar_t (see Table 11-4).

• A new representation of C++ using directives for global symbols (see Section 11.3.1.5.4).

Tru64 UNIX V5.1 includes the following new or changed features:

• A new basic type for 32-byte complex (see Table 11-4).

• A new representation for empty classes or structures (see Section 11.3.3.6.1) to distinguish them from opaque classes and structures (see Section 11.3.3.6.2).

Version 3.14 of the symbol table includes the following new or changed features:

• local symbols with external linkage (see Section 11.3.1.1)

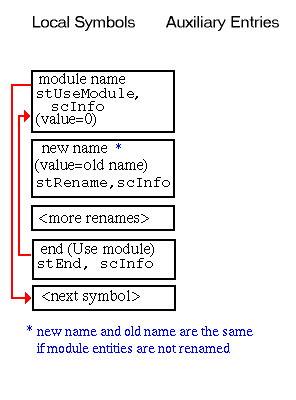

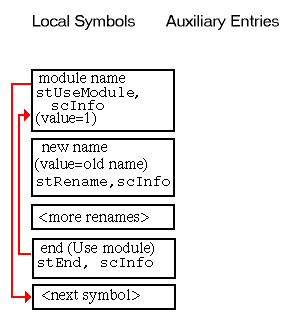

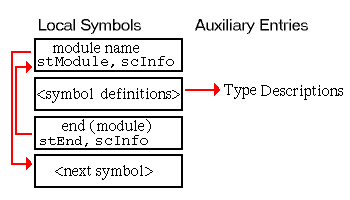

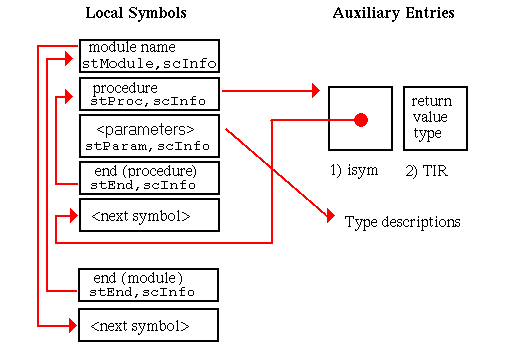

• Fortan 90 modules (see Section 11.3.1.6)

Version 3.13 of the symbol table includes the following new or changed features:

• 64-bit auxiliary support (see Section 11.3.2.3)

• Parameters with static storage and unallocated parameters (see Section 11.2.4)

• New representation for procedures with no text (see Section 11.3.1.2)

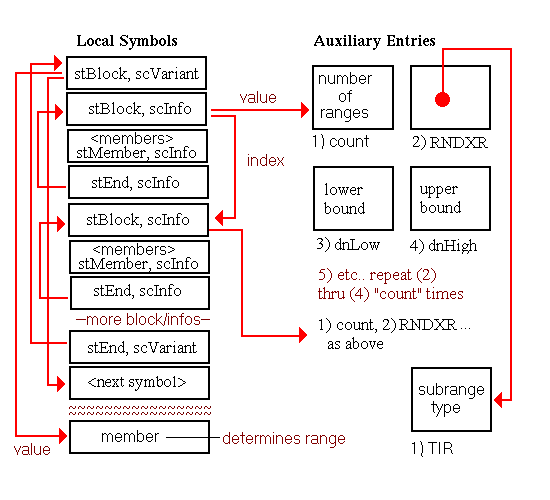

• Modified variant record representation (see Section 11.3.3.11)

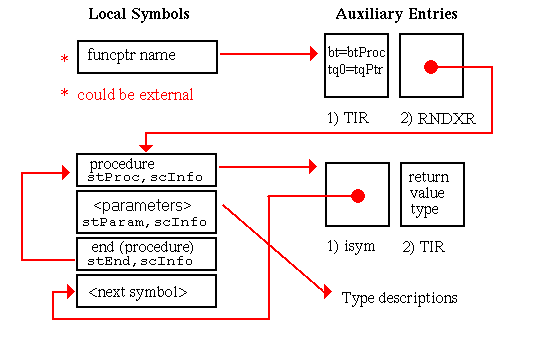

• New function pointer representation (see Section 11.3.3.5)

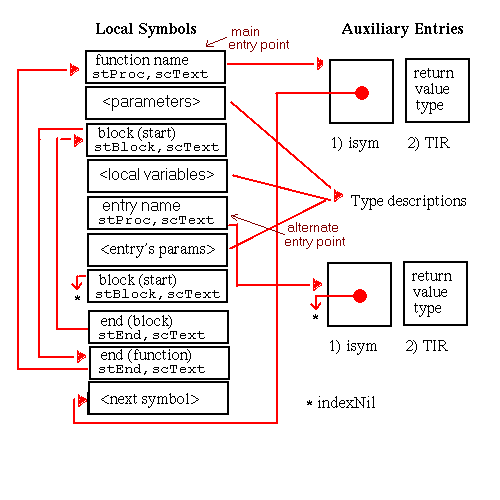

• Block symbol added for alternate entry prologue size (see Section 11.3.1.9)

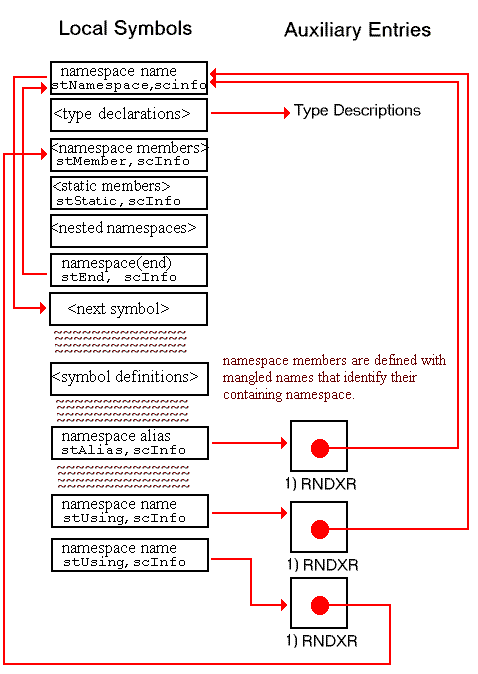

• New representation for C++ namespaces (see Section 11.3.1.5)

• Unnamed union or structure representation (see Section 11.3.3.3)

11.2    Structures, Fields, and Values for Symbol Information

Unless otherwise specified, all structures described in this section are declared in the header file sym.h, and all constants are defined in the header file symconst.h.

11.2.1    Local Symbol Entry (SYMR)

typedef struct {
        coff_long       value;
        coff_int        iss;
        coff_uint       st : 6;
        coff_uint       sc  : 5;
        coff_uint       reserved : 1;
        coff_uint       index : 20;
} SYMR, *pSYMR;

SIZE - 16 bytes, ALIGNMENT - 8 bytes

See Section 11.2.4, Section 8.3, and Section 11.3.3 for related information.

Local Symbol Table Entry Fields

value

A field that can contain an address, size, offset, or index. Its interpretation is determined by the symbol type and storage class combination, as explained in Section 11.2.4.

iss

Byte offset from the issBase field of a file descriptor table entry to the name of the symbol. If the symbol does not have a name, this field is set to issNil (-1). Generally, all user-defined symbols have names. A symbol without a name is one that has been created by the compilation system for its own use.

st

Symbol type (see Table 11-1).

sc

Storage class (see Table 11-2).

reserved

Must be zero.

index

An index into either the local symbol table or auxiliary symbol table, depending on the symbol type and class. The index is used as an offset from the isymBase field in the file descriptor entry for an entry in the local symbol table or an offset from the iauxBase field for an entry in the auxiliary symbol table.

The index field may have a value of indexNil, which is defined as (long)0xfffff. This value is used to indicate that the index is not a valid reference.

The next two tables contain all defined values for the st and sc constants, along with short descriptions. However, these fields must be considered as pairs that have a limited number of possible pairings as explained in Section 11.2.4.

Table 11-1:  Symbol Type (st) Constants

General Notes:

Symbol type codes with more than one interpretation are identified by the lang field in the associated file descriptor. This applies to the stModule/ stNamespace symbol types.

Table 11-2:  Storage Class (sc) Constants

Table 11-3:  Use Module Constants

---

Version Note

Fortran modules are supported in symbol table format V3.14 and greater.

---

11.2.2    Auxiliary Symbol Table Entry (AUXU)

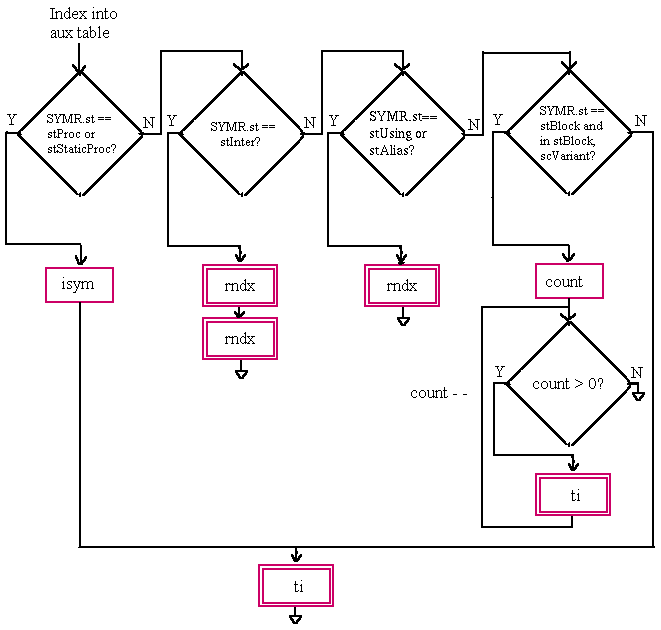

The auxiliary symbol table entry is a 32-bit union. It is either interpreted as a TIR or RNDXR structure or as an integer value. See Section 11.3.2.3 for detailed instructions on reading the auxiliary symbols.

typedef union {
        TIR             ti;
        RNDXR           rndx;
        coff_int        dnLow;
        coff_int        dnHigh;
        coff_int        isym;
        coff_int        iss;
        coff_int        width;
        coff_int        count;
        coff_int        slice;    (V5.0A)
} AUXU, *pAUXU;

SIZE - 4 bytes, ALIGNMENT - 4 bytes

See Section 11.3.2.3 for related information.

Auxiliary Symbol Table Entry Fields

ti

Type information record (TIR), as defined in Section 11.2.2.1.

rndx

Relative index into local or auxiliary symbols (rndx), as defined in Section 11.2.2.2.

dnLow

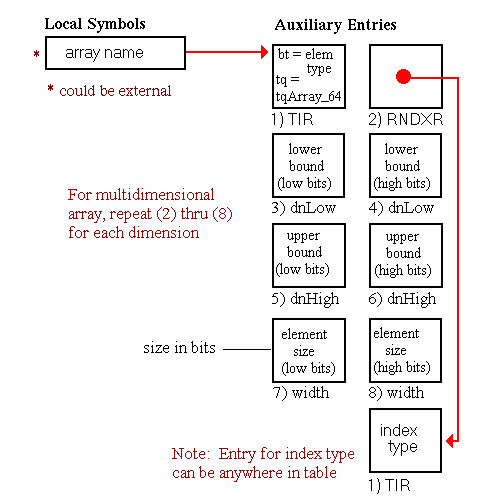

Lower bound of range or array dimension. For large structures, two of these fields can be used together to form one 64-bit number.

dnHigh

Upper bound of range or array dimension. For large structures, two of these fields can be used together to form one 64-bit number.

isym

For procedures ( stProc or stStaticProc symbols), this field is an index into the local symbols. It is also used as an index into the relative file descriptors.

iss

Unused.

width

Width of a bit field or array stride in bits. Fortran compilers set the array stride to the array element size in bits. Two of these fields can be used together to form one 64-bit number.

count

Count of ranges for variant arm. This field name is only used within the type description of a variant block ( stBlock, scVariant).

slice

Reserved.

General Notes:

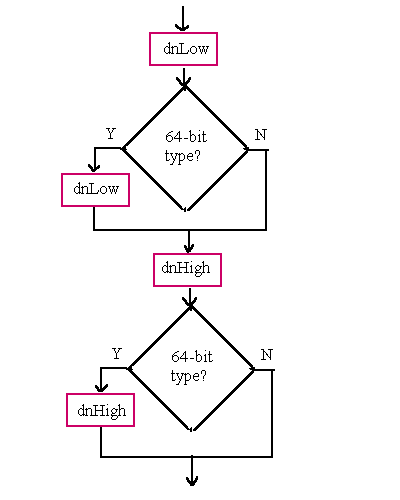

The fields dnLow, dnHigh, or width must all use either the 32-bit or 64-bit representation when used together. For example, an array dimension cannot be specified with a 32-bit dnLow and a 64-bit dnHigh.

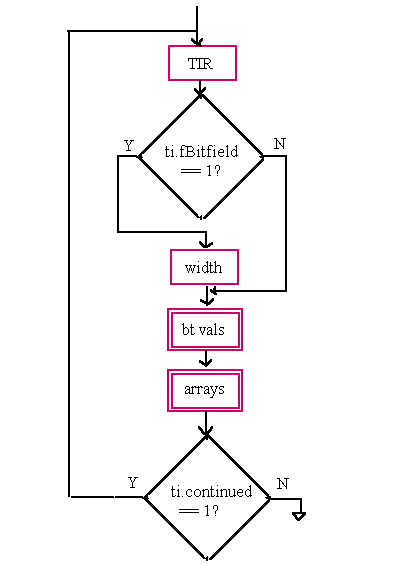

11.2.2.1    Type Information Record (TIR)

typedef struct {
        coff_uint       fBitfield : 1;
        coff_uint       continued : 1;
        coff_uint       bt  : 6;
        coff_uint       tq4 : 4;
        coff_uint       tq5 : 4;
        coff_uint       tq0 : 4;
        coff_uint       tq1 : 4;
        coff_uint       tq2 : 4;
        coff_uint       tq3 : 4;
} TIR, *pTIR;

SIZE - 4 bytes, ALIGNMENT - 4 bytes

Type Information Record Entry Fields

fBitfield

Flag set if bit width is specified.

continued

Flag set to indicate that the type description is continued in another TIR record. This will happen if the type is represented with more than six type qualifiers.

bt

Basic type (see Table 11-4 and Section 11.3.2.1).

tq0, tq1, tq2, tq3, tq4, tq5

Type qualifiers (see Table 11-5 and Section 11.3.2.2). The lower-numbered tq fields must be used first, and all unneeded fields must be set to tqNil (0).

Table 11-4:  Basic Type (bt) Constants

Table Notes:

1. btInt and btLong32 are synonymous.

2. btUInt and btULong32 are synonymous.

3. btLong, btLong64, btLongLong, and btInt64 are synonymous.

4. btULong64, btULongLong, and btUInt64 are synonymous.

Table 11-5:  Type Qualifier (tq) Constants

11.2.2.2    Relative Index Record (RNDXR)

typedef struct {
        coff_uint       rfd : 12;
        coff_uint       index : 20;
} RNDXR, *pRNDXR;

SIZE - 4, ALIGNMENT - 4

Relative Index Record Fields

rfd

Index into relative file descriptor table if it exists; otherwise, index into file descriptor table.

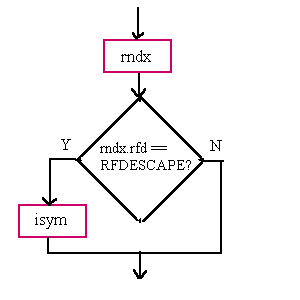

This field may have a value of ST_RFDESCAPE, defined as 0xfff in the header file cmplrs/stsupport.h. This value is used to indicate that the next auxiliary entry, interpreted as an isym, contains the actual rfd index.

index

Symbol index. Used as an offset from either FDR.isymbase or FDR.iauxbase, depending on context.

11.2.3    String Table

Objects can contain two string tables: the local string table (corresponding to local symbols) and the external string table (corresponding to external symbols). The local string table is present only for objects created with full debugging information; it is removed if an object is locally stripped.

The storage format for the string tables is a list of null-terminated character strings. It is correctly considered as one long character array, not an array of strings. Fields in the symbolic header and file headers represent string table sizes and offsets in bytes.

11.2.4    Symbol Type Combinations

Entries in the symbol table are primarily identified by the combination of their symbol type (st) and storage class (sc) values. Not all combinations are valid. Figure 11-1 indicates which combinations are currently in use.

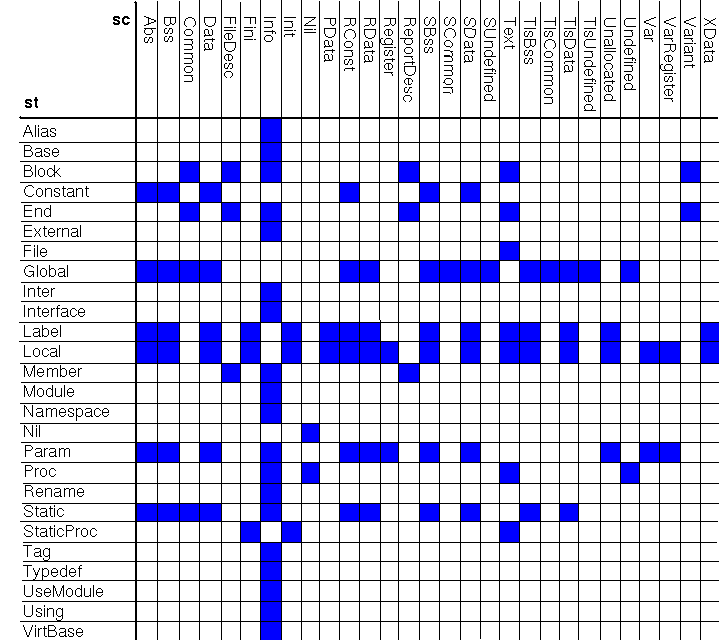

Figure 11-1:  st/sc Combination Matrix

A symbol's type and class taken together determines interpretation of other fields in the symbol table entry. The same combination can be used for different purposes in different contexts. As a result, to understand the symbol entry, it also may be necessary to access type information in the auxiliary table or the source language information in the file descriptor.

The contents of the value and index fields for each combination, with a brief explanation of the symbol's use, are described in the following list of combinations. For many combinations, greater detail can be found in Section 11.3.2 and Section 11.3.3.

stGlobal/ scAbs

• The value field contains an absolute value.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a global absolute value.

stGlobal/ scSData, stGlobal/ scData, stGlobal/ scSBss, stGlobal/ scBss, stGlobal/ scRData, stGlobal/ scRConst

• The value field is the symbol's address.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a defined global variable.

stGlobal/ scTlsData, stGlobal/ scTlsBss

• The value field is the offset from the base of the object's TLS region.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a defined global TLS variable.

stGlobal/ scSCommon, stGlobal/ scCommon, stGlobal/ scTlsCommon

• The value field is the symbol's size in bytes.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a common.

stGlobal/ scSUndefined, stGlobal/ scUndefined, stGlobal/ scTlsUndefined

• The value field is zero in linked objects. In relocatable objects, the value field is ignored. (Some compilers store the size in bytes of the global variable in the value field.)

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is an undefined global variable.

stStatic/ scAbs

• The value field is an absolute value.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is an absolute value with static scope.

stStatic/ scSData, stStatic/ scData, stStatic/ scSBss, stStatic/ scBss, stStatic/ scRData, stStatic/ scRConst

• The value field is the symbol's address.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a defined static variable.

stStatic/ scTlsData, stStatic/ scTlsBss

• The value field is an offset from the base of the object's TLS region.

• The index field is an auxiliary table index or indexNil if there is no type information.

• This symbol is a defined static TLS variable.

stStatic/ scCommon

• The value field is zero.

• The index field is an auxiliary table index or indexNil if there is no type information.

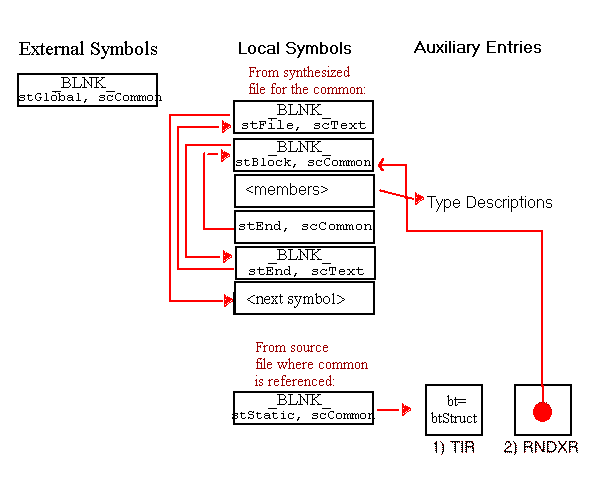

• This symbol is a Fortran common block.

stStatic/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

• This symbol is a C++ static data member.

stParam/ scAbs

• The value field is an offset from the virtual frame pointer.

• The index field is an auxiliary table index.

• This symbol is a parameter stored on the stack.

stParam/ scRegister

• The value field is the number of the register containing the parameter.

• The index field is an auxiliary table index.

• This symbol is a parameter stored in a register.

stParam/ scVar

• The value field is an offset from the virtual frame pointer to the parameter's address.

• The index field is an auxiliary table index.

• This symbol is a parameter stored on the stack. One level of indirection is required to access the parameter's value.

stParam/ scVarRegister

• The value field is the register number containing the address of the parameter.

• The index field is an auxiliary table index.

• This symbol is a parameter stored on the stack. One level of indirection is required to access the parameter's value.

stParam/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

• This symbol is a parameter of a C++ member function, function pointer definition, or procedure with no code.

stParam/ scSData, stParam/ scData, stParam/ scSBss, stParam/ scBss, stParam/ scRData, stParam/ scRConst

• The value field is the address of the parameter.

• The index field is an auxiliary table index.

• This symbol is a static parameter.

---

Version Note

Static parameters are supported in symbol table format V3.13 and greater.

---

stParam/ scUnallocated

• The value field is zero.

• The index field is an auxiliary table index.

• This is an unallocated parameter.

stLocal/ scAbs

• The value field is an offset from the virtual frame pointer.

• The index field is an auxiliary table index.

• This is a local variable stored on the stack.

stLocal/ scRegister

• The value field is the number of the register containing the variable.

• The index field is an auxiliary table index.

• This symbol is a local variable stored in a register.

stLocal/ scVar

• The value field is an offset from the virtual frame pointer to the symbol's address.

• The index field is an auxiliary table index.

• This symbol is a local variable stored on the stack. One level of indirection is required to access its value.

stLocal/ scVarRegister

• The value field is the register number containing the address of this variable.

• The index field is an auxiliary table index.

• This symbol is a local variable stored on the stack. One level of indirection is required to access its value.

stLocal/ scUnallocated

• The value field is zero.

• The index field is an auxiliary table index.

• This is an unallocated local variable.

---

Version Note

The use of scUnallocated is supported in symbol table format V3.13 and greater.

---

stLocal/ scText, stLocal/ scInit, stLocal/ scFini, stLocal/ scSData, stLocal/ scData, stLocal/ scSBss, stLocal/ scBss, stLocal/ scRData, stLocal/ scRConst, stLocal/ scTlsData, stLocal/ scTlsBss

• The value field is the address of the section indicated by the storage class.

• The index field is indexNil.

• These are special symbols inserted by the linker for shared objects. They are found in the external symbol table and their names are the section names (for example, .text or .init).

stLabel/ scAbs

• The value field is the symbol's value. This may be either a numeric constant or absolute address.

• The index field is indexNil.

• This symbol is a linker defined absolute symbol.

stLabel/ scText, stLabel/ scInit, stLabel/ scFini, stLabel/ scSData, stLabel/ scData, stLabel/ scXData, stLabel/ scPData, stLabel/ scSBss, stLabel/ scBss, stLabel/ scRData, stLabel/ scRConst, stLabel/ scTlsData, stLabel/ scTlsBss

• The value field is the label's value (an address).

• The index field is indexNil.

• This symbol is an allocated label. It can be associated with any raw data section of the object file.

stLabel/ scUnallocated

• The value field is zero.

• The index field is indexNil.

• This symbol is an unallocated label.

stProc/ scNil

• The value field is zero.

• The index field is indexNil.

• This symbol can be ignored. Compilers may produce this type/class combination for procedures that have been optimized away and that don't require debug information. The linker removes these symbols from the external symbol table in linked objects.

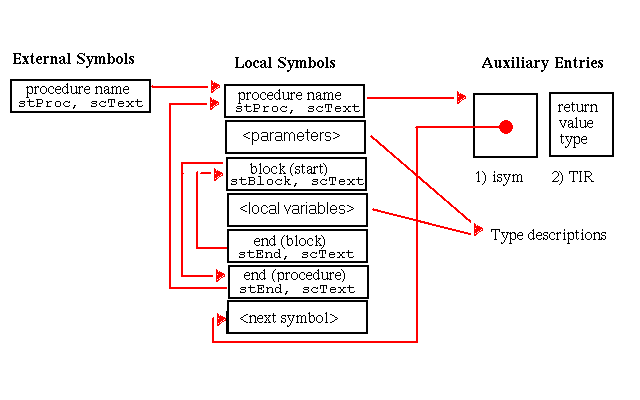

stProc/ scText

• The value field is the procedure's address.

• This symbol can occur in the external or local symbol table:

  • In the local symbol table, the index field is an auxiliary table index.

  • In the external symbol table, it is the local symbol index of the corresponding procedure symbol in the local symbol table, unless the file is stripped of local symbol information. If the file is locally stripped, the index field is indexNil.

• This symbol is a defined procedure.

stProc/ scUndefined

• The value field is zero.

• The index field is indexNil.

• This symbol is an undefined procedure.

stProc/ scInfo

• The value field contains a value of:

  • -1 (a procedure with no code)

  • -2 (a function prototype or function pointer definition)

  • A non-negative index into the virtual function table for this function, for a C++ virtual member function.

  ---

  Version Note

  The use of -1 and -2 in the value field is supported in symbol table format V3.13 and greater.

  ---

• The index field is an auxiliary table index.

• This symbol represents a procedure without code, a function prototype, or a function pointer. The value field is used to distinguish among these possibilities.

stBlock/ scText

• The value field depends on context:

  • If this is the first stBlock/ scText symbol following an stProc/ scText symbol, the value is the byte offset from the procedure's address to the address of the first instruction beyond the end of the procedure's prologue.

  • Otherwise, it is the byte offset from the procedure's address to the starting instruction address of the block.

• The index field is the local symbol index of the symbol following the matching stEnd. If this is the first stBlock/ scText following an stProc/ scText for an alternate entry point, the index field will be set to indexNil because the symbol will not have a matching stEnd symbol.

  ---

  Version Note

  The use of stBlock/ scText for alternate entry points is supported in symbol table format V3.13 and greater.

  ---

• This symbol indicates the start of a block scope.

stBlock/ scInfo

• The value field depends on context:

  • Size in bytes for a class, structure, or union.

  • Size of the underlying data type for an enumerated type.

  • Auxiliary table index for a variant record.

  • Zero for the block scope of a procedure with no code.

• The index field is the local symbol index of the symbol following the matching stEnd.

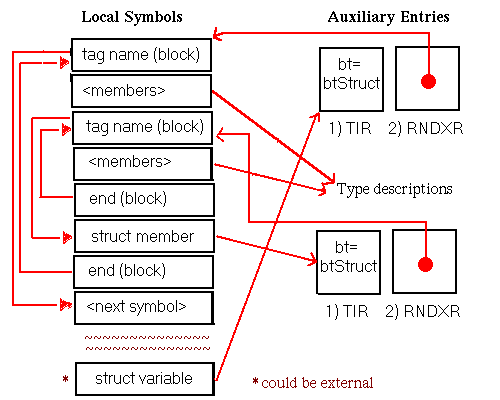

• This symbol indicates the start of a structure, union, or enumeration definition (in C; the C++ representation differs). It describes a variant arm if it is inside an stBlock/ scVariant scope. This symbol is also used to define the block scope of a procedure with no code.

stBlock/ scCommon

• The value field is the size of the common block in bytes.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol is a scoping symbol for a Fortran common block. It occurs in the context of the synthesized file used to define a common block.

stBlock/ scVariant

• The value field is the local symbol index of the structure member whose value determines which variant range is used.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol occurs in the context of Pascal and Ada variant records. It indicates the start of the symbols for one variant.

stBlock/ scFileDesc, stBlock/ scReportDesc

• The value field is zero.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol occurs in COBOL only. It indicates the start of the file or report descriptor scope.

stEnd/ scText

• The value field depends on the type of scope it is ending. It is:

  • The size in bytes of the procedure's text (for a procedure).

  • Byte offset from a procedure's address to the start of the epilogue (for the outermost text block in a procedure).

  • Byte offset from a procedure's address to the first instruction address beyond the end of the block (for a text block).

  • Zero (for a file).

• The index field is the local symbol index of the matching stBlock, stProc, or stFile.

• This symbol ends a file, procedure, or text block scope.

stEnd/ scInfo

• The value field is zero.

• The index field is the local symbol index of the matching stBlock or stNamespace.

• If the matching symbol is an stBlock, this symbol ends a structure, union, enumeration, C++ member function definition, procedure with no code, or the block scope contained by a procedure with no code. If the matching symbol is an stNamespace, this symbol ends a namespace definition. If the matching symbol is an stModule, this symbol ends a module definition. If the matching symbol is an stUseModule, this symbol ends a module use definition. If the matching symbol is an stInterface, this symbol ends a generic interface declaration.

stEnd/ scCommon

• The value field is zero.

• The index field is the local symbol index of the matching stBlock.

• This symbol ends a Fortran common definition.

stEnd/ scVariant

• The value field is the same as that of the matching stBlock.

• The index field is the local symbol index of the matching stBlock.

• This symbol ends a variant record block.

stEnd/ scFileDesc, stEnd/ scReportDesc

• The value field is zero.

• The index field is the local symbol index of the matching stBlock.

• This symbol ends a file or report descriptor block.

stMember/ scInfo

• The value field depends on the symbol's data type:

  • The ordinal value (for an element of an enumerated type).

  • Zero (for a namespace or union member).

  • Bit offset from the beginning of the structure (for a C structure or C++ class member).

• The index field is an auxiliary table index.

• This symbol describes a data structure field or the member of a namespace. It is found inside a block defining a data structure (for example, class or struct) or a namespace definition block.

stMember/ scFileDesc, stMember/ scReportDesc

• The value field is zero or one, depending on whether the symbol is local or external, respectively.

• The index field is an auxiliary table index.

• This symbol occurs in COBOL only. It is found inside a file descriptor or report descriptor block.

stTypedef/ scInfo

• The value field depends on the purpose of this symbol:

  • Zero (for a user-defined type definition).

  • The auxiliary table index of the next auxiliary entry after the start of the class definition (for a compiler-inserted symbol). In effect, the value is the contents of the index field plus one.

• The index field is an auxiliary table index.

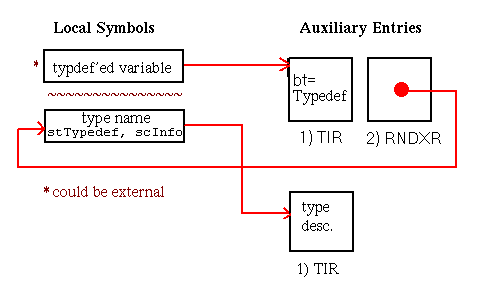

• This symbol is a user-chosen name for a data type. It also appears as a compiler-inserted symbol following the stTag/ scInfo symbol for a C++ opaque class or structure.

stFile/ scText

• The value field is zero.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol denotes the scoping block for a source file.

stStaticProc/ scText

• The value field is the procedure's address.

• The index field is an auxiliary table index.

• This symbol is a defined static procedure.

stStaticProc/ scInit, stStaticProc/ scFini

• The value field is the procedure address.

• The index field is an auxiliary table index.

• These combinations are used for the special symbols __istart and __fstart, which are inserted by the linker.

stConstant/ scAbs

• The value field is the value of the constant.

• The index field is an auxiliary table index.

• This symbol represents a named value (for example, Fortran PARAMETER).

stConstant/ scSData, stConstant/ scData, stConstant/ scSBss, stConstant/ scBss, stConstant/ scRData, stConstant/ scRConst

• The value field is the symbol's address.

• The index field is an auxiliary table index.

• This symbol represents allocated constant data.

stBase/ scInfo

• The value field is the offset of the base class relative to a derived class.

• The index field is an auxiliary table index.

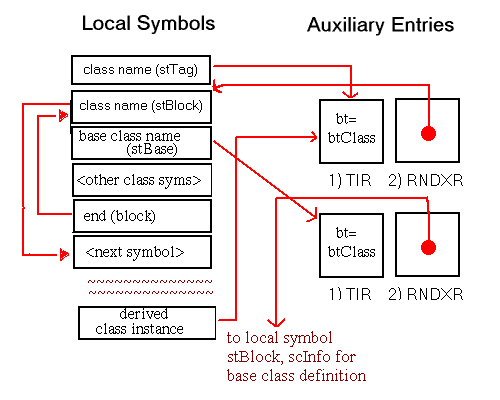

• This symbol is a C++ base class. It is found inside a block defining a data structure (for example, class or struct).

stVirtBase/ scInfo

• The value field is an index (starting at 1) of the base class run-time description in the virtual base class table. See Section 11.3.3.6.3.

• The index field is an auxiliary table index.

• This symbol is a C++ virtual base class. It is found inside a block defining a data structure (for example, class or struct).

stTag/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

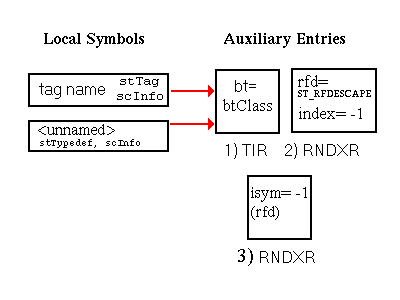

• This symbol is a C++ class, structure, or union. See Section 11.3.3.6. Note that the representation for C structures and unions (Section 11.3.3.3) is different.

stInter/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

• This symbol is used in C++ to connect the definition of a member function with its prototype in the class definition context.

stNamespace/ scInfo

• The value field is zero.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol indicates the start of the symbols in a namespace definition.

---

Version Note

Namespace symbols are supported in symbol table format V3.13 and greater.

---

stModule/ scInfo

• The value field is zero.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol defines a Fortran module.

---

Version Note

Fortran modules are supported in symbol table format V3.14 and greater.

---

stUsing/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

• This symbol specifies a C++ namespace (or portion thereof) that is being imported into another scope.

---

Version Note

Namespace USING directives are supported in symbol table format V3.13 and greater.

---

stAlias/ scInfo

• The value field is zero.

• The index field is an auxiliary table index.

• This symbol defines an alias for a C++ namespace.

---

Version Note

Namespace aliases are supported in symbol table format V3.13 and greater.

---

stExternal/ scInfo

• The value field identifies source language semantics for the declaration type: (0 = language default, 1 = "external", 2 = "extern", 3 = "static", 4 = "global", other = best guess or "external").

• The index field is an auxiliary table index.

• This symbol identifies an external symbol (by name) that is visible in a local scope.

---

Version Note

Local visibility for externals is supported in symbol table format V3.14 and greater.

---

stUseModule/ scInfo

• The value field is either USE_MODULE_ONLY or USE_MODULE_ALL (see Table 11-3).

• The index field is either indexNil or the local symbol index of the symbol following the matching stEnd.

• This symbol identifies a Fortran module (by name) from which symbols are imported and possibly renamed.

---

Version Note

Fortran modules are supported in symbol table format V3.14 and greater.

---

stRename/ scInfo

• The value field is a local string table index identifying the name by which a symbol is referenced in the current scope.

• The index field is issNil.

• This symbol identifies a symbol that is renamed in the current scope. For example, Fortran module members that are renamed in a Fortran USE statement.

---

Version Note

Fortran modules are supported in symbol table format V3.14 and greater.

---

stInterface/ scInfo

• The value field is 0.

• The index field is the local symbol index of the symbol following the matching stEnd.

• This symbol identifies a generic name for a set of procedure declarations, such as a Fortran interface declaration.

---

Version Note

Generic names are supported in symbol table format V3.14 and greater.

---

Combinations may be valid in the local symbol table, the external symbol table, or both. Table 11-6 shows which combinations are valid in which table, based on the symbol type value and also the storage class value where necessary. Only combinations previously specified as valid apply where the storage class value is shown as a wildcard value with the character '*'.

Table 11-6:  Valid Placement for st/sc Combinations

Table Notes:

1. scSCN is a section storage class: scData, scSData, scBss, scSBss, scRConst, scRData, scInit, scFini, scText, scXData, scPData, scTlsData, scTlsBss

11.3    Symbol Information Usage

From a user-program's point of view, an identifer's scope determines its visibility in different parts of the program. Programming languages provide facilities for declaring and defining names of procedures, variables and other program components inside various scoping levels. This section briefly discusses the concept of scope and then explains how it is represented in the symbol table. References are made to structures in the auxiliary symbol table; see Section 11.3.2.3 for details.

Generally speaking, the four main scoping levels in a program are block scope, procedure scope, file scope, and program scope. Most programming languages have constructs to implement at least these scoping levels. Figure 11-2 shows the hierarchy of these scopes.

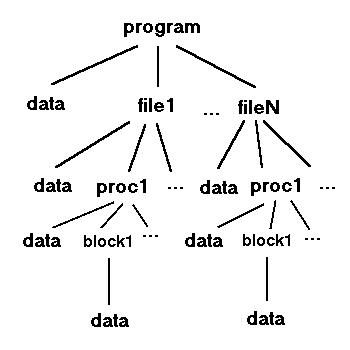

Figure 11-2:  Basic Scopes

Names with block scope can only be referenced inside the declaring block. Blocks are delimited by begin and end markers, the syntax of which varies among languages.

Names with procedure scope are only recognized inside their enclosing subroutines. For instance, the names of formal parameters and local variables declared inside a procedure are accessible only to that procedure's executable statements.

Names with file scope can be referenced by any instruction within the file where they are declared. A file can be composed of procedures and data external to any procedure. Both external data names and procedure names can have file scope or program scope. Note that in a compilation involving only a single file or in a compilation for a programming language with no separate-compilation facilities, file scope and program scope are equivalent.

Names with program scope are visible everywhere in the program, even when the executable program is built from many source and header files. The linker must resolve these names or pass them to the dynamic loader to resolve. See Chapter 13 for more information about symbol resolution.

In the symbol table, procedure scope, file scope, and program scope correspond to local, static, and global symbols, respectively. Block scope names are also local symbols. Local and static symbols appear in the local symbol table, and global symbols are in the external symbol table.

11.3.1.1    Local Symbols with External Linkage

---

Version Note

Local symbols with external linkage are supported in symbol table format V3.14 and greater.

---

Any scope below program scope can import symbols that are defined in program scope. For example, external declarations in C programs import program scope symbols to file, procedure, or block scope. Source language semantics normally limit the use of externally defined symbols to those that are declared within the local scope, but debuggers will assume that all external symbols are visible from any local scope when the symbol table excludes information on external declarations.

If a file descriptor's fullExternals flag is set, debuggers can limit the visibility of externally defined symbols to those with external declarations in that compilation unit.

External declarations are recorded as local symbol table entries with symbol type stExternal and storage class scInfo. If the name being declared is unique to the containing scope (shared only with other instances or copies of that scope), then the name must be mangled in some way. The symbol is known locally by the demangled name, but globally by the mangled name. The rule for demangling the name must be either built into an appropriate language specific demangling module as is done for C++ or known to debuggers on a language specific basis as is done for the Fortran trailing underscore convention.

If there is no corresponding external symbol table entry for an external declaration, then the local name is considered unallocated. This is not necessarily an error.

External declarations may include type information. The local symbol's index field is interpreted as an AUX index. In addition, the symbol's value field provides a hint as to how best to regenerate the source language declaration. See the stExternal/ scInfo entry in Section 11.2.4 for details.

11.3.1.2    Procedure Scope

Although procedure symbols can only be global or static (with symbol types stProc and stStaticProc, respectively), procedure entries appear in the local symbol table to identify the containing scope of their local data. The set of symbols appearing in the local symbol table to describe a procedure scope and their associated auxiliary entries is shown in Figure 11-3. Global procedures also have entries in the external symbol table. As illustrated, the indices of these external entries point to the scoping entries in the local symbol table.

Note

In this chapter, all diagrams of symbol table representations use arrows to show that one entry contains an index to another entry. For external and local symbol table entries, the index used is contained in the index field. For auxiliary symbols, the isym or RNDXR field is the index used. Any exceptions to this general rule are noted in the diagrams.

Figure 11-3:  Procedure Representation

A special instance of a procedure definition occurs for a procedure with no text. This type of procedure occurs only in the local symbol table and is very similar to the representation of other procedures. It is generally used for procedures that have been optimized away that still need to be represented for debugging or profiling information.

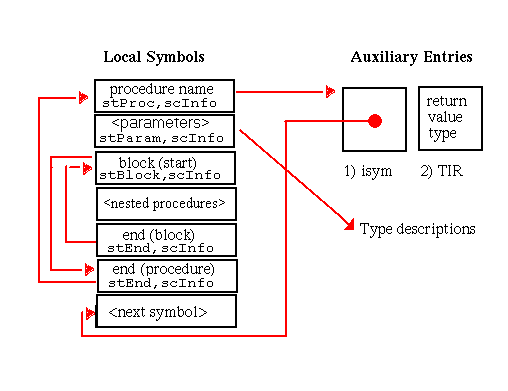

Figure 11-4:  Procedure with No Text

A procedure with no code can contain only nested procedures that also have no code associated with them. If a procedure with no code does not contain any nested procedures, the stBlock/ stEnd symbol pair can be omitted from the representation.

The stProc symbol included in this representation is distinguished from similar stProc symbols by its value field that is set to addressNil (-1).

---

Version Note

Procedures with no code are supported in symbol table format V3.13 and greater.

---

11.3.1.3    File Scope

As in the case of procedures, file name entries appear in the local symbol table to define the file's scope. This representation is shown in Figure 11-5. Note that file symbols appear in the local symbol table only.

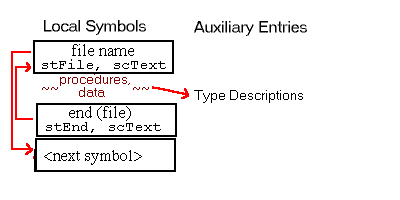

Figure 11-5:  File Representation

11.3.1.4    Block Scope

In general, the local symbol table denotes scoping levels with stBlock and stEnd pairs, as shown in Figure 11-6.

All symbols contained between these two entries belong to the scope they describe. Nested blocks are possible, and stEnd symbols match the most recent occurrences of stBlock (or other opening symbol entries such as stProc or stTag).

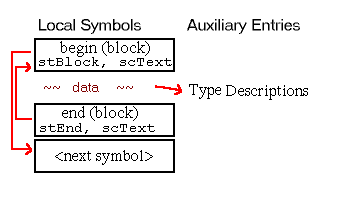

Figure 11-6:  Block Representation

Block scopes occur in many languages. In C, they take the form of lexical blocks. In C++, declarations can occur anywhere in the code. In Pascal and Ada, nested procedures are possible, with local variables at any or all levels.

11.3.1.5    Namespaces (C++)

---

Version Note

Namespaces are supported in symbol table format V3.13 and greater.

---

A C++ namespace is a mechanism that allows the partitioning of the program global name space. This partitioning is intended to reduce name clashing and provide greater program manageability to C++ developers.

Figure 11-7:  C++ Namespace Representation

A namespace definition may exist only at the global scope or within another namespace. The namespace representation in Figure 11-7 shows a single contribution to a namespace. This representation may be replicated many times in the symbol table for a single namespace. A namespace definition may be continued within the same file or over multiple source files.

A single namespace contribution that spans multiple source files is represented as if it were contained entirely within the source file in which it began.

Namespaces may be aliased, allowing a single namespace to be referred to by multiple names. Namespace components may also be referenced without their namespace qualification if they are included within a scope by a using directive or using declaration. The representations of namespace aliases, using directives, and using declarations are shown in Figure 11-7. Namespace definitions, namespace component declarations, namespace aliases, using directives, and using declarations occur only in the local symbol table. Namespace component definitions may occur in the local or external symbol table.

11.3.1.5.1    Namespace Components

The components of a namespace are represented in two parts: declarations and definitions. Namespace components that do not require definition must be declared in the namespace definition. Namespace components that are referenced by a using declaration must be declared in the namespace definition. All other namespace component declarations may be omitted from the namespace definition.

Namespace component names are mangled only as needed. Function and data definitions have mangled name definitions in the local or external symbol table. These entries are mangled for type-safe linkage and as a method of matching components with the namespaces to which they belong. Names of component declarations within a namespace definition may or may not be mangled. They are not required to include the namespace name in their mangled form.

Empty namespace contributions can be omitted, but at least one instance of a namespace definition must occur somewhere in the local symbol table. This definition is required because name mangling rules do not distinguish namespace component definitions from class member definitions.

11.3.1.5.2    Namespace Aliases

Namespace aliases can occur in namespace, file, procedure, or block scope in the local symbol table. The index value for the stAlias entry is an auxiliary table index. The auxiliary entry is a RNDXR record containing the local symbol table index of the stNamespace symbol in the first instance of a namespace definition within a compilation unit. For an alias of an alias, the RNDXR record can also contain the index of another stAlias symbol in the local symbol table. Section 17.2.5 provides an example of a namespace alias.

The stAlias symbol type may be used in future versions of the symbol table format as a general purpose symbol alias representation. The semantic interpretation of the stAlias symbol depends on the type of the symbol it aliases.

11.3.1.5.3    Unnamed Namespace

An unnamed namespace can be declared at the global scope or within another namespace. An unnamed namespace is unique within a compilation unit. Multiple contributions to a unique unnamed namespace are not allowed. Unnamed namespace contributions are included in the non-mergeable portion of a C++ header file.

Unnamed namespace components are subject to the same rules as named namespaces for declarations and definitions.

The stNamespace symbol for an unnamed namespace has a compiler generated name starting with __N1. This same name is used to identify the unnamed namespace in the mangled names of components of that namespace. (See the unnamed namespace example in Section 17.2.4.)

11.3.1.5.4    Usage of Namespaces

A C++ using directive or a using declaration is represented by a symbol of type stUsing. It may occur in any scope in the local symbol table. The index value for the stUsing entry is an auxiliary table index. If the stUsing entry represents a using declaration for a single namespace component, the auxiliary entry is a RNDXR record containing the local symbol table index of a namespace component declaration. If the stUsing entry represents a using directive, its RNDXR auxiliary contains the local symbol table index of the stNamespace symbol in the first definition of that namespace in the compilation unit.

A using directive for a namespace alias is represented with a RNDXR auxiliary that directly references the aliased namespace. This representation contains no record of the alias referenced by the using directive.

A using directive for a global symbol is represented with a RNDXR auxiliary that references a local symbol table stExternal/ scInfo entry with a name matching the global symbol as it is recorded in the external symbol table.

---

Version Note

Using directives for global symbols are supported in Tru64 UNIX V5.1B and greater.

---

Names are not required for stUsing entries, but they can be set to match the namespace or namespace component to which they refer.

Namespace components that are referenced by an stUsing symbol must be declared in the namespace definition.

Section 17.2.3 provides an example of namespace definitions and uses.

11.3.1.6    Fortran Modules

---

Version Note

Fortran modules are supported in symbol table format V3.14 and greater.

---

A Fortran 90 module provides a way of grouping symbol names and controlling naming conflicts. The definition of a Fortran 90 module is very similar to the definition of a C++ namespace, but the uses of these two constructs are very different. See Section 11.3.1.5 for a description of C++ namespaces.

The compilation of a Fortran 90 module unit will result in a complete local symbol table for the module. The module will be represented as shown in Figure 11-8 using the stModule and stEnd symbols to delimit the start and end of the module. Declarations within the module are represented in the normal manner. The stModule symbol type shares the same value as the stNamespace symbol type. The lang field in the containing file descriptor determines which interpretation is valid.

Figure 11-8:  Fortran 90 Module Representation

External symbol table entries for declarations contained in modules use a simple form of name mangling. As illustrated in Section 17.3.4, the external name is constructed by converting names to lower case and assembling them as:

     $module$symbol_

Modules can contain interface declarations and contained procedure definitions. Contained procedures are defined inside the module. They are represented the same as any other procedure in Fortran. Procedure definitions are described in Section 11.3.1.2. Interface declarations identify procedures that can be accessed as members of the module, but they are defined outside of the module context. The representation of an interface declaration is illustrated in Figure 11-9. Examples of contained procedures and interface declarations can be found in Section 17.3.5 and Section 17.3.6, respectively.

Figure 11-9:  Fortran 90 Module with Interface Declaration

11.3.1.6.1    Modules with Use Statements

The Fortran 90 USE statement imports symbols from a module defined in a separate compilation unit. Variations of the statement allow importing all of a module's symbols or only those that are specified. The USE statement also allows imported symbols to be renamed in the local context.

Figure 11-10 shows the representation of a USE statement that imports all symbols from a module without renaming any of them. Note that the stUseModule symbol index field is isymNil and the value field is USE_MODULE_ALL.

Figure 11-10:  Fortran 90 Module USE (ALL) Representation

Module names must be unique across all compilation units, so debuggers can resolve the stUseModule entry by searching all compilation units for the definition of a module with the same name. A debugger cannot resolve all module uses by searching the external symbol table. It must access the definition of the exporting module to resolve symbols that it imports from other modules. The example in Section 17.3.4 illustrates the Fortran 90 USE statement used in a module definition to import symbols from another module.

Figure 11-11 shows the representation of a USE statement that imports all symbols from a module renaming some of them. Note that the stUseModule symbol index field is the index of the local symbol table entry following the corresponding stEnd symbol and the value field is USE_MODULE_ALL. Specific symbols are renamed with stRename entries. For these entries the iss field is the local string table index of the symbol name in the local context. The value field is the local string table index for the symbol name as it is appears in the module definition.

Figure 11-11:  Fortran 90 Module USE with Renaming

Figure 11-12 shows the representation of a USE statement that imports selected symbols from a module. Note that the stUseModule symbol index field is the index of the local symbol table entry following the corresponding stEnd symbol and the value field is USE_MODULE_ONLY. Specific symbols are imported with stRename entries. If a symbol is renamed its stRename iss field is the local string table index of the symbol's name in the local context. Otherwise, both the iss and value fields contain the same local string table index for the symbol name as it is appears in the module definition.

Figure 11-12:  Fortran 90 Module USE (ONLY) Representation

11.3.1.6.2    Fortran Generic Interfaces

The Fortran 90 INTERFACE statement can be used to create a single generic interface name for a set of procedure names that are distinguished by parameter types. The representation of generic interfaces is illustrated in Figure 11-13 and an example is shown in Section 17.3.7.

Figure 11-13:  Fortran 90 Generic Interface Representation

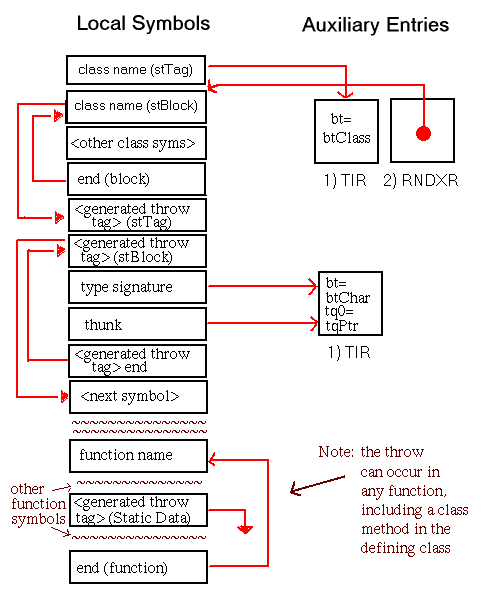

11.3.1.7    Exception Handling Blocks (C++)

In C++, a special scoping mechanism is introduced to expand user-defined exception-handling capabilities. Exception handlers are defined to "catch" exceptions that are "thrown" by other functions. The symbol table must contain sufficient information to recognize the scope of a handler. The compiler generates special symbols to identify where exception handlers are valid.

Figure 11-14:  C++ Exception Handler Representation

11.3.1.8    Fortran Common Blocks

Fortran common blocks constitute another scoping level. Fortran uses common blocks as a way of specifying data that is global or shared between program units. A common block is global storage that can be named, allocated, accessed, and used by various subroutines. The block can be named or unnamed; unnamed blocks are known as "blank commons". Internal to the symbol table, blank commons are named _BLNK__.

Figure 11-15 shows the symbolic representation of Fortran common blocks.

Figure 11-15:  Fortran Common Block Representation

Because a Fortran common is represented as a synthesized file, it also has an entry in the file descriptor table. Furthermore, a global symbol with the same name is also present in the external symbol table.

An example of a Fortran common block can be found in Section 17.3.1.

11.3.1.9    Alternate Entry Points

Fortran also has a facility for creating alternate entry points in procedures. An alternate entry point is represented using an stProc/ scText symbol. In the procedure descriptor table, an alternate entry point is identified by a lnHigh field with a value of -1. Procedure descriptors for alternate entry points follow the procedure descriptor for the primary entry point. In the local symbol table, an alternate entry point has an entry inside the scope of the procedure's primary entry.

The representation of a procedure with an alternate entry point is shown in Figure 11-16

---

Version Note

The stBlock symbol that follows the alternate entry's stProc symbol in Figure 11-16 is supported in symbol table format V3.13 and greater. In symbol table formats less than V3.13 alternate entries do not have a start block symbol, and their prologue size is unknown.

---

Figure 11-16:  Alternate Entry Point Representation

An example of Fortran alternate entries can be found in Section 17.3.2.

11.3.2    Data Types in the Symbol Table

A data element's type dictates its size and interpretation in a programming environment. One of the symbol table's most important tasks is to represent data types in a compact and complete manner.

Type information is stored in the local and auxiliary symbol tables. This section provides guidelines for understanding the type information plus specific examples for depicting a range of types.

11.3.2.1    Basic Types

All programming languages have a set of simple types that are built into the language and from which other data types can be derived. Examples of simple types are integer, character, and floating point. Languages also provide constructs for creating user-defined types based on the simple types. For example, a C++ class can be built using any simple type or previously defined user-defined type and the language facility for declaring classes.

Similarly, a basic type in the symbol table is a building block from which each language constructs its type information. Basic type (bt) values directly represent many of the simple types for supported languages; for instance, the value btChar indicates a character. Other bt values represent language constructs for building aggregate types; a value of btStruct may be used, for example, to represent a C structure or Pascal record.

The symbol table uses approximately forty basic type values. The interpretation of some of these values is language dependent. See Table 11-4 for a list of all values.

11.3.2.2    Type Qualifiers

Type qualifiers can be applied to basic types to create other data types. Examples are "pointer to", "array of", and "function returning". Generally the number and order of type qualifiers is unrestricted.

See Table 11-5 for a list of type qualifiers and their meanings.

11.3.2.3    Interpreting Type Descriptions in the Auxiliary Table

This section explains in detail the encoding of type descriptions in the symbol table. To fully describe the type of a symbol, the auxiliary symbol table must be created and referenced. Compilation with full symbolic information (-g option on system compilers) results in the creation of this table.

To correctly decode the type information, proceed sequentially, beginning with the symbol table entry. Several fields may be required from other symbol table structures:

• symbol type (st)

• storage class (sc)

• index (SYMR.index)

• value (SYMR.value)

• source language (FDR.lang)

The first step is to determine whether the symbol contains an index of an auxiliary table description.

Table 11-7:  Symbols with Auxiliary Type Descriptions

If the index does represent a record in the auxiliary symbol table, the interpretation of the first auxiliary entry (AUXU) depends on the type of the symbol:

• If the symbol's type is stProc or stStaticProc and the symbol is a local symbol, the indexed AUXU is an isym (set to indexNil for alternate entry points) and the second AUXU is a TIR. External procedure symbols do not have descriptions in the auxiliary table.

• If the symbol's type is stInter, stAlias, or stUsing, the indexed AUXU is an RNDXR and the type description does not contain a TIR.

• If the symbol is an stBlock symbol inside an scVariant block, the symbol entry's value field is an index into the auxiliary table. This special case is the only one where the value is used as an auxiliary symbol pointer. In all other cases, it is the index field that potentially indexes the auxiliary table type description.

• Otherwise, the indexed AUXU is a TIR.

The next task is to examine the contents of the TIR. The TIR contains constants representing the basic type of the symbol and up to six type qualifiers, labeled tq0-tq5. If a type has more than one qualifier, they are ordered from lowest to highest. Lower qualifiers are applied to the basic type before higher qualifiers. All unused tq fields are set to tqNil, and no tqNil fields are present before or between other type qualifiers.

In addition to the basic type and type qualifiers, the TIR contains two flags: an fBitfield flag to mark whether the size of the type is explicitly recorded, and a continued flag to indicate that the type description is continued in another TIR. If fBitfield is set, the TIR is immediately followed by a width entry. If more than six type qualifiers are required for the current definition, the description is continued, and the continued flag is set. If exactly six type qualifiers are needed, all six fields are used and the continued flag is cleared.

To illustrate, consider the type "array of pointers to integers". The basic type is "integer" and has two qualifiers, "array of" and "pointer to". Each element of the array is a "pointer to integer". Therefore, the qualifier "pointer to" must be applied first to the basic type "integer". In this example, the qualifier "pointer to" is lower than the qualifier "array of". The contents of the TIR are as follows:

        bt: btInt
        tq0: tqPtr
        tq1: tqArray
        tq2: tqNil
        tq3: tqNil
        tq4: tqNil
        tq5: tqNil
        continued: 0
        fBitfield: 0

The contents of the TIR dictate how to interpret any subsequent records. The records appear in a prescribed order:

• If the fBitfield flag is set, a width record follows the TIR.

• If the basic type is btPicture, the next four records contain integer values: the string table index of the picture string, the length, precision and scale.

• If the basic type is btScaledBin, the next three records contain integer values: a basic type, the precision and scale.

• If the basic type field is btStruct, btUnion, btEnum, btClass, btIndirect, btSet, btTypedef, btRange, btRange_64, btDecimal, btFixedBin, or btProc, the next record is an RNDXR.

• If the rfd field of the RNDXR contains the value ST_RFDESCAPE, the next record is an isym.

• If the basic type is btRange, the next two records are dnLow and dnHigh.

• If the basic type is btRange_64, the next two records are dnLow records and the two after that are dnHigh records.

• If the basic type is btDecimal or btFixedBin, the next two records contain integer values: the precision and scale.

• For each array type qualifier in the TIR, the following symbols occur:

  • An RNDXR, again possibly followed by an isym

  • Either one or two dnLow records (depending on whether the array is tqArray or tqArray_64)

  • Either one or two dnHigh records (depending on whether the array is tqArray or tqArray_64)

  • Either one or two width records (depending on whether the array is tqArray or tqArray_64)

• If the continued flag is set, the next record is another TIR

For a type description containing more than one TIR, the fields of all TIR records are interpreted in the same way. When a TIR is reached with the flag cleared and any records associated with that TIR have been decoded, the type description is complete.

As an example, consider an array of structures with the fBitfield flag set. A total of seven auxiliary records can be used to describe the type:

1. The TIR with a basic type of btStruct and with tq0 set to tqArray.

2. A width record. The size of the basic type.

3. A RNDXR record. A pointer to the structure definition in the local symbol table.

4. A RNDXR record. A pointer to the array index type description elsewhere in the auxiliary table.

5. A dnlow record. The lower bound of the array's range.

6. A dnhigh record. The upper bound of the array's range.

7. A width record. The distance in bits between each element in the array.

If the continued flag of the TIR is cleared, the width record corresponding to the array qualifier is the final AUXU for this type description.

For another view of this process, see Figure 11-17. Each box represents one auxiliary entry belonging to the symbol's type description. Using the flowchart, an ordered list of entries can be assembled.

Figure 11-17:  Auxiliary Table Interpretation

Figure 11-18:  Auxiliary Table "ti" Interpretation

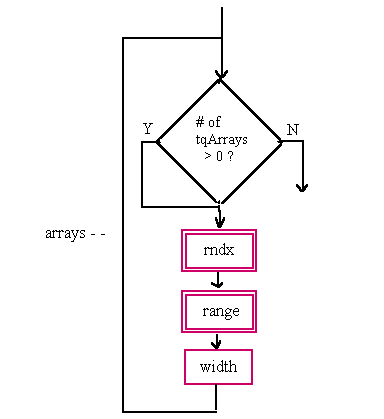

Figure 11-19:  Auxiliary Table "arrays" Interpretation

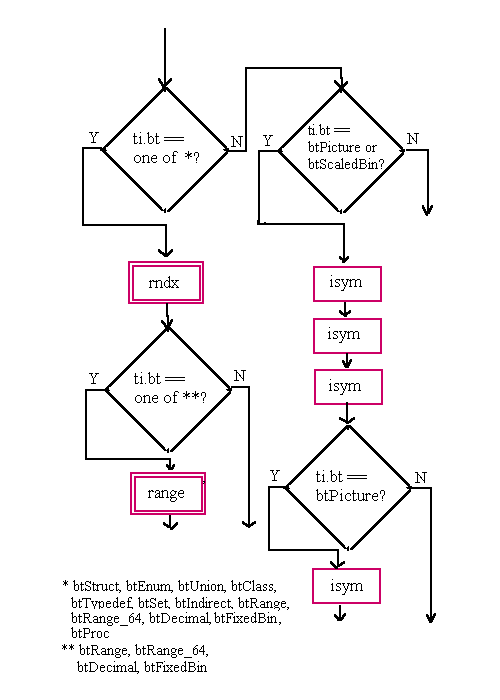

Figure 11-20:  Auxiliary Table "bt vals" Interpretation

Figure 11-21:  Auxiliary Table Range Interpretation

Figure 11-22:  Auxiliary Table RNDXR Interpretation

The final step is to decode the RNDXR records. The basic types that are followed by RNDXR records require reference to another local or auxiliary symbol to complete the type description. Interpret the RNDXR records as follows:

• If the basic type is btStruct, btUnion, btEnum, btClass, btProc, or btTypedef, the index field of the RNDXR points into the local symbol table. The specified local symbol is the start of the definition of the structure, union, enumeration, class, or user-defined type. For btProc, the referenced local symbol is the start of the set of symbols defining the procedure's signature.

• If the basic type is btSet, the RNDXR points into the auxiliary symbol table. The specified record is the start of the description of the type of each element in the set.

• If the basic type is btIndirect, the RNDXR points into the auxiliary symbol table. The specified auxiliary record is the start of the description of the referenced type.

• If the basic type is btRange, the RNDXR points into the auxiliary symbol table. The specified auxiliary record is the start of the description of the type being subranged.

• If the basic type is btFixedBin, the rfd field of the RNDXR contains a Boolean value. If rfd is true, the base is decimal; if rfd is false, the base is binary. The index field represents a type code.

• If the basic type is btDecimal, the rfd field of the RNDXR contains the value 1 for 4-bit digits (packed decimal) or 2 for 8-bit digits (zoned decimal). The index field represents a type code.

Additionally, the index of every RNDXR used as a pointer must be mapped through the relative file descriptor table (see Section 6.3.2), if the table exists. The rfd field of the record controls this mapping. The following algorithm can be used to locate the symbol referenced by the relative index record:

if (RNDXR.rfd == ST_RFDESCAPE)
    RFD = (++AUXU).isym
else
    RFD = RNDXR.rfd
if (HDRR.crfd) /* RFD table exists */
    IFD = (current FDR's RFD table)[RFD]
else
    IFD = RFD

if (SYMR needed)
    SYMBASE = FDR[IFD].isymBase
    SYMR = SYMBASE[RNDXR.index]
else if (AUXU needed)
    AUXBASE = FDR[IFD].iauxBase
    AUXU = AUXBASE[RNDXR.index]

11.3.3    Individual Type Representations

This section provides sketches of type representations in the local and auxiliary symbol tables. The connections between the two tables is depicted for each type. This form of representation is only possible when full symbolic information is present.

Note that external symbols as well as local symbols reference the auxiliary table, although the examples in this chapter use local symbols only.

11.3.3.1    Pointer Type

A pointer is a variable containing the address of another variable. A pointer is represented by a tqPtr type qualifier modifying another type. A pointer is represented by a single symbol with an entry in the auxiliary table, as shown in Figure 11-23.

Note that if the pointer referenced a user-defined type, such as a class or structure, the TIR would be followed by an RNDXR (and possibly an isym).

Figure 11-23:  Pointer Representation

The combination of type qualifiers tqFar and tqPtr are used to represent a short (32-bit) pointer. This pointer type is used with the XTASO emulation.

11.3.3.2    Array Type

An array is a list of elements that all have the same type. Arrays may be fixed size and allocated at compile time or dynamically sized and allocated at run time. This section describes the fixed-size array symbol table representation. For information on Fortran dynamic arrays, see Section 11.3.3.9. For conformant arrays in Pascal and Ada, see Section 11.3.3.10.

An array is represented by a tqArray or tqArray_64 type qualifier applied to another type. This second type describes the type of all elements in the array. In the local or external symbol table, a single entry represents an array. Figure 11-24 shows the symbol table description for an array.

Figure 11-24:  Array Representation

Note that for an array of elements of a user-defined type, such as a class or structure, another RNDXR (and possibly an isym) would be inserted between the TIR and the RNDXR describing the subscript type.

If an array has multiple dimensions, the symbols describing the dimension appear in the order of innermost to outermost. For example, the following declaration produces a TIR with the tqArray qualifier followed by the RNDXR and range description for 0-1 followed by the entries for the dimension 0-99:

float floattable[100][2]

Some arrays may have dimensions too large to represent in the 32-bit format shown in Figure 11-24. Such arrays are represented using a 64-bit format in which two auxiliary entries are used for the dimension bounds and size. Figure 11-25 illustrates the 64-bit representation.

---

Version Note

The 64-bit representation of arrays is supported in symbol table format V3.13 and greater.

---

Figure 11-25:  64-Bit Array Representation

11.3.3.3    Structure, Union, and Enumerated Types

This section applies to data structures in languages other than C++. For the C++ structure, union, or enumerated type representation, see Section 11.3.3.6.

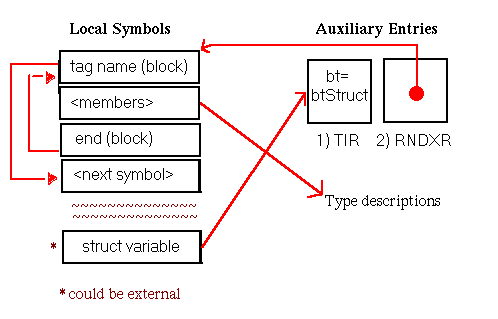

Structures, unions, and enumerated types have a common representation. All three are identified using "tags" and contain zero or more fields. In the symbol table, the tag is the name associated with the starting stBlock symbol for the structure's set of local symbols. Note that it may be empty because the tag is optional. Symbols for fields follow. The definition is completed by a block-end symbol matching the block-start symbol.

Figure 11-26 contains a graphical depiction of this set of symbols.

Figure 11-26:  Structure Representation

The structure members have auxiliary table indices pointing to their type descriptions.

Untagged structures and unions are represented with a NULL tag name. Unnamed structures can be embedded in other structures and are represented as a NULL-named member of the outer structure. See Section 17.1.1 for an example of an unnamed structure.

---

Version Note

Unnamed member structures are supported in symbol table format V3.13 and greater. As of Tru64 UNIX V5.1 dbx will display structures with unnamed member structures, but neither dbx nor ladebug provide specific access to members of unnamed member structures.

---

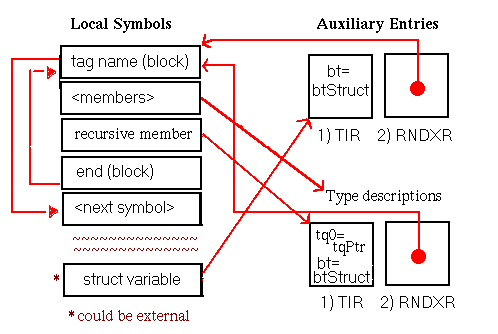

A structure can contain a field that is a pointer to itself. This field is represented by an stMember symbol with an auxiliary table entry that references the beginning of the structure's block of local symbols, as shown in Figure 11-27.

Figure 11-27:  Recursive Structure Representation

When a field within a structure is itself a structure, the compiler may choose to generate the structure definitions either sequentially or embedded, as shown in Figure 11-28.

Figure 11-28:  Nested Structure Representation

The following declaration might result in the nested structure representation:

struct line {
        struct point {
            float x, y;
        }  p1, p2;
};

11.3.3.4    Typedef Type

Most languages allow programmers to choose alternate names, or aliases, for data types. The alias created by such a facility (such as C's typedef) is represented as a single local symbol entry that has a pointer to its type description in the auxiliary table. The auxiliary entry contains a pointer to the definition of the type name, as shown in Figure 11-29.

Figure 11-29:  Typedef Representation

11.3.3.5    Function Pointer Type

---

Version Note

The following function pointer representation is the preferred representation for symbol table format V3.13 and greater.

---

Languages such as C and C++, which allow pointers to functions, represent the type of the function pointer using a special stProc/ scInfo block describing the parameters and return value for the function as shown in Figure 11-30.

Figure 11-30:  Function Pointer Representation

The stProc/ scInfo entry has its value set to -2, which distinguishes it from similar entries used to represent procedures with no text and C++ member functions. The stProc/ scInfo and stEnd/ scInfo entries have null names in the function pointer representation. The parameters are optional and may or may not be named.

---

Version Note

For symbol table formats less than V3.13 the preceding representation for function pointers is not supported, and the following alternate representation is used exclusively.

---

An alternate representation of function pointers is shown in Figure 11-31. This representation describes the return type of the function pointer but not its parameters, and it is valid for all symbol table format versions. The combination of type qualifiers tqPtr and tqProc is interpreted as "pointer to function returning". The function return type may be the base type (bt) in the TIR or it may be constructed from the base type augmented by additional type qualifiers.

Figure 11-31:  Function Pointer Alternate Representation

11.3.3.6    Class Type (C++)

A C++ class resembles an extended C structure. One major distinction is that class fields (referred to as "members") can be functions as well as variables. The set of symbols created for a class is organized as follows:

• The name of the class

• A block symbol for scoping

• Data members

• Symbols associated with member functions. Each member function is represented by the normal set of symbols present for a function.

• Corresponding end symbols that denote the completion of the block and class.

Another characteristic of classes is that symbols are defined implicitly. For example, all classes have an operator= operator-overloading function included in the class definition and a this pointer to its own type as a parameter to all member functions. These symbols are always included explicitly in the symbol table description.

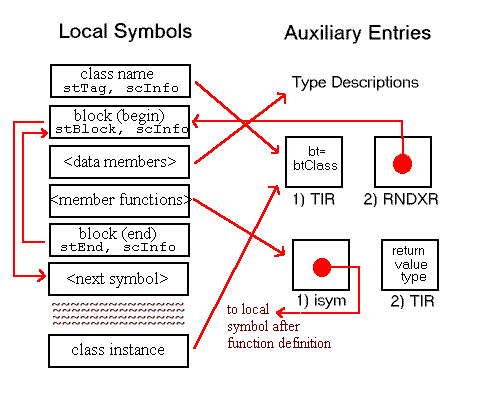

Figure 11-32 is a graphical representation of the set of symbols for a class.

Figure 11-32:  Class Representation

Class members, including member functions, have auxiliary references that point to their type descriptions. Note that member functions are represented as prototypes. The set of symbols defining the member function is elsewhere in the symbol table. To locate the definition of a member function, a name lookup can be performed using the mangled name of the member function with its class name qualifier. See Section 13.3.3 for information on name mangling.

C++ structures, unions, and enumerated types are represented the same way as classes. The different data structures are distinguished by basic type value.

The symbol table does not represent class member access attributes.

Examples of base and derived classes can be found in Section 17.2.1.

11.3.3.6.1    Empty Class or Structure (C++)

The representation of an empty class in C++ is shown in Figure 11-33. Empty structures in C++ are represented in a similar manner with the TIR.bt set to btStruct.

Figure 11-33:  Empty Class or Structure (C++)

---

Version Note

This empty class or structure representation is supported in Tru64 UNIX V5.1. Prior to Tru64 UNIX V5.1, the default compilers did not distinguish empty classes and structures from opaque classes and structures. See Section 11.3.3.6.2 for more details.

---

11.3.3.6.2    Opaque Class or Structure (C++)

Opaque classes and structures are incomplete types. They have no member information, and they are distinguished from empty classes and structures that have no members. The representation of an opaque class in C++ is shown in Figure 11-34. Opaque structures in C++ are represented in a similar manner with TIR.bt set to btStruct.

Figure 11-34:  Opaque Class or Structure (C++)

---

Version Note

Prior to Tru64 UNIX V5.1 the default compilers used the preceding representation for empty classes and structures as well as opaque classes and structures.

---

11.3.3.6.3    Base and Derived Classes (C++)

Hierarchical groups of classes can be designed in C++. A base class serves as a wider classification for its derived classes, and a derived class has all of the members and methods of the base class, plus additional members of its own. In the symbol table, the set of symbols denoting a derived class is nearly identical to that for a non-derived class. The derived class includes an additional stBase or stVirtBase symbol that identifies its corresponding base class, and it does not need to duplicate the definitions for the base class members. This representation is shown in Figure 11-35.

Figure 11-35:  Base Class Representation

The representation of virtual base classes for C++ relies on the definition of a special symbol that identifies the virtual base table. The name for this symbol is derived from the name of the class to which it belongs. For example, the virtual base table symbol for class C5 would be named "_btbl_2C5". This table contains entries for base class run-time descriptions.

A class can include the special member _bptr. This class member is a pointer to the virtual base table for that class.

The value field for a virtual base class symbol ( stVirtBase/ scInfo) serves as an index (starting at 1) into the virtual base class table.

11.3.3.7    Template Type (C++)

Templates are a C++-specific language construct allowing the parameterization of types. C++ class templates are represented in the symbol table for each instantiation, but not for the template itself. The set of class symbols is unchanged from the set shown in Figure 11-32.

11.3.3.8    Interlude Type (C++)

Interludes are compiler generated functions in C++. They are represented in the local symbol table with special names starting with the "__INTER__" prefix. Their representation in the symbol table makes use of two RNDXR aux entries to identify the related member function and the actual interlude function, both of which are local symbol table entries.

Figure 11-36:  Interlude Representation

11.3.3.9    Array Descriptor Type (Fortran90)

A Fortran90 array descriptor is a structure that describes an array: its location, dimensions, bounds, sizes, and other attributes. Array descriptors are described in detail in the Fortran 90 User Manual for Tru64 UNIX. Fortran90 includes several types of arrays for which the dimensions or dimension bounds are determined at run time: allocatable arrays, assumed shape arrays, and array pointers.

Two symbol table representations have been used for array descriptors. The current representation describes the array descriptor itself. The retired representation described attributes of the array known at compile time.

For both representations, symbols of this type point to a data location at which the array descriptor is allocated. One of the array descriptor fields contains a pointer to the actual array. Other fields are used to describe the attributes of the array. Fields that describe the number of dimensions and upper and lower bounds are filled in at run time.

By default, array descriptors are described by a structure tag representation. Most of the array descriptor fields are represented as structure members. (Excluded fields are not needed by debuggers.) Special tag names are used to identify array descriptor structure definitions: $f90$f90_array_desc (assumed-shape array), $f90$f90_ptr_desc (pointer to array) and $f90$f90_alloc_desc (allocatable array). Figure 11-37 shows the format of this representation.

Some compilers may emit other fields in addition to those shown in Figure 11-37. A consumer's ability to interpret additional fields depends on its knowledge of the producing compiler.

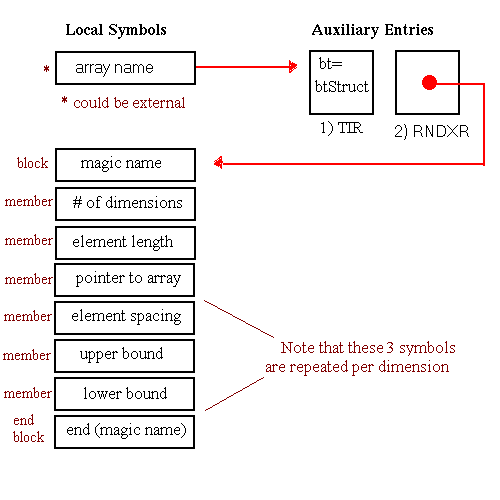

Figure 11-37:  Array Descriptor Representation

An example of the default Fortran array descriptor representation can be found in Section 17.3.3.

---

Version Note

The following representation of Fortan array descriptors is supported in symbol table formats less than V3.13. It is not supported in symbol table format V3.13 and greater.

---

This retired representation of Fortran array descriptors is substantially more compact in the local symbol table, but it provides no way to distinguish between the different array descriptor types.

The overloaded basic type value 28 indicates an array descriptor in the TIR, and dimension bounds are set to [1:1] indicating their true size is unknown. The alternate representation does not provide any information describing the contents of the array descriptor itself, so debuggers must assume a static representation for the descriptor and lookup the fields at their expected offsets.

Figure 11-38 shows this representation of array descriptors.

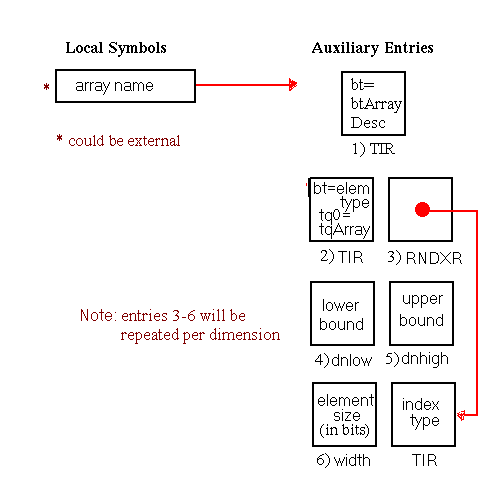

Figure 11-38:  Array Descriptor Representation (retired)

11.3.3.10    Conformant Array Type (Pascal)

Full details are not currently available for Pascal's conformant array representation. A Pascal conformant array is very similar to Fortran's assumed shape arrays. It is an array parameter with upper and lower dimension bounds that are determined by the input argument. A conformant array is represented by an array descriptor. The special names used and the format of the array descriptor differ from those used for Fortran. The DEC Pascal release notes contain additional information on conformant arrays.

11.3.3.11    Variant Record Type (Pascal and Ada)

A variant record is an extension to the record data type, which is a Pascal or Ada data structure akin to a C structure and is represented in the same manner in the symbol table. The variant part of the record consists of sets of one or more fields associated with a range of values. Only one such set is part of the record, and it is selected based on the value of another record field. Any number of variant parts can be embedded in a single record.

---

Version Note

The following variant record representation is for symbol table format V3.13 and greater.

---

The local symbol table entries for the variant part of a record are contained within a block with the storage class (sc value) scVariant. The value field of the stBlock entry contains the index of the local symbol entry for the member of the record whose value determines which variant arm is used. The variant block contains multiple inner blocks, each representing a variant arm. The value field of each of these block entries is an auxiliary table index. Each auxiliary table entry starts with a count, which indicates how many range entries follow. The range entries describe the values associated with the block.

Figure 11-39 is a graphical representation of a variant record.

Figure 11-39:  Variant Record Representation

---

Version Note

The following variant record representation is for symbol table formats less than V3.13. It is not supported in symbol table format V3.13 and greater.

---

The representation of variant records depicted in Figure 11-40 does not include TIR auxiliaries.

Figure 11-40:  Variant Record Representation (retired)

An example of a Pascal variant record can be found in Section 17.4.3.

11.3.3.12    Subrange Type (Pascal and Ada)

A subrange data type defines a subset of the values associated with a particular ordinal type (the "base type" of the subrange). Ordinal types in Pascal include integers, characters, and enumerated types. The symbol table representation of a subrange uses the btRange or btRange_64 type followed by an auxiliary index identifying the base type and entries providing the bounds of the subrange. The 32-bit representation is shown in Figure 11-41 and the 64-bit representation is shown in Figure 11-42.

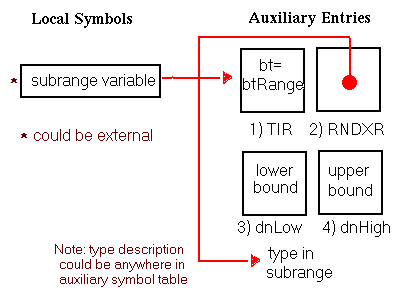

Figure 11-41:  Subrange Representation

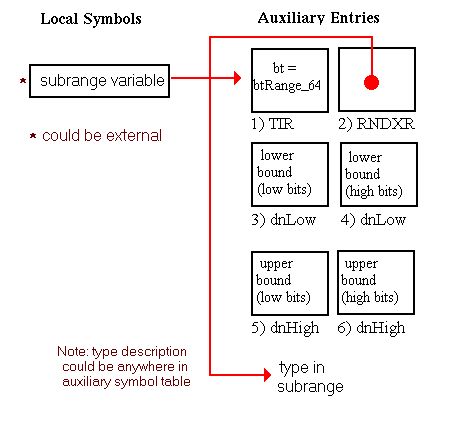

Figure 11-42:  64-bit Range Representation

---

Version Note

The 64-bit range representation is supported in symbol table format V3.13 and greater.

---

An example of a Pascal subrange can be found in Section 17.4.2.

11.3.3.13    Set Type (Pascal)

A set is a data type that groups ordinal elements in an unordered list. The arithmetic and logical operators are overloaded in Pascal; this enables them to be used with set variables to perform classic set operations such as union and intersection. A special auxiliary type definition btSet exists to identify this type. The symbol table representation is depicted in Figure 11-43.

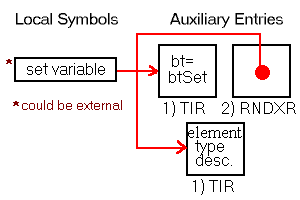

Figure 11-43:  Set Representation

The element type for a set is typically a range or an enumeration. An example of a Pascal set can be found in Section 17.4.1.

11.3.4    Special Debug Symbols

A variety of special symbols are used throughout the symbol table to convey call frame information, special type semantics, or other language specific information. These names are reserved for use by compilers and other tools that produce Tru64 UNIX object files.

Table 11-8:  Special Debug Symbols

.lb_<ARRAY>.<dim>
.ub_<ARRAY>.<dim>

$f90$f90_array_desc
$f90$f90_alloc_desc
$f90$f90_ptr_desc

11.4    Language-Specific Symbol Information Features

Language-specific characteristics are pervasive in the symbol table, particularly in the local, external, and auxiliary symbol tables. See Section 6.2 and Section 11.3.2 for information on language-specific values.

The lang field of the file descriptor entry encodes the source language of the file. This field should be accessed prior to decoding symbolic information, especially type descriptions. This section highlights, by language, language-specific features represented in the symbol table. Additional information on certain features is available elsewhere in this chapter.

11.4.1    Fortran77 and Fortran90

In Fortran, it is possible to create multiple entry points in subroutines. A subroutine has one main entry point and zero or more alternate entry points, indicated by ENTRY statements. See Section 11.3.1.9 for their representation in the symbol table.

Fortran90 array descriptors include allocatable arrays, assumed-shape arrays, and pointers to arrays. Their representation in the symbol table is discussed in Section 11.3.3.9.

Modules provide another scoping level in Fortran90 programs. Their symbol table representation is described in Section 11.3.1.6.

11.4.2    C++

C++ classes encapsulate functions and data inside a single structure. Classes are represented in the symbol table using a btClass basic type and the stBlock/ stEnd scoping mechanism. See Section 11.3.3.6.

Templates provide for parameterized types. At present, no special symbol table values are related to templates. The template itself is not represented; rather, entries that correspond to each instantiation are generated. Template instantiations are distinguished by mangled names based on their type signatures.

C++ namespaces, like Fortran modules, offer an additional scope for program identifiers.

The C++ concepts of private, protected, and public data attributes are not currently represented in the symbol table. The C++ concept of "friend" classes and functions are also not represented.

11.4.3    Pascal and Ada

Pascal conformant arrays are function parameters with array dimensions that are determined by the arguments passed to the function at run time. See Section 11.3.3.10.

Variant records are an extension of the record data structure. Variant records allow different sets of fields depending on the value of a particular record member. See Section 11.3.3.11.

Nested procedures are supported in these languages. They are represented using standard scoping mechanisms discussed in Section 11.3.1 and uplevel references described in Section 8.3.4.

Sets and subranges are user-defined subsets of ordinal types. Sets are unordered groups of elements, which can be manipulated with the classic set operations. Subranges are ordered and are used with the usual operators. See Section 11.3.3.12 and Section 11.3.3.13.

Ada subtypes of ordinal types are represented in the same manner as Pascal subranges.
