4    Internet Protocol Security

Internet Protocol Security (IPsec) is a security framework that is designed to provide interoperable, high quality, cryptographically based security for Internet Protocol Version 4 (IPv4) and Internet Protocol Version 6 (IPv6). This security is provided at the Internet Protocol (IP) layer, offering protection for both IP and upper layer protocols.

If you do not need security at the IP layer for all traffic, you might want to use Secure Shell software or Secure Socket Layer (SSL). See Security Administration for more information on these technologies.

This chapter describes the following:

For problem solving information, see Section 10.5 and Appendix B.

4.1    IPsec Environment

In the IPsec environment, systems that use the IPsec protocols can have the following roles:

An IPsec host can also create and maintain secure connections with secure gateways. In this case, the host acts as its own secure gateway.

The remainder of this section shows some sample IPsec configurations. Select a configuration that most closely matches the environment into which you want to configure IPsec on your system. These configurations are used again in Section 4.6.7 to describe how to configure selected systems in each configuration. In addition, any restrictions are listed at the end of the section.

4.1.1    Host-to-Host Configuration

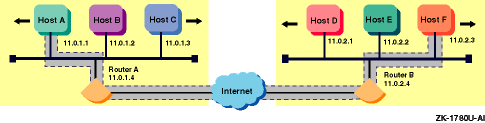

Figure 4-1 shows a simple configuration in which Host A and Host F use IPsec protocols to create a secure connection. Packets are protected end-to-end in transport mode.

Figure 4-1:  Sample Host-to-Host Configuration

4.1.2    Secure Gateway-to-Secure Gateway Configuration

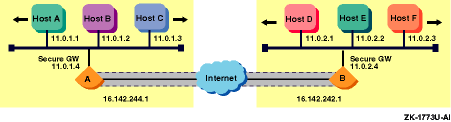

Figure 4-2 shows a configuration in which two secure gateways use IPsec protocols to communicate over a secure connection through the Internet. This creates a Virtual Private Network (VPN) through the Internet.

Figure 4-2:  Sample Secure Gateway-to-Secure Gateway Configuration

When a Tru64 UNIX host is acting as a secure gateway between two subnets, each packet must be processed both inbound to and outbound from the host. Packets on the secure or intranet side of the gateway are not protected by IPsec (or are protected end-to-end in transport mode). Packets on the unsecure or Internet side of the gateway are protected using tunnel mode to the remote secure gateway.

4.1.3    Host-to-Secure Gateway Configuration

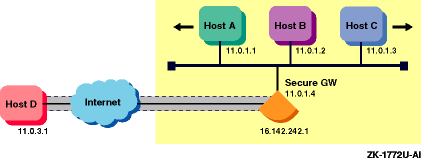

Figure 4-3 shows a configuration in which a remote host connects to a secure gateway through the Internet. Packets between the host and the secure gateway are protected using tunnel mode.

Figure 4-3:  Sample Host-to-Secure Gateway Configuration

A remote host might also establish a secure connection with a secure gateway in transport mode in order to manage the secure gateway. In this case, the packets terminate on the secure gateway instead of being forwarded to the subnet.

4.1.4    Restrictions

This implementation of IPsec has the following restrictions:

4.2    Secure Connections

The behavior of IPsec is determined by the secure connections defined on the system. Each secure connection describes a bi-directional connection between two hosts or between two subnets. You define a secure connection by providing a name and a rule for the connection. Each rule contains the following:

Selector

Identifies which inbound and outbound IP packets match the rule. The selector specifies values for the local IP address, remote IP address, upper layer protocol, and upper layer ports of the matching packets, either all or specific values. You can also use subnets or ranges of IP addresses for the local and remote values.

Action

Describes how IP packets matching the selector are to be processed. The action may be to discard (drop) the packet, to bypass IPsec processing (allow the packet in or out with no security processing), or to apply IPsec processing. A packet that does not match any rules is discarded.

Proposal

Lists the set of IPsec protocols to be applied, the authentication and encryption algorithms to be used, and associated parameters (the keys). With manual keying, only one proposal (with one protocol and algorithm) is allowed. You use proposals for rules that apply IPsec processing only.

You use the SysMan IPsec utility to define secure connections that compose the overall IPsec configuration. The IPsec daemon (ipsecd) reads the configuration information when it starts and places the rules into the kernel.

For each incoming and outgoing packet, the kernel scans the Security Policy Data base (SPD) sequentially to find a rule that matches. Thus, connection rules are usually ordered from most specific to least specific. The ordered list of connections that define how to process traffic into and out of the system is called the security policy for the system. Table 4-1 lists the default connections that are predefined in the SysMan IPsec utility.

Table 4-1:  SysMan Default Connections

Connection Description
allow-ike-io Allows IKE input and output traffic, without IPsec protection, to port 500 to and from all systems.
allow-dns-io Allows DNS input and output traffic, without IPsec protection, to port 53 to and from all systems.

You can also use the SysMan IPsec utility to enable or disable IPsec processing.

Note

If you enable IPsec and have not defined additional secure connections, all IP network traffic except for IKE and DNS will be stopped.

4.2.1    IPsec Protocols

On a system in which no secure connections are defined, each transmitted packet is unprotected, and has the structure shown in Figure 4-4 for IPv4 and Figure 4-5 for IPv6. Once transmitted, the IP header and payload could be intercepted, changed, and sent to the destination; the destination would not know that the data had been altered.

Figure 4-4:  Typical IPv4 Packet (unprotected)

Figure 4-5:  Typical IPv6 Packet (unprotected)

When a secure connection is defined, it can be protected by the following traffic security protocols:

The AH protocol can operate in either transport mode or tunnel mode. Figure 4-6 shows a transmitted IPv4 packet for both modes and Figure 4-7 shows a transmitted IPv6 packet for both modes.

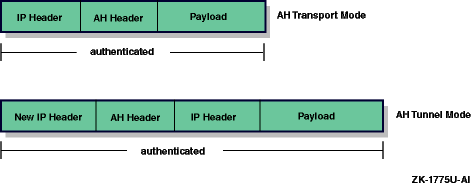

Figure 4-6:  AH Transport Mode and Tunnel Mode Packets (IPv4)

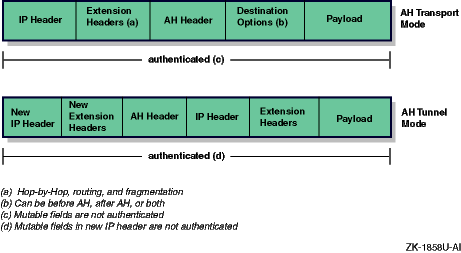

Figure 4-7:  AH Transport Mode and Tunnel Mode Packets (IPv6)

In transport mode, the original packet's IP header is the IP header for the resulting packet (AH header and payload). This is typically used in host-to-host communications. In tunnel mode, the packet is appended to a new IP header (tunnel header) and AH header. The inner IP header contains the original source and destination addresses; the outer header, the addresses of the secure gateways. This is typically used in secure gateways and VPN configurations.

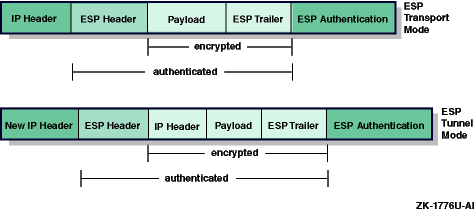

The ESP protocol can also operate in either transport mode or tunnel mode. Figure 4-8 shows a transmitted IPv4 packet for both modes and Figure 4-9 shows a transmitted IPv6 packet for both modes.

Figure 4-8:  ESP Transport Mode and Tunnel Mode Packets (IPv4)

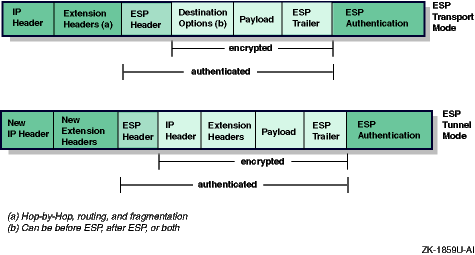

Figure 4-9:  ESP Transport Mode and Tunnel Mode Packets (IPv6)

In transport mode, the packet's IP header is the IP header for the resulting encrypted packet (payload and ESP trailer). This is typically used in host-to-host communications. In tunnel mode, the encrypted packet (original IP header, payload, and ESP trailer) is appended to a new IP header (tunnel header). The inner IP header contains the original source and destination addresses; the outer header, the addresses of the secure gateways. This is typically used in secure gateways and VPN configurations.

The AH and ESP protocols support two Hashed Message Authentication Codes (HMACs): Message Digest 5 (MD5-96) and Secure Hash Algorithm 1 (SHA1-96) authentication algorithms. The ESP protocol supports Data Encryption Standard (DES), triple-DES (3DES), and Advanced Encryption Standard (AES) encryption algorithms.

Together with the use of cryptographic key management procedures and protocols, you can employ these protocols in any context and manner. How you employ them depends on the security and system requirements of users, applications, and your particular organization or site.

4.3    Security Association

When you define a secure connection, you provide information that is used to create and establish an entity called a Security Association (SA). An SA is an instantiation of the security policy, and contains the following information:

This information is used to match and process packets that are to be protected. A single secure connection that specifies one IPsec protocol creates both an inbound and outbound SA, as shown in Figure 4-10.

Figure 4-10:  SAs Created for One Protocol

If the secure connection specifies both AH and ESP protocols, an inbound and outbound SA is created for each protocol, as shown in Figure 4-11.

Figure 4-11:  SAs Created for Two Protocols

You can use the netstat command to display the SAs.

4.4    Key Exchange

Because IPsec relies on cryptographic keys for authentication and encryption, you need a mechanism for exchanging keys between two communicating systems and for changing them periodically. The Tru64 UNIX IPsec implementation provides two means of exchanging keys:

4.4.1    Manual Keying

This method of key management and exchange relies on a single person manually configuring key information on each system in network. The actual keys are hexadecimal or text strings of the appropriate length for the algorithm.

While manual keying might work in small, static network testing environment, it is not practical in larger, real-life networks with many systems. It is also difficult to create high-quality keys, to change the keys often enough to avoid having your security compromised, and to exchange them securely.

4.4.2    IKE

The IKE protocol is the preferred method of SA and key management. In this method, each system that implements IPsec also uses IKE to establish SAs and to securely exchange the key information. All IKE exchanges are sent and received on port 500. By default, this IPsec implementation predefines an IPsec connection to allow this traffic.

IKE exchanges occur between two systems: an initiator and a responder. The exchanges have the following two phases:

Phase 1 exchanges must occur before Phase 2 exchanges.

4.4.2.1    Phase 1 Exchanges

IKE Phase 1 exchanges can occur using one of the following modes:

In addition, the following types of authentication are supported: two types of digital signatures, public key encryption, and pre-shared keys. Digital signatures and public key encryption are preferable to pre-shared keys unless you can generate high quality keys and transmit them securely.

This section describes Main Mode exchanges using digital signatures, a commonly used Phase 1 option. For this type of Phase 1 exchange, the following events occur:

  1. The initiator sends a non-encrypted set of one or more proposals to another system. The other system, the responder, indicates which proposal it will support.

    At the end of this exchange, the two systems have agreed on an authentication method, a hash function, and an encryption algorithm.

  2. The initiator sends a non-encrypted Diffie-Hellman public value and a random value (called a nonce). The responder sends its own Diffie-Hellman public value and its nonce.

    At the end of this exchange, the two systems have derived identical authentication and encryption keys for the IKE exchanges and have derived key data that will be used to derive keys to protect Phase 2 exchanges.

  3. The initiator sends its encrypted identity, digital signature, and optional certificate. The responder sends its own encrypted identity, digital signature, and optional certificate. The identity is typically an IP address, but depends on what the particular IPsec implementation requires.

    At the end of this exchange, each system has authenticated itself to its peer.

Both peers keep track of the Phase 1 lifetimes to automatically exchange new key information and generate new keys for the IKE SAs.

Note

Only one Phase 1 Security Association (SA) at a time is supported to each remote IKE peer. Defining a policy that requires creating multiple Phase 1 SAs to a given peer will cause IKE connectivity problems.

4.4.2.2    Phase 2 Exchanges

IKE Phase 2 exchanges occur in Quick Mode. In this type of exchange the following events occur:

  1. The initiator sends an encrypted hash of the message payload, an SA payload, a set of one or more proposals to protect IP traffic; and, if Perfect Forward Secrecy (PFS) is used, a Diffie-Hellman public value and Group number. The responder sends an encrypted hash of the message payload, an SA payload, a set of one or more proposals to protect IP traffic; and, if PFS is used, its own Diffie-Hellman public value and Group number.

    At the end of this exchange, the two systems have exchanged new nonces and public Diffie-Hellman values (if PFS is used), and have derived keys for generating the integrity check value and for encrypting (if selected) transmitted datagrams and keys for validating the integrity check value and for decrypting (if selected) received datagrams.

  2. The initiator sends an encrypted hash of the Phase 1 authentication key, message ID, and both nonces.

    At the end of this exchange, both systems start to use the negotiated security protocols to protect their user IP traffic.

Both peers keep track of the Phase 2 lifetimes to automatically exchange new key information and generate new keys for the IPsec SAs.

4.5    Certificates

IKE Phase 1 exchanges (described in Section 4.4.2) can use authentication using pre-shared keys or authentication using public key cryptography. The following public key algorithms are supported:

For all public key methods, certificates are an integral part.

A certificate is a file that binds a system's identity to its associated public keys. You verify the information in the certificate by relying on a trusted third party called a Certification Authority (CA). This verification process in turn enables you to authenticate the sender.

The process of using digital signatures and certificates is as follows:

  1. An administrator of a system generates a public and private key pair and sends the public key with a request for a certificate to a CA.

  2. The CA binds (signs) the public key to an identifier for the system and issues the certificate to the administrator. The public key needed to verify the CA's signature is distributed in the CA's certificate. The X.509 standard defines the information in a certificate and the possible data formats.

  3. During an IKE Phase 1 exchange, a system sends IKE data signed with its private key to another system. It typically also sends the certificate that contains the corresponding public key.

  4. The receiving system uses the sending system's public key from the certificate to validate the signed IKE data. Before it does that, the receiving system validates the sender's public key by using the CA's certificate to validate the sender's certificate. The receiver must have the certificate from the same CA that signed the sender's certificate.

What happens if, in Step 4, the receiving system does not know the CA that has issued the certificate of the sending system? Many CAs can form a hierarchical trust chain. Each member of the chain has a certificate that has been signed by a superior authority. If the receiving system needs to verify the validity of CA's certificate, the system can verify the CA certificate's signature by using the public key of the issuer of the CA's certificate. This key is typically stored in another certificate. The receiving system repeats this process until it reaches a CA that it trusts or the root of the trust chain.

Each certificate is assigned a unique serial number. When the certificate is revoked, its serial number is placed in a Certificate Revocation List (CRL). Senders and receivers should check the validity of any certificates they use, both for revocation and expiration. In order to check for revocation, senders and receivers should periodically retrieve the latest CRL from a CA or CAs.

4.5.1    Certificate Encoding

Table 4-2 describes the different ways in which the binary data contained in the certificate can be encoded.

Table 4-2:  Certificate Binary Data Encoding Methods

Data Encoding Method Description
PEM (Privacy Enhanced Mail)

Encoded as a Base64 encoded binary.
binary

Encoded in accordance with the Distinguished Encoding Rules (DER) of ASN.1.
HEXL

Encoded as a hexadecimal string. Each line has the following form:

xxxxxxxx: yyyy yyyy yyyy yyyy yyyy yyyy yyyy yyyy

In this form, xxxxxxxx is the hexadecimal offset of the data at the beginning of the line and yyyy yyyy yyyy yyyy yyyy yyyy yyyy yyyy is up to 16 bytes of hexadecimal data.

See Section 4.5.2 for guidelines on using certificates. See ipsec_certmake(8) for information on generating certificates.

Note

In order to effectively use certificate-based authentication, you need access to a Public Key Infrastructure (PKI) or Certification Authority (CA). The utilities provided with the operating system are not sufficient for creating and using certificates in a production environment.

4.5.2    Guidelines for Using Certificates

Use the following guidelines when you are using certificates in IPsec configuration:

4.6    Planning IPsec

IPsec and Internet Key Exchange (IKE) are complex protocols with many possible configurations and many options. These protocols are also implemented in different types of devices, including hosts, routers, and standalone Virtual Private Network (VPN) gateways. Each vendor may use the protocols in different ways and may use different defaults.

You can configure IPsec on any node. For cluster members, you can configure IPsec on each individual cluster member independently. See Section 4.6.3 for notes on implementing IPsec on a TruCluster. See the Cluster Administration manual for information on configuring a cluster.

This section describes those tasks you must complete before configuring IPsec.

4.6.1    Verifying That the IPsec Subset is Installed

Verify that the IPsec subset is installed by entering the following command:

# setld -i | grep OSFIPSECBASE

If the IPsec subset is not installed, install it by using the setld command. For more information on installing subsets, see setld(8), the Installation Guide, or the System Administration manual.

After the IPsec subset is installed, the system is configured to dynamically load the IPsec module into the kernel whenever it is called.

4.6.2    Taking Inventory of the System's Network Traffic

Because IPsec examines every IP packet into and out of the system, your security policy needs to take into account all traffic that should be allowed to flow into and out of the system. When you start IPsec through SysMan, the system is in IP secure mode. In this mode, it is preferable to block all IP traffic than to accidentally risk sending sensitive data in the clear. The ipsecd daemon must be running with a valid policy in order for IP traffic to flow into and out of the system.

The SysMan IPsec application provides a few commonly needed connections for IKE and Domain Name System (DNS). You may need to add policies for other protocols, for example, Network Information Service (NIS), Network Time Protocol (NTP), Simple Message Transfer Protocol (SMTP), or an "allow all" policy for your trusted subnet.

Also, if you run a routing daemon, you may need to allow traffic to and from the subnet broadcast address.

4.6.3    Implementing IPsec on a TruCluster

When implementing IPsec policies on a TruCluster, be aware of the following:

4.6.4    Following the IPsec Implementation Guidelines

In order to assure a successful configuration and operation of IPsec with a new peer, use the following guidelines:

  1. Verify, if possible, that you can establish an unsecured connection with the peer. This will eliminate routing problems, for example, that are unrelated to IPsec.

  2. Configure a secure connection authenticated using pre-shared keys. This avoids debugging both IKE and Public Key Infrastructure (PKI) interoperability issues at the same time. You can use simple test keys at this point if the connection will later change to using public-key authentication.

  3. Configure the connection using a public-key certificate mode, if needed.

4.6.5    Reducing the IPsec Impact on System Performance

The use of IPsec substantially increases the amount of CPU processing required for each IP packet. The reasons for this are as follows:

As a result, if a system is using a large portion of its CPU resources for network packet processing, enabling IPsec might produce a significant reduction in network throughput. Systems that make less demanding use of the network might also notice the additional overhead.

If IPsec is enabled, the list of connections that compose an IPsec policy must be examined for each IP packet sent or received. Depending on the complexity of the policy, the maximum throughput that can be obtained may be reduced by 25% or more. This can occur even if no encryption or authentication is being done. Adding authentication and 3DES encryption may reduce the maximum throughput to 10% or less of the non-IPsec value, depending on the speed of the processor and the network interface.

The following guidelines can help to reduce the performance impact of IPsec processing:

4.6.6    Preparing for the Configuration

Before you configure the IPsec software, you must gather information about your system and the types of IPsec connections you want. The following sections contain worksheets that you can use to record the information required to configure IPsec. Figure 4-12 shows the basic path through the worksheets.

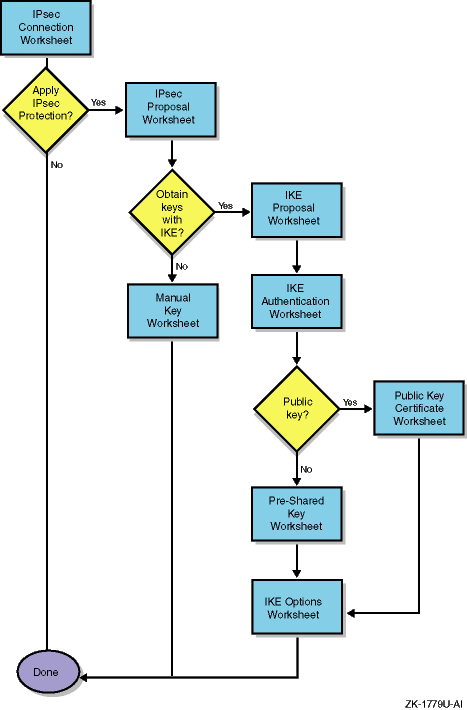

Figure 4-12:  Worksheet Flow Diagram

4.6.6.1    IPsec Connection Worksheet

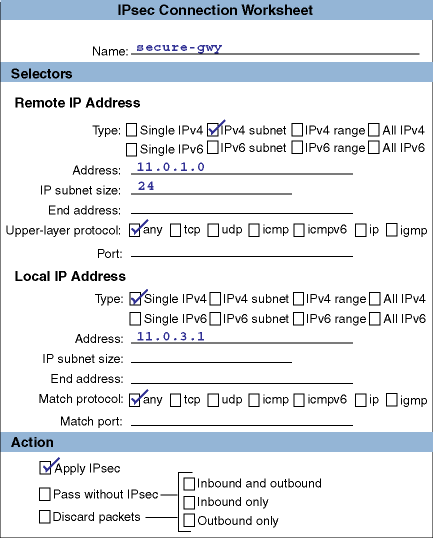

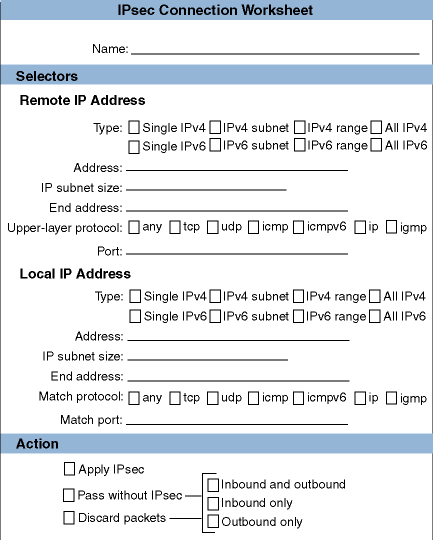

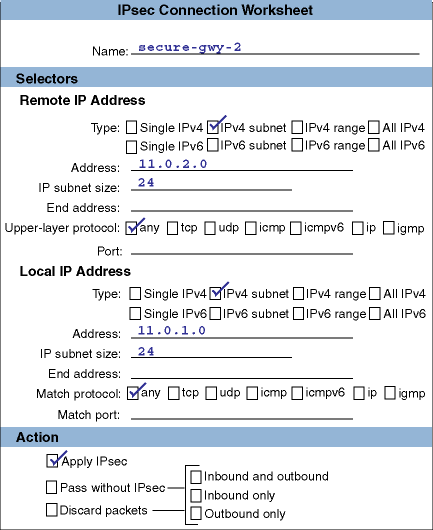

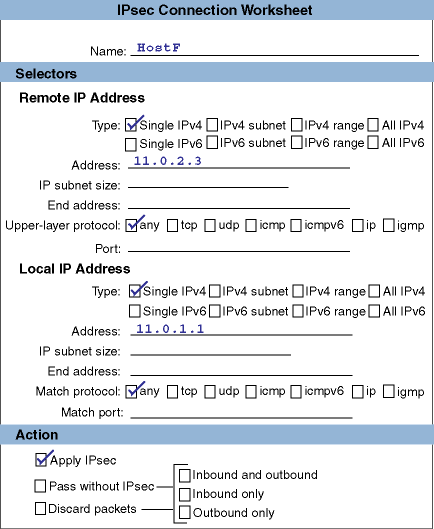

Figure 4-13 shows the IPsec Connection Worksheet. The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-13:  IPsec Connection Worksheet

Name

The name for the IPsec connection. This can be from 1 to 40 alphanumeric characters in length, including the underscore (_) and hyphen (-) characters. By default, this implementation defines connections for IKE exchanges and Domain Name System (DNS) exchanges.

Remote IP Address Selectors

These are the remote IP addresses that IPsec looks for in the destination address field of outbound packets and the source address field of inbound packets. Packets with these remote IP addresses are selected for the specified IPsec action.

Type

The manner in which the IP address portion of the selector is specified. If you want to specify a single IP address, check either Single IPv4 or Single IPv6. If you want to specify an entire IP subnet, check either IPv4 Subnet or IPv6 Subnet. If you want to specify a range of IP addresses, check either IPv4 Range or IPv6 Range. If you want to specify all IP addresses, check either All IPv4 or All IPv6.

Address

For IPv4, the single IP address, IP subnet address, or the beginning address in a range of IP addresses in dotted-decimal notation. For IPv6, the single IP address, IP subnet address, or the beginning address in a range of IP addresses in IPv6 address format (see Section 3.3 for IPv6 address information).

IP subnet size

The size (number of bits) of the IP subnet mask. The range is from 0 to 32 bits for IPv4 and from 0 to 128 bits for IPv6.

End address

For IPv4, the ending address in a range of IP addresses in dotted-decimal notation. For IPv6, the ending address in a range of IP addresses in IPv6 address format.

Match protocol

The upper-layer protocol that the selector must match. If you want this selector to apply to all protocols, check any. If you want to match a specific protocol, check the appropriate protocol. You can choose from TCP, UDP, ICMP, ICMPv6, IP, or IGMP.

Match port

The port number that the selector must match. The range is from 1 to 65535. If you want the selector to apply to all ports, leave this blank.

Local IP Address Selectors

These are the local IP addresses that IPsec looks for in the source address field of outbound packets and the destination address field of inbound packets. Packets with these local IP addresses are selected for the specified IPsec action.

Type

The manner in which the IP address portion of the selector is specified. If you want to specify a single IP address, check either Single IPv4 or Single IPv6. If you want to specify an entire IP subnet, check either IPv4 Subnet or IPv6 Subnet. If you want to specify a range of IP addresses, check either IPv4 Range or IPv6 Range. If you want to specify all IP addresses, check either All IPv4 or All IPv6.

Address

For IPv4, the single IP address, IP subnet address, or the beginning address in a range of IP addresses in dotted-decimal notation. For IPv6, the single IP address, IP subnet address, or the beginning address in a range of IP addresses in IPv6 address format.

IP subnet size

The size (number of bits) of the IP subnet mask. The range is from 0 to 32 bits for IPv4 and from 0 to 128 bits for IPv6.

End address

For IPv4, the ending address in a range of IP addresses in dotted-decimal notation. For IPv6, the ending address in a range of IP addresses in IPv6 address format.

Match protocol

The upper-layer protocol that the selector must match. If you want this selector to apply to all protocols, check any. If you want to match a specific protocol, check the appropriate protocol. You can choose from TCP, UDP, ICMP, ICMPv6, IP, or IGMP.

Match port

The port number that the selector must match. The range is from 1 to 65535. If you want the selector to apply to all ports, leave this blank.

Action

The type of processing to perform on IP packets matching the local and remote address selectors. If you do not want to apply IPsec processing, check Pass without IPsec. If you want to apply IPsec processing, check Apply IPsec. If you want discard the packets, check Discard packets.

If you check Apply IPsec, IPsec processing is always applied in both directions, inbound and outbound. For the other two actions, you must specify the direction in which to apply the action. If you want to apply the action to all packets, check Inbound and outbound. If you want to apply the action to received packets, check Inbound only. If you want to apply the action to transmitted packets, check Outbound only.

4.6.6.2    IPsec Proposal Worksheet

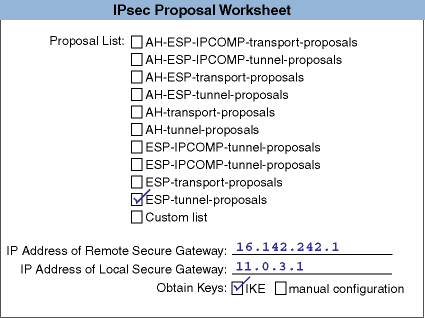

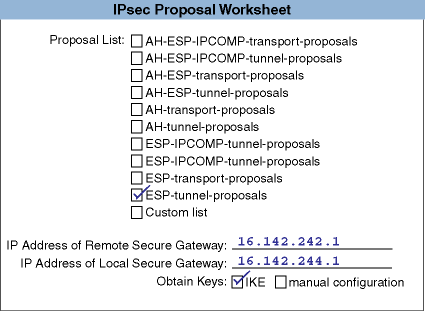

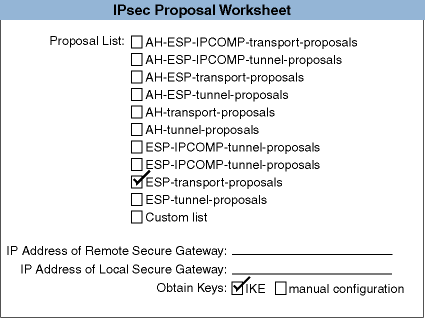

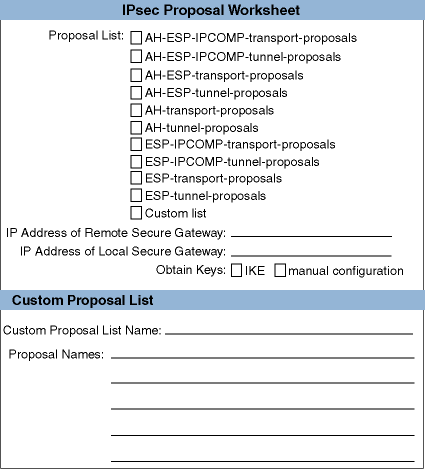

Figure 4-14 shows the IPsec Proposal Worksheet. You only need to complete the worksheet if you want to apply IPsec processing to the packets (checked Apply IPsec on the IPsec Connection Worksheet). The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-14:  IPsec Proposal Worksheet

Proposal list

The name of a proposal list containing the proposals to apply to this connection. Check one of the choices, depending on the type of IPsec protection you want for this connection and the connection mode. The proposals in the proposal list are offered for negotiation in the order listed. The first proposal to which both parties agree is chosen. If none of the predefined proposal lists meets your needs, check Custom list.

If you want to use manual keying, you cannot use any of the predefined proposal lists. You must create a proposal list that contains one proposal for one protocol. Check Custom list and see Section 4.6.6.3 for more information.

Proposal List Name Type of Protection
AH-ESP-IPCOMP-transport-proposals Compressed AH and ESP protocols in transport mode with either SHA1 or MD5 authentication and 3DES encryption
AH-ESP-IPCOMP-tunnel-proposals Compressed AH and ESP protocols in tunnel mode with either SHA1 or MD5 authentication and 3DES encryption
AH-ESP-transport-proposals AH and ESP protocols in transport mode with either SHA1 or MD5 authentication and 3DES encryption
AH-ESP-tunnel-proposals AH and ESP protocols in tunnel mode with either SHA1 or MD5 authentication and 3DES encryption
AH-transport-proposals AH protocol in transport mode with either SHA1 or MD5 authentication
AH-tunnel-proposals AH protocol in tunnel mode with either SHA1 or MD5 authentication
ESP-transport-proposals ESP protocol in transport mode with either SHA1 or MD5 authentication and 3DES encryption
ESP-tunnel-proposals ESP protocol in tunnel mode with either SHA1 or MD5 authentication and 3DES encryption

The ESP-transport-proposals and ESP-tunnel-proposals are the most commonly used proposals for IPsec.

The predefined IPsec proposal lists include all the combinations of 3DES encryption with MD5 and SHA-1 HMAC. You should always use encryption (ESP) with authentication; that is, with AH or with an ESP authentication algorithm. Encrypted packets (encryption without authentication) can be vulnerable to attacks that splice the encrypted contents of one packet into another packet.

The predefined IPsec proposal lists do not include the DES encryption algorithm because it can be broken in practice by an adversary with sufficient computing resources. Predefined DES proposals are included and can be combined into custom proposal lists with the SysMan IPsec application, if DES is required.

The predefined IPsec proposal lists do not include the AES encryption algorithm because it is not widely deployed. Predefined AES proposals are included and can be combined into custom proposal lists with the SysMan IPsec application. If the remote peer supports AES, you should use it in order to improve IPsec performance.

IP address of remote secure gateway

The IPv4 address (in dotted-decimal notation) or the IPv6 address (in IPv6 address format) of the secure gateway at the remote end of an IPsec tunnel connection. You must specify a remote address if you have selected a proposal list that contains tunnel proposals. If you do not specify an address, IPsec uses the address of the remote peer by default.

IP address of local secure gateway

IPv4 address (in dotted-decimal notation) or the IPv6 address (in IPv6 address format) of the secure gateway at the local end of an IPsec tunnel connection. You must specify a remote address if you have selected a proposal list that contains tunnel proposals. If you do not specify an address, IPsec uses your host's address by default.

Obtain keys

The manner in which IPsec keys are obtained. If you want to use Internet Key Exchange (IKE) protocol to obtain keys, check IKE; this is the typical case. If you want to create manual keys, check manual configuration.

Custom proposal list name

The name of a new proposal list, if you want to create a custom list (checked Custom list for a proposal list name). The predefined proposal lists and the proposals that they contain are sufficient for most cases.

Proposal names

The name of a proposal or proposals that you want included in your proposal list. IPsec proposal names have the following form:

protocol-mode-encryption-authentication_type

For example, esp-tn-3des-md5-96 denotes ESP protocol, tunnel mode, 3DES encryption, and MD5 authentication. The ipsec-ah-tn-md5-96-and-esp-tn-3des-none proposal denotes a combination of AH and ESP proposals. Note that the word none on the ESP proposal denotes no authentication. This IPsec implementation provides predefined proposals for all possible permutations.

Write the name of the proposals, depending on the type of IPsec protection you want for this connection and the connection mode. The proposals in the proposal list are offered for negotiation in the order listed. The first proposal to which both parties agree is chosen. If none of the predefined proposals meets your needs or you are using manual keying, check Custom proposal.

4.6.6.3    IPsec Custom Proposal Worksheet

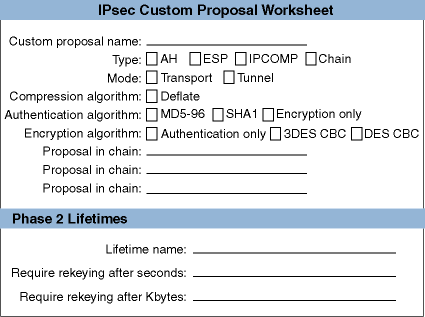

Figure 4-15 shows the IPsec Custom Proposal Worksheet. You only need to complete the worksheet if none of the predefined proposals is suitable for your environment (checked Custom proposal for a proposal name on the IPsec Proposal Worksheet). The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-15:  IPsec Custom Proposal Worksheet

Custom proposal name

The name of a new proposal, if you want to create a custom proposal. The predefined proposals and their parameters are sufficient for most cases.

Type

The type of proposal. If you are defining an AH proposal, check AH. If you are defining an ESP proposal, check ESP. If you are defining an IP compression proposal, check IPCOMP. If you are defining a proposal that consists of multiple proposals in a particular sequence, check Chain. If you are using manual keying, do not check Chain; you can only specify one proposal.

Mode

The mode in which to use the IPsec protocol. If you want transport mode, check transport. If you want tunnel mode, check tunnel.

Compression algorithm

The type of compression to apply to the packets. Packets are compressed before any IPsec processing is applied to the packets. If you want to apply compression, check Deflate.

Authentication algorithm

The type of authentication to apply to the packets. If you want MD5, check MD5-96. If you want SHA, check SHA1-96. If you want encryption only, check encryption.

Encryption algorithm

The type of encryption to apply to the packets. If you want DES, check DES. If you want triple-DES, check 3DES. If you want AES, check the appropriate option. If you want authentication only, check authentication.

Proposal in chain

The name of other proposals to append to the proposal you are defining. Write the name of any currently defined proposal.

Phase 2 SA Lifetimes

The lifetime for the IPsec connection or SA.

Lifetime name

The name of the lifetime specification.

Require rekeying after Kbytes

The amount of data, in kilobytes, that a connection will pass through before it is stopped, unless rekeying has completed. Rekeying begins when approximately 80-90 percent of the data has been passed through. The connection will be available after new keys are generated and distributed.

Require rekeying after seconds

The amount of time, in seconds, for a connection to exist before it is stopped, unless rekeying has completed. Rekeying begins when approximately 80-90 percent of the time has elapsed. The connection will be available after new keys are generated and distributed. If a connection is unused for two times the number of seconds, it is removed.

4.6.6.4    IKE Proposal Worksheet

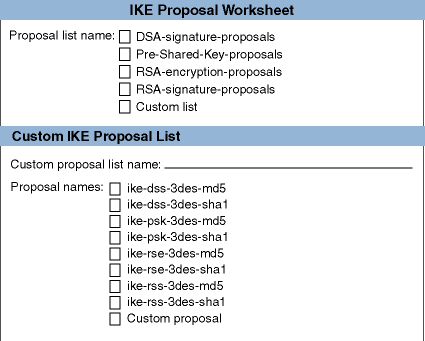

Figure 4-16 shows the IKE Proposal Worksheet. You only need to complete the worksheet if you want to use IKE to obtain keys for authentication and encryption of packets (checked IKE for the Obtain keys field on the IPsec Proposal Worksheet). The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-16:  IKE Proposal Worksheet

Proposal list name

The name of the proposal list that defines how IKE exchanges will be authenticated and protected. The proposals in the proposal list are offered for negotiation in the order listed. The first proposal to which both parties agree is chosen. If none of the predefined proposal lists meets your needs, check Custom list.

IKE Proposal List Name Type of Protection
DSA-signature-proposals DSA signature with either SHA1 or MD5 hashing and 3DES encryption
Pre-Shared-Key-proposals Pre-shared keys with either SHA1 or MD5 hashing and 3DES encryption
RSA-encryption-proposals RSA encryption with either SHA1 or MD5 hashing and 3DES encryption
RSA-signature-proposals RSA signatures with either SHA1 or MD5 hashing and 3DES encryption

Note

Of the public-key authentication modes, RSA signature mode is the most widely supported by other vendors.

Custom proposal list name

The name of a new IKE proposal list, if you want to create a custom list (checked Custom list for a proposal list name). The predefined IKE proposal lists and the proposals that they contain are sufficient for most cases.

Proposal names

The name of a proposal or proposals that you want included in your IKE proposal list. Check the proposals, depending on the type of protection you want for the IKE exchanges. The proposals in the proposal list are offered for negotiation in the order listed. The first proposal to which both parties agree is chosen. If none of the predefined IKE proposals meets your needs, check Custom proposal.

IKE Proposal Name Type of Protection
ike-dss-3des-md5 DSS signatures authentication, 3DES encryption, and MD5 hashing
ike-dss-3des-sha1 DSS signatures authentication, 3DES encryption, and SHA1 hashing
ike-psk-3des-md5 Pre-shared key authentication, 3DES encryption, and MD5 hashing
ike-psk-3des-sha1 Pre-shared key authentication, 3DES encryption, and SHA1 hashing
ike-rse-3des-md5 RSA encryption authentication, 3DES encryption, and MD5 hashing
ike-rse-3des-sha1 RSA encryption authentication, 3DES encryption, and SHA1 hashing
ike-rss-3des-md5 RSA signatures authentication, 3DES encryption, and MD5 hashing
ike-rss-3des-sha1 RSA signatures authentication, 3DES encryption, and SHA1 hashing

IKE proposal names have the following form:

ike-phase1_authentication-encryption_type-hash_algorithm

4.6.6.5    IKE Custom Proposal Worksheet

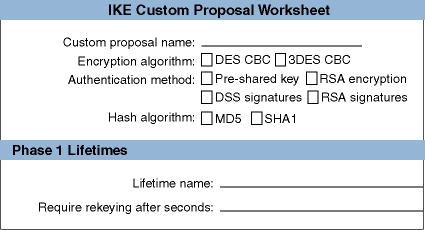

Figure 4-17 shows the IKE Custom Proposal Worksheet. You only need to complete the worksheet if none of the predefined proposals is suitable for your environment (checked Custom proposal for a proposal name on the IKE Proposal Worksheet). The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-17:  IKE Custom Proposal Worksheet

Custom proposal name

The name of a new proposal, if you want to create a custom IKE proposal. The predefined IKE proposals and their parameters are sufficient for most cases.

Encryption algorithm

The type of encryption algorithm to use for IKE exchanges. If you want to use DES CBC, check DES CBC. If you want to use 3DES CBC, check 3DES CBC.

Authentication method

The type of authentication method to use for IKE Phase 1 exchanges. Check the method, depending on the type of authentication you want to use. RSA signature method is the most widely supported by other vendors.

Method Name Description
Pre-shared key The simplest form. This key, like IPsec manual keys, has to be manually installed and updated on each system.
DSS signatures Authentication is achieved by generating and verifying digital signatures using the Digital Signature Standard (DSS). Requires certificates with public keys based on the DSS.
RSA signatures Similar to DSS signatures, but uses the RSA digital signature algorithm. Requires certificates with RSA public keys.
RSA encryption Authentication is achieved by sending data encrypted using the RSA public key encryption algorithm. Requires certificates with RSA public keys. It is slower than either signature method because it requires more public key operations.

Hash algorithm

The type of hash algorithm to use for IKE exchanges. If you want MD5, check MD5. If you want SHA1, check SHA1.

Phase 1 Lifetimes

The lifetime for the IKE connection.

Lifetime name

The name of the lifetime specification.

Require rekeying after seconds

The amount of time, in seconds, for a IKE connection to exist before it is stopped. An IKE connection is recreated when it is needed for new Phase 2 exchanges or new IP traffic.

Note

The Require rekeying after Kbytes field is ignored for IKE connections.

4.6.6.6    IKE Authentication Worksheet

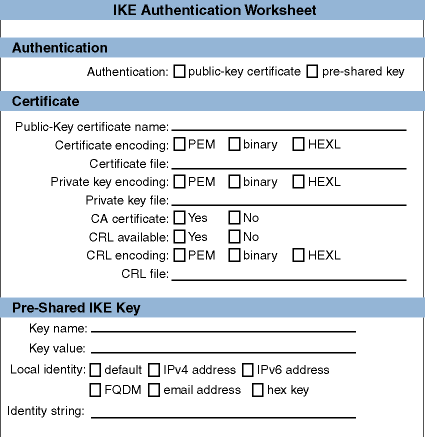

Figure 4-18 shows the IKE Authentication Worksheet. The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-18:  IKE Authentication Worksheet

Authentication

The method to use to authenticate IKE exchanges. If you want to use a pre-shared secret, check pre-shared IKE key. If you want to use a public certificate, check public-key certificate.

Certificate

The certificate identifies the local host in IKE exchanges.

Public-key certificate name

A name to identify the public-key certificate in the IPsec configuration file. It is not related to the actual subject names in the certificate.

Certificate encoding

The type of encoding used for the certificate's binary data. If the certificate is encoded using PEM, check PEM. If the certificate is encoded using DER, check binary. If the certificate is encoded as hexadecimal digits, check HEXL.

Certificate file

The full path name for the certificate file. You can use the /var/ipsec directory to store certificate files.

Private key encoding

The type of encoding used for the private key, if the certificate authenticates this system. This is not applicable for CA certificates and peer certificates (for example, RSA encryption). If the certificate is encoded using PEM, check PEM. If the certificate is encoded using DER, check binary. If the certificate is encoded as hexadecimal digits, check HEXL.

Private key file

The full path name for the private key file. You can use the /var/ipsec directory to store private key files. This is not applicable for CA certificates and peer certificates (for example, RSA encryption).

CA certificate

If the certificate is trusted to sign other certificates, check Yes; otherwise, check No.

CRL available

For a CA certificate, if a Certificate Revocation List (CRL) is available for certificates signed by this trusted certificate, check Yes; otherwise, check No.

CRL encoding

For a CA certificate, the type of encoding used for the CRL, if available. If the CRL is encoded using PEM, check PEM. If the CRL is encoded using DER, check binary. If the CRL is encoded as hexadecimal digits, check HEXL.

CRL file

For a CA certificate, the full path name for the CRL file. You can use the /var/ipsec directory to store CRL files.

Pre-Shared IKE Key

The pre-shared key is an authentication key that was previously given to the receiving system.

Key name

The name for the pre-shared key.

Key value

A text string or a hexadecimal string (beginning with 0x) for the key value. For good security, use long random sequences of text or hexadecimal digits.

Local identity

The identity of the sending host that is sent with the pre-shared key in an IKE Phase 1 exchange. Select the specific local identity to send. The choices are: IPv4 address, IPv6 address, fully qualified domain name (FQDN), e-mail address , or a hexadecimal key identifier. Typically, this is the IP address or FQDN of the local system. Different IPsec implementations have different requirements. Ask the security administrator for the remote system for information.

Identity string

A text string or hexadecimal string (beginning with 0x) for the specific identity type.

4.6.6.7    Public-Key Certificate Worksheet

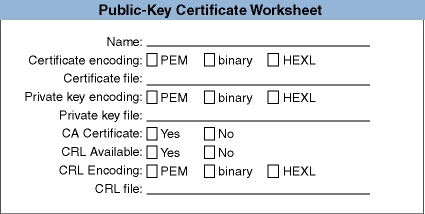

Figure 4-19 shows the Public-Key Certificate Worksheet. You need to complete the worksheet to add a root certificate or additional public-key certificates. The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-19:  IPsec Public-Key Certificate Worksheet

Public-key certificate name

The name of the public-key certificate. This name is not related to actual subject names in the certificate.

Certificate encoding

The type of encoding used for the certificate's binary data. If the certificate is encoded using PEM, check PEM. If the certificate is encoded using DER, check binary. If the certificate is encoded as hexadecimal digits, check HEXL.

Certificate file

The full path name for the certificate file. You can use the /var/ipsec directory to store certificate files.

Private key encoding

The type of encoding used for the private key, if the certificate authenticates this system. This is not applicable for CA certificates and peer certificates (for example, RSA encryption). If the certificate is encoded using PEM, check PEM. If the certificate is encoded using DER, check binary. If the certificate is encoded as hexadecimal digits, check HEXL.

Private key file

The full path name for the private key file. You can use the /var/ipsec directory to store private key files. This is not applicable for CA certificates and peer certificates (for example, RSA encryption).

CA certificate

If the certificate is trusted to sign other certificates, check Yes; otherwise, check No.

CRL available

For a CA certificate, if a Certificate Revocation List (CRL) is available for certificates signed by this trusted certificate, check Yes; otherwise, check No.

CRL encoding

For a CA certificate, the type of encoding used for the CRL, if available. If the CRL is encoded using PEM, check PEM. If the CRL is encoded using DER, check binary. If the CRL is encoded as hexadecimal digits, check HEXL.

CRL file

For a CA certificate, the full path name for the CRL file. You can use the /var/ipsec directory to store CRL files.

4.6.6.8    IKE Options Worksheet

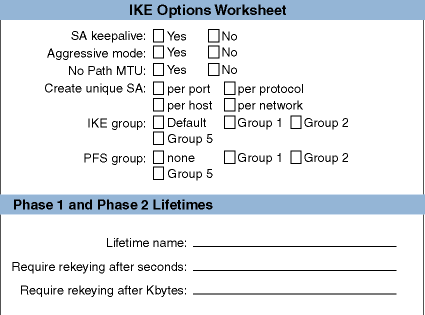

Figure 4-20 shows the IKE Options Worksheet. You only need to complete the worksheet if you want to specify options other than using the default options. The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Figure 4-20:  IKE Options Worksheet

SA keepalive

The context of the connection is preserved even when no packets are being sent or received. If you want to use SA keepalive, check Yes; otherwise, check No.

Aggressive mode

A mode of establishing IKE connections that is faster than the default (called Main mode), but does not encrypt identities of the two negotiating parties. If you want to use Aggressive mode, check Yes; otherwise, check No.

No Path MTU

If you want to disable the alteration of MTU sizes by the system, check Yes; otherwise, check No.

Create unique SA

Create a unique SA for each port, upper-layer protocol, host, or subnet on the connection. Select the context you want. The default is to create a unique SA per host for transport mode and to create a unique SA per network for tunnel mode.

IKE group

The group to use for initial Diffie-Hellman exchanges. This overrides IKE proposals. Select Group 1, 2, or 5. The default is Group 2. Groups with larger numbers use longer Diffie-Hellman values and are more secure, but at the cost of more computation. Do not use Group 1 unless you need compatibility with older IKE implementations.

PFS group

The group to use for initial Diffie-Hellman exchanges when using perfect forward secrecy (PFS). With PFS, the key generation process will be restarted each time the connection requires a new key; new keys will not be derived from previous key data. The default is not to use PFS.

Select Group 1, 2, or 5. Groups with larger numbers use longer Diffie-Hellman values and are more secure, but at the cost of more computation.

Phase 1 and Phase 2 SA Lifetime

The default lifetime for both the IKE and IPsec SAs. This lifetime is overridden by the lifetimes specified in the individual proposals.

Lifetime name

The name of the default lifetime.

Require rekeying after seconds

The amount of time, in seconds, for a connection to exist before it is stopped, unless rekeying has completed. For IPsec SAs, rekeying begins when approximately 80-90 percent of the time has elapsed. The connection will be available after new keys are generated and distributed. The default depends on the proposal you choose. If a connection is unused for two times the number of seconds, it is removed.

For IKE SAs, the connection is removed when the specified amount of time has elapsed. The connection is recreated when additional Phase 2 exchanges are required or in response to new IP traffic.

Require rekeying after Kbytes

The amount of data, in kilobytes, that an IPsec connection will pass through before it is stopped, unless rekeying has completed. Rekeying begins when approximately 80-90 percent of the data has been passed through. The connection will be available after new keys are generated and distributed. The default depends on the proposal you choose. This lifetime is ignored for IKE SAs.

4.6.6.9    Manual Keys Worksheet

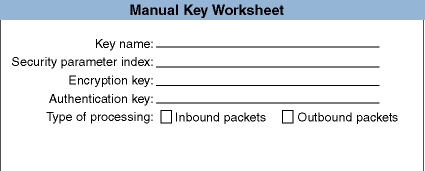

Figure 4-21 shows the IPsec Manual Keys Worksheet. You only need to complete the worksheet if you want to use manually created keys for authentication and encryption of packets (checked manual configuration for the Obtain keys field on the IPsec Proposal Worksheet). The following sections explain the information you need to record on this worksheet. If you are viewing this manual on line, you can use the print feature to print a copy of the worksheet.

Note

If you use manual keys, your proposal must only specify one protocol. For AH, you can specify only one authentication algorithm. For ESP, you can specify only one authentication, only one encryption algorithm, or one of each. You cannot use a proposal that specifies more than one authentication or encryption algorithm.

Figure 4-21:  IPsec Manual Keys Worksheet

Key name

The name of the manual key.

Security Parameter Index

A non-zero 32-bit number that specifies the Security Parameters Index (SPI) in the corresponding AH or ESP header. If you use manual keys together with IKE, you must specify an SPI value between 257 and 4095, inclusive. Values in this range are not automatically assigned by IKE.

Encryption key

An ASCII text string or a string of hexadecimal digits (beginning with 0x) that specifies the encryption key to be used by the encryption algorithm. The following table shows the required key lengths for each algorithm:

Algorithm ASCII Key Length (in characters) Hex Key Length (in digits)
3DES 24 (192 bits) 48 (192 bits)
AES 16 (128 bits) 32 (128 bits)
  24 (192 bits) 48 (192 bits)
  32 (256 bits) 64 (256 bits)
DES 8 (64 bits) 16 (64 bits)

Specify an encryption key only if your proposal specifies encryption.

Note

Randomly generated hexadecimal strings are generally more secure than ASCII strings.

Authentication key

An ASCII text string or a string of hexadecimal digits (beginning with 0x) that specifies the authentication key to be used by the authentication algorithm. The following table shows the required key lengths for each algorithm:

Algorithm ASCII Key Length (in characters) Hex Key Length (in digits)
HMAC MD5 16 (128 bits) 32 (128 bits)
HMAC SHA 20 (160 bits) 40 (160 bits)

Specify an authentication key only if your proposal specifies authentication.

Note

Randomly generated hexadecimal strings are generally more secure than ASCII strings.

Type of processing

The packets to which to apply the manual key. If the key applies to inbound packets, check Inbound packets. If the key applies to outbound packets, check Outbound packets. If the key applies to both inbound and outbound packets, check both boxes.

4.6.7    Configuring Systems in Sample IPsec Configurations

This section describes each sample configuration presented in Section 4.1 and shows how selected systems are configured in each example. In each case, completed worksheets and their information are the best practice for configuring IPsec on these systems. In some cases, this section also presents additional options for you to consider in the configuration. In addition, this section describes how to configure a connection for selected traffic.

4.6.7.1    Configuring a Host-to-Host Connection

In Figure 4-1, Host A and Host F communicate over a secure connection through the Internet. The following is a sample completed IPsec Connection Worksheet for Host A:

The IPsec Connection Worksheet for Host F is similar to Host A's worksheet, except that the information in the remote and local IP address sections are reversed.

Because the traffic traverses the unsecure Internet, Host A and Host F require both authentication and encryption for transport mode. The following is a sample completed IPsec Proposal Worksheet for Host A that specifies this information:

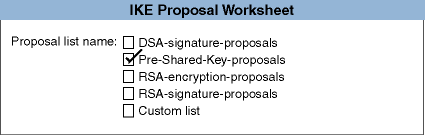

In this configuration, only two hosts are communicating, so they will use pre-shared keys to protect their IKE exchanges. The following is a sample portion of a completed IKE Proposal Worksheet for Host A:

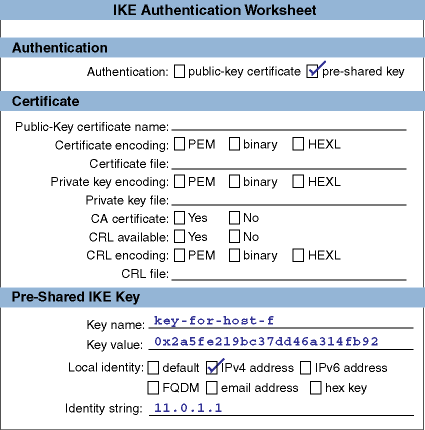

The pre-shared key information is specified in the following sample portion of a completed IKE Authentication Worksheet for Host A:

No special IKE options are required in this configuration.

4.6.7.2    Configuring a Secure Gateway-to-Secure Gateway Connection

In Figure 4-2, Secure GW A and Secure GW B maintain a secure tunnel through the Internet. This secure tunnel ties the two geographically separate subnets into a VPN. The following is a sample completed IPsec Connection Worksheet for Secure GW A:

Note that the selectors now specify a subnet address rather than an IP address as in Section 4.6.7.1. The IPsec Connection Worksheet for Secure GW B is similar to Secure GW A's worksheet, except that the information in the remote and local IP address sections are reversed.

The best proposals for this configuration are ESP tunnel proposals. The IP addresses of the remote and local secure gateway are required. The following is a sample completed portion of the IPsec Proposal Worksheet:

The IPsec Proposal Worksheet for Secure GW 2 would reverse the IP addresses of the local and remote secure gateway.

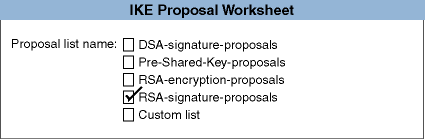

The two gateways will negotiate RSA signature proposals to protect their IKE exchanges. The following is a sample portion of a completed IKE Proposal Worksheet:

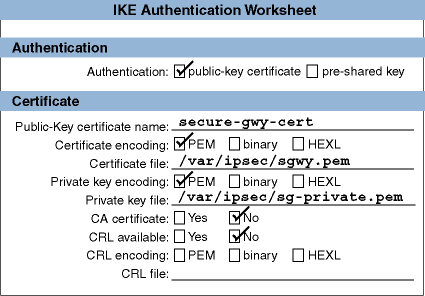

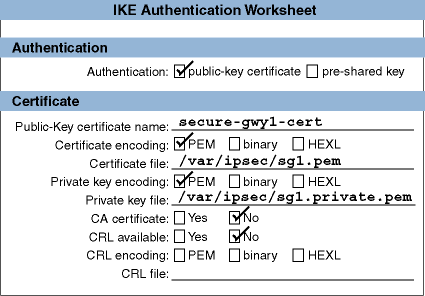

The public-key certificate information is recorded in the following IKE Authentication Worksheet:

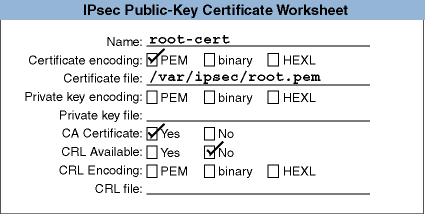

In the preceding worksheet, we specified the certificate file and the private key file for encryption operations.

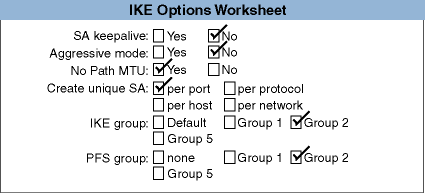

This configuration will use Perfect Forward Secrecy (PFS) to ensure that an existing key is not used to derive any additional keys. This information is specified in the following completed IKE Options Worksheet:

Because Secure GW A has specified public-key certificate information, the administrator must also specify root certificate or other authorized signing certificate information for the corresponding public-key certificate. The following is a completed IPsec Public-Key Certificate Worksheet:

4.6.7.3    Configuring a Host-to-Secure Gateway Connection

In Figure 4-3, Host D communicates over a secure tunnel through the Internet with a secure gateway. The following is a sample completed IPsec Connection Worksheet for Host D:

Note that the remote IP address selector specifies an IP subnet and the local IP address selector is a single IP address. The IPsec Connection Worksheet for the secure gateway is similar to Host D's worksheet, except that the information in the remote and local IP address sections are reversed.

Because Host D is acting as its own secure gateway, the best proposals for this configuration, as in the previous configuration, are ESP tunnel proposals. Once again, the IP addresses of the remote and local secure gateway are required. The following is a sample completed portion of the IPsec Proposal Worksheet:

The IPsec Proposal Worksheet for the secure gateway would reverse the IP addresses of the local and remote secure gateway.

This configuration will also use RSA signature proposals for IKE authentication. The public-key certificate information is recorded on the following sample IKE Authentication Worksheet:

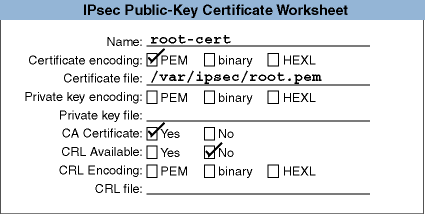

As in the previous configuration, the administrator must also specify root certificate or other authorized signing certificate information for the corresponding public-key certificate. The following is a completed IPsec Public-Key Certificate Worksheet:

4.6.7.4    Configuring a Connection for Specific Traffic

The previous configurations show how to secure all traffic between the various systems. However, you might not want to secure all traffic, but rather traffic for a particular protocol or application, for example, File Transfer Protocol (FTP). FTP has a data channel (for data traffic) on port 20 and a control channel (for commands and replies) on port 21. This section describes how to configure Host A and Host F in Figure 4-1 to apply IPsec protection to FTP traffic in addition to the default connections.

For Host A, create an ftp-server connection with the the following selectors:

In addition, create an ftp-client connection with the the following selectors:

Then, select the appropriate action and proposals.

For Host F, also create ftp-client and ftp-server connections, but reverse the local and remote IPv4 addresses.

If you only want to protect FTP traffic, you would then create a connection on each node that passes all traffic without protection in case the FTP connections do not work. That way you do not isolate your host from all network connectivity. The remote and local selectors would be for all IPv4 addresses, any protocol, and any port. Alternatively, if you want to protect other traffic you can create additional connections after the FTP connections.

4.7    Configuring IPsec

Use the SysMan Menu application of the Common Desktop Environment (CDE) Application Manager to configure IPsec. This section describes how to configure your system as either an IPsec host or a secure gateway.

4.7.1    Configuring a Host

To configure IPsec on a host, do the following:

  1. From the SysMan Menu, select Networking->Additional Network Services->Configure Internet Protocol Security (IPsec) to display the IPsec main window.

    Alternatively, enter the following command on the command line:

    # /usr/sbin/sysman ipsec

    If configuring IPsec for the first time, an informational dialog box is displayed that tells you to define secure connections before enabling IPsec. If you enable IPsec without defining secure connections, all packets into and out of the system are discarded; no traffic will flow. Select OK.

    The IPsec main window displays configured secure connections and configured public-key certificates.

  2. Select Enable IP Security (IPsec) at the top of the window.

  3. Select Add. The Add/Modify a Secure Connection dialog box is displayed.

  4. Enter a connection name.

  5. Select Add to add a remote IP address selector. The Add/Modify Selector dialog box is displayed. Do the following:

    1. Select a selector type.

    2. Enter an IP address (if you are communicating with a single host), a subnet address (if you are communicating with a secure gateway), or the first address (if you are communicating with a range of addresses).

    3. Enter the size of the subnet mask, if you are selecting an IP subnet.

    4. Enter the last address, if you are selecting a range of addresses.

    5. Select an upper layer protocol to match. By default, all protocols are selected.

    6. Enter a port number to match, if you want to restrict the selector to a specific port number. By default, all port numbers are selected.

    7. Select OK to accept the data and close the Add/Modify Selector dialog box. If you are finished adding remote and local addresses, go to step 7.

  6. Select Add to add a local IP address selector. Go to step 5a.

  7. Select an action to apply to the packets matching the selectors. The default is to apply IPsec protection.

  8. Select Next to accept the data and close the Add/Modify a Secure Connection dialog box. The Add/Modify Connection: IPsec Proposal dialog box is displayed. Do the following:

    1. Select an IPsec proposal from the proposal list.

    2. If you are communicating with a secure gateway, specify the IP address of the secure gateway (remote) and your system's IP address (local).

    3. Specify if you will use IKE to obtain keys or use manual configuration. Select Next to accept the data and close the Add/Modify Connection: IPsec Proposal dialog box.

      If you selected manual configuration and have created a custom proposal list with only one proposal, the Add/Modify Connection: Manual Keys dialog box displays. Go to step 9. If you selected the IKE protocol, the Add/Modify Connection: IKE Proposal dialog box displays. Go to step 11.

  9. Select Add to add a manual key and display the Modify Keys: Add/Modify IPsec Key dialog box. Do the following:

    1. Enter the key name.

    2. Enter the Security Parameter Index (SPI).

    3. Enter keys for the algorithms that are required by the proposals you chose. Select OK to accept the data and close the Modify Keys: Add/Modify IPsec Key dialog box.

  10. Select whether you want to apply the key(s) to inbound packets or outbound packets, or both. If you want to specify additional keys, go to step 9. If you are finished specifying manual keys, go to step 18.

  11. Select an IKE proposal from the proposal list. Select Next to accept the data, close the Add/Modify Connection: IKE Proposal dialog box, and display the Add/Modify Connection: IKE Authentication dialog box.

  12. Select whether you want to authenticate IKE exchanges with a public-key certificate or a pre-shared-key.

  13. If you selected public-key certificate, select Add to add an IKE certificate. The Add/Modify Certificates dialog box is displayed. Do the following:

    1. Enter a certificate name, select a certificate encoding method, and enter the local path to the certificate file.

    2. If the certificate authenticates your system, select the encoding method and enter the local path to the private key file.

    3. If the certificate is trusted to sign other certificates, select CA Certificate. Otherwise, go to step f.

    4. If a Certificate Revocation List (CRL) is not available, select No Certificate Revocation List (CRL) Available. Go to step f.

    5. Select an encoding method for the CRL and enter a local path to the CRL file.

    6. Select OK to accept the data and close the Add/Modify Certificates dialog box.

  14. Select a certificate for the IKE exchange. Go to step 17.

  15. If you selected pre-shared key, select Add an IKE pre-shared key. The Add/Modify IKE Keys dialog box is displayed. Do the following:

    1. Enter a key name and key value.

    2. Select a local identity type.

    3. Enter an identity string, usually your IP address or domain name.

    4. Select OK to accept the data and close the Add/Modify IKE Keys dialog box.

  16. Select a pre-shared key for the IKE exchange.

  17. Select Next to close the Add/Modify Connection: IKE Authentication dialog box and display the Add/Modify Connection: Optional IKE Parameters dialog box. Do the following:

    1. Select any optional parameters.

    2. Select an IKE group number for initial Diffie-Hellman exchanges, if different from the IKE proposals.

    3. If using Perfect Forward Secrecy (PFS), select a group number future for Diffie-Hellman exchanges.

    4. Select a default lifetime if the proposal does not specify a lifetime.

    5. Select Finish to accept the data and close the Add/Modify Connection: Optional IKE Parameters dialog box.

  18. An informational dialog box is displayed that tells you the connection has been created. Select OK to close this dialog box.

  19. If you need to specify additional public-key certificates, select Add in the Public-Key Certificates field to display an Add/Modify Certificates dialog box into which you can enter information for the certificate. Do the following:

    1. Enter the certificate name, select a certificate encoding method, and enter a local path to the certificate file.

    2. If the certificate authenticates your system, select a private key encoding method and enter a local path to the private key file.

    3. If the certificate is trusted to sign other certificates, select CA Certificate. Otherwise, go to step f.

    4. If a Certificate Revocation List (CRL) is not available, select No Certificate Revocation List (CRL) Available. Go to step f.

    5. Select an encoding method for the CRL and enter a local path to the CRL file.

    6. Select OK to accept the data and close the Add/Modify Certificates dialog box.

  20. Select OK in the IPsec main window to save the configuration information. Whether or not IPsec is already running on your system, the Restart IPsec? dialog box is displayed. If you want to start or restart IPsec, select OK; otherwise, select No. If you select No, you must reboot the system to start or restart IPsec.

See Section 4.5.2 for information on solving possible interoperability problems.

4.7.2    Configuring a Secure Gateway

Before configuring IPsec on a router or a gateway, make sure that the system is configured as an IP router. See Section 2.3.5 for more information on configuring the system as an IP router.

To configure IPsec on a router or gateway, do the following:

  1. From the SysMan Menu, select Networking->Additional Network Services->Set up IP Security (IPsec) to display the IPsec main window.

    Alternatively, enter the following command on the command line:

    # /usr/sbin/sysman ipsec

    If configuring IPsec for the first time, an informational dialog box is displayed that tells you to define secure connections before enabling IPsec. If you enable IPsec without defining secure connections, all packets into and out of the system are discarded; no traffic will flow. Select OK.

    The IPsec main window displays configured secure connections and configured public-key certificates.

  2. Select Enable IP Security (IPsec) at the top of the window.

  3. Select Add. The Add/Modify a Secure Connection dialog box is displayed.

  4. Enter a connection name.

  5. Select Add to add a remote IP address selectors. The Add/Modify Selector dialog box is displayed. Do the following:

    1. Select a selector type.

    2. Enter an IP address (if you are communicating with a single host), a subnet address (if you are communicating with a secure gateway), or the first address (if you are communicating with a range of addresses).

    3. Enter the size of the subnet mask, if you are selecting an IP subnet.

    4. Enter the last address, if you are selecting a range of addresses.

    5. Select an upper layer protocol to match. By default, all protocols are selected.

    6. Enter a port number to match, if you want to restrict the selector to a specific port number. By default, all port number are selected.

    7. Select OK to accept the data and close the Add/Modify Selector dialog box. If you are finished selecting remote and local addresses, go to step 7.

  6. Select Add to add a local IP address selector. Go to step 5a.

  7. Select an action to apply to the packets matching the selectors. The default is to apply IPsec protection.

  8. Select Next to accept the data and close the Add/Modify a Secure Connection dialog box. The Add/Modify Connection: IPsec Proposal dialog box is displayed. Do the following:

    1. Select an IPsec proposal from the proposal list.

    2. If you are communicating with a secure gateway or a host, specify the IP address of the remote system and your system's IP address (local).

    3. Specify if you will use IKE to obtain keys or use manual configuration. Select Next to accept the data and close the IPsec Proposal dialog box.

      If you selected manual configuration and have created a custom proposal list with only one proposal, the Add/Modify Connection: Manual Keys dialog box displays. Go to step 9. If you selected the IKE protocol, the Add/Modify Connection: IKE Proposal dialog box displays. Go to step 11.

  9. Select Add to add a manual key and display the Manual Keys: Add/Modify IPsec Key dialog box. Do the following:

    1. Enter the key name.

    2. Enter the Security Parameter Index (SPI).

    3. Enter keys for the algorithms that are required by the proposals you chose. Select OK to accept the data and close the Manual Keys: Add/Modify IPsec Key dialog box.

  10. Select whether you want to apply the key(s) to inbound packets, outbound packets, or both. If you want to specify additional keys, go to step 9. If you are finished specifying manual keys, select Finish. Go to step 18.

  11. Select an IKE proposal from the proposal list. Select Next to accept the data, close the Add/Modify Connection: IKE Proposal dialog box, and display the Add/Modify Connection: IKE Authentication dialog box.

  12. Select whether you want to authenticate IKE exchanges with a public-key certificate or a pre-shared-key.

  13. If you selected public-key certificate, select Add to add an IKE certificate. The Add/Modify Certificates dialog box is displayed. Do the following:

    1. Enter a certificate name, select a certificate encoding method, and enter the local path to the certificate file.

    2. If the certificate authenticates your system, select the encoding method and enter the local path to the private key file.

    3. If the certificate is trusted to sign other certificates, select CA Certificate. Otherwise, go to step f.

    4. If a Certificate Revocation List (CRL) is not available, select No Certificate Revocation List (CRL) Available. Go to step f.

    5. Select an encoding method for the CRL and enter a local path to the CRL file.

    6. Select OK to accept the data and close the Add/Modify Certificates dialog box.

  14. Select a certificate for the IKE exchange. Go to step 17.

  15. If you selected pre-shared key, select Add an IKE pre-shared key. The Add/Modify IKE Keys dialog box is displayed. Do the following:

    1. Enter a key name and key value.

    2. Select a local identity type.

    3. Enter an identity string, usually your IP address or domain name.

    4. Select OK to accept the data and close the Add/Modify IKE Keys dialog box.

  16. Select a pre-shared key for the IKE exchange.

  17. Select Next to close the Add/Modify Connection: IKE Authentication dialog box and display the Add/Modify Connection: Optional IKE Parameters dialog box. Do the following:

    1. Select any optional parameters.

    2. Select an IKE group number for initial Diffie-Hellman exchanges, if different from the IKE proposals.

    3. If using Perfect Forward Secrecy (PFS), select a group number future for Diffie-Hellman exchanges.

    4. Select a default lifetime if the proposal does not specify a lifetime.

    5. Select Finish to accept the data and close the Add/Modify Connection: Optional IKE Parameters dialog box.

  18. An informational dialog box is displayed that tells you the connection has been created. Select OK to close this dialog box.

  19. If you need to specify additional public-key certificates, select Add in the Public-Key Certificates field to display an Add/Modify Certificates dialog box into which you can enter information for the certificate. Do the following:

    1. Enter the certificate name, select a certificate encoding method, and enter a local path to the certificate file.

    2. If the certificate authenticates your system, select a private key encoding method and enter a local path to the private key file.

    3. If the certificate is trusted to sign other certificates, select CA Certificate. Otherwise, go to step f.

    4. If a Certificate Revocation List (CRL) is not available, select No Certificate Revocation List (CRL) Available. Go to step f.

    5. Select an encoding method for the CRL and enter a local path to the CRL file.

    6. Select OK to accept the data and close the Add/Modify Certificates dialog box.

  20. Select OK in the IPsec main window to save the configuration information. Whether or not IPsec is already running on your system, the Restart IPsec? dialog box is displayed. If you want to start or restart IPsec, select OK; otherwise, select No. If you select No, you can reboot the system to start or restart IPsec, or start or reload the ipsecd daemon (see Section 4.8.1).

See Section 4.5.2 for information on solving possible interoperability problems.

4.8    Postconfiguration Tasks

After using the SysMan application to configure IPsec, you might want to do the following:

4.8.1    Managing the IPsec Daemon

You typically start IPsec and the IPsec daemon (ipsecd) when you create a new connection or modify an existing connection by using the SysMan IPsec application.

When you start IPsec through SysMan, the system is in IP secure mode. In this mode, the system operates under the principle that it is better to block all IP traffic than to accidentally risk sending sensitive data in the clear. The ipsecd daemon must be running with a valid policy in order for any IP traffic to flow into and out of the system. This may be overly restrictive when initially configuring and testing IPsec.

To take the system out of IP secure mode, enter the following command:

# /sbin/init.d/ipsec unsecure

You can also start, stop, and reload the IPsec daemon (ipsecd) any time after you create a new connection or modify an existing connection.

To start ipsecd after IPsec has been enabled through SysMan, enter the following command:

# /sbin/init.d/ipsec start

To stop ipsecd, enter the following command:

# /sbin/init.d/ipsec stop

If the system is in IP secure mode, no IP traffic will flow into or out of the system. If IPsec processing has been disabled through SysMan, the system is taken out of "IP secure" mode.

To reload ipsecd, enter the following command:

# /sbin/init.d/ipsec reload

This forces ipsecd to reread its SPD file and to enforce a new security policy. Existing SAs will remain in effect until they reach the end of their configured lifetimes.

See ipsecd(8) for more information.

4.8.2    Monitoring Security Associations

In this implementation of IPsec, the ipsecd daemon collects IPsec SA and IKE SA information while it is running. You can use the netstat command to monitor both IPsec and IKE SAs.

To monitor IPsec SAs (in verbose mode), enter the following command:

# /usr/sbin/netstat -x -v
Current Inbound: AH: 0  ESP: 1  IPCOMP: 1
Current Outbound:  AH: 0  ESP: 1  IPCOMP: 1
Total Inbound: AH: 0  ESP: 1  IPCOMP: 1
Total Outbound:  AH: 0  ESP: 1  IPCOMP: 1

Type     Local / Remote Selector                      SPI           Pkts  Errors
    AuthErr  CiphErr  Replays   Algorithms
    Lifetime (used/total)
ipc/tr/o 16.140.64.106                                0x8ae70002      61       0
         16.140.64.223
          0        0        0   deflate
    85/1800 seconds
esp/tr/o 16.140.64.106                                0xcdd61015      61       0
         16.140.64.223
          0        0        0   3des-cbc/hmac-sha1-96
    85/1800 seconds 5/204800 KB
ipc/tr/i 16.140.64.106                                0x27db0002      61       0
         16.140.64.223
          0        0        0   deflate
    85/1800 seconds
esp/tr/i 16.140.64.106                                0x01f2eb43      61       0
         16.140.64.223
          0        0        0   3des-cbc/hmac-sha1-96
    85/1800 seconds 7/204800 KB

In this display there are separate input and output SAs for each connection. If a connection is protected with both AH and ESP, each has an SA. A description of the fields is as follows:

Type

The type of the SA: ah or esp, tn (tunnel) or tr (transport), i (inbound packets) or o (outbound packets).

Errors

The number of packets that failed decryption (CiphErr), authentication (AuthErr), or replay (Replays) checks.

Algorithms

The cipher and HMAC algorithms that the SA uses.

Lifetime

The SA lifetime, displayed as: seconds elapsed / seconds of hard lifetime and Kbytes transferred / Kbyte hard lifetime.

To monitor IKE SAs (in verbose mode), enter the following command:

# /usr/sbin/netstat -X -v

Total Phase-1: 1  Failed Phase-1: 0
Total QM: 1  Failed QM: 0

I/R Local / Remote Identifiers           Bytes
 I  ipv4(16.140.64.106)                  756
    ipv4(16.140.64.223) (at 16.140.64.223:500)
    Pre-shared Keys / 3des-cbc / sha1 / hmac-sha1
    Created: Fri Nov 02 2001 10:15:40
    Used: Fri Nov 02 2001 10:15:41
    Expires: Fri Nov 02 2001 11:15:40
    I-Cookie: 0x575059dd31000000 R-Cookie: 0x1aa850255c000003

I/R indicates whether the host was the Initiator or Responder. An asterisk (*) before the I or R indicates that the IKE negotiation is still in progress. Bytes is the number of bytes of data carried over the SA. Also displayed are the IKE authentication mode; cipher, hash, and HMAC algorithms; the time the SA was created, last used, and expiration date and time; and the Initiator and Responder cookies. The cookies are similar to the SPI in that the pair uniquely identifies the IKE SA.

4.8.3    Monitoring IPsec

You can also use the netstat command to monitor the IPsec kernel packet processing engine. You can display these statistics as long as IPsec is configured in the kernel. To do this, enter the following command:

# netstat -p ipsec
ipsec:
        11992495 total packets processed by IPsec engine
        11990029 IP packets processed by IPsec engine
        0 AH headers processed
        26 ESP headers processed
        14 IPCOMP headers processed
        8 packets triggered an IKE action
        2477 packets dropped by IPsec
        11987544 packets passed through by IPsec
