Display Lists
  • Topics:
    • Using display lists  + immediate mode to increase performance
  •  What is a display list?
    • A group of OpenGL commands which are stored for later execution
  •  What is immediate mode?
    • OpenGL commands which are executed immediately
  • All examples up to this point have been immediate mode

    •












































  Why use Display Lists?
  • Ideal for geometry which is rendered multiple times
    • Also good for OpenGL state changes

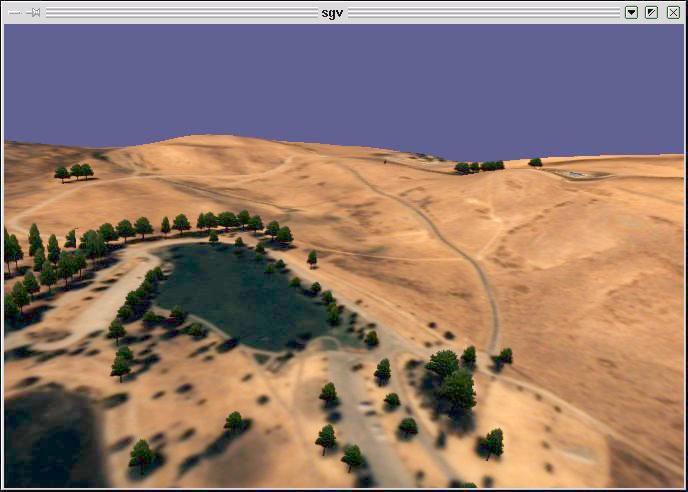

    image from http://www.openscenegraph.org/screenshots/

  •  Display lists can be a critical performance enhancement for remote OpenGL rendering
  • Local rendering can benefit from display lists:
    • Local dedicated memory may be used on some HW implementations
    • DL data may be stored native data formats for optimized performance

































  Example


  • Relevant Code:
      •
      /* Create display list with Torus and initialize state*/
      static void init(void)
      {
        theTorus = glGenLists (1);
        glNewList(theTorus, GL_COMPILE);
        torus(8, 25);
        glEndList();
        glShadeModel(GL_FLAT);
        glClearColor(0.0, 0.0, 0.0, 0.0);
      }

      void display(void)
      {
        glClear(GL_COLOR_BUFFER_BIT);
        glColor3f (1.0, 1.0, 1.0);
        glCallList(theTorus);
        glFlush();
      }
































  Design Philosophy
  • Display lists are static (non-modifyable)
  • DL optimizations are not guaranteed for any particular platform
    • They will never be slower than immediate mode
  • Jumping to (executing) a display list incurs a small overhead
    • May be slower if the DL is small
  • Good candidates for display lists:
    • Matrix operations
    • Raster bitmaps and images
    • Lights, material properties and lighting models
    • Textures
    • Polygon stipple patterns
    • NOTE!  some OpenGL commands are context sensitive (glMaterial()) and should not be display listed
































  Creating and Executing


  • glNewList() / glEndList() surround the list definition
  • The list is invoked by glCallList()

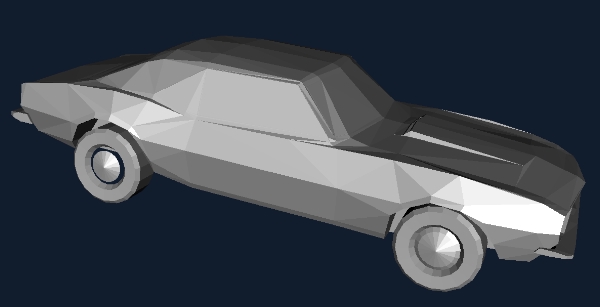

  • Note that glTranslate() is called between DL calls

    •













































  Naming and Creating a Display List
  • Each display list has a unique integer index
    • glGenLists() can generate unique index values (to avoid accidental over-writing)


    listIndex = glGenLists(1);
    if (listIndex != 0) {
      glNewList(listIndex,GL_COMPILE);
      ...
      glEndList();
    }


  •  When a display list is created it is stored with the current graphics context
    • DL's are destroyed when the context is destroyed (NOTE: check the implementation!  This may be a big deal ...)

































  What's stored in a Display List
  • Only values for expressions are stored not variable references

    •









    GLfloat color_vector[3] = {0.0, 0.0, 0.0};
    glNewList(1, GL_COMPILE);
    glColor3fv(color_vector);
    glEndList();
    color_vector[0] = 1.0;

    The color of the object will always be black ...


  •  Not all OGL commands can be stored within a DL
    • Those which set and retrieve client state
    • If they are used in a definition, they are executed immediately

      •

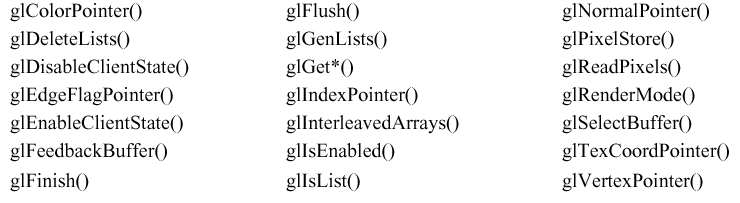

      Hint:  Those OGL calls which return values



































  Executing a Display List
  • glCallList() will execute the pre-defined DL
  • You can mix immediate-mode commands with DLs

    •









  •  Display lists can be hierarchical (at least 64 levels)
    • Query with glGetIntegerv(GL_MAX_LIST_NESTING)

      •





      glNewList(listIndex,GL_COMPILE); glCallList(handlebars);
      glCallList(frame);
      glTranslatef(1.0,0.0,0.0);
      glCallList(wheel);
      glTranslatef(3.0,0.0,0.0);
      glCallList(wheel);
      glEndList();
































  Managing DL Indices
  • glIsList(GLuint list) will return GL_TRUE if this list index exists (if you don't want to use glGenLists())
  • Delete lists with glDeleteLists(GLuint list, GLsizei range)

    •










































  Executing Multiple Display Lists
  • Several DLs can be executed in succession
    • Place the indices in an array
    • call glCallLists()
    • good for symbology or fonts


    void initStrokedFont(void)
    {
      GLuint base;
      base = glGenLists(128);
      glListBase(base);
      glNewList(base+ A , GL_COMPILE); drawLetter(Adata);
      glEndList();   glNewList(base+ E , GL_COMPILE);
      drawLetter(Edata); glEndList(); glNewList(base+ P , GL_COMPILE);
      drawLetter(Pdata); glEndList(); glNewList(base+ R , GL_COMPILE);
      drawLetter(Rdata); glEndList(); glNewList(base+ S , GL_COMPILE);
      drawLetter(Sdata); glEndList(); glNewList(base+   , GL_COMPILE);
      /* space character */
      glTranslatef(8.0, 0.0, 0.0);
      glEndList();
    }



    void printStrokedString(GLbyte *s)
    {
      GLint len = strlen(s);
      glCallLists(len, GL_BYTE, s);
    }
