Changing Material Properties


GLfloat no_mat[] = { 0.0, 0.0, 0.0, 1.0 };
GLfloat mat_ambient[] = { 0.7, 0.7, 0.7, 1.0 };
GLfloat mat_ambient_color[] = { 0.8, 0.8, 0.2, 1.0 }; GLfloat mat_diffuse[] = { 0.1, 0.5, 0.8, 1.0 };
GLfloat mat_specular[] = { 1.0, 1.0, 1.0, 1.0 };
GLfloat no_shininess[] = { 0.0 };
GLfloat low_shininess[] = { 5.0 };
GLfloat high_shininess[] = { 100.0 };
GLfloat mat_emission[] = {0.3, 0.2, 0.2, 0.0}; glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

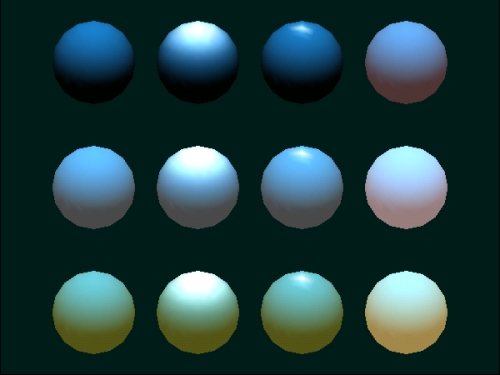

/* draw sphere in first row, first column * diffuse reflection only; no ambient or specular */
glPushMatrix();
glTranslatef (-3.75, 3.0, 0.0);
glMaterialfv(GL_FRONT, GL_AMBIENT, no_mat);
glMaterialfv(GL_FRONT, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT, GL_SPECULAR, no_mat);
glMaterialfv(GL_FRONT, GL_SHININESS, no_shininess); glMaterialfv(GL_FRONT, GL_EMISSION, no_mat);
glutSolidSphere(1.0, 16, 16);
glPopMatrix();

...



































Changing Material Properties (cont)



































  Changing Material Porperties with glColorMaterial()

void glColorMaterial(GLenum face, GLenum mode);

    A change to the current color (using glColor*())
    immediately updates the specified material properties.
    The face parameter can be GL_FRONT, GL_BACK, or GL_FRONT_AND_BACK (the default).
    The mode parameter can be GL_AMBIENT, GL_DIFFUSE, GL_AMBIENT_AND_DIFFUSE (the default), GL_SPECULAR, or GL_EMISSION.
    At any given time, only one mode is active.
    No effect on color-index lighting.

    glEnable(GL_COLOR_MATERIAL);
    glColorMaterial(GL_FRONT, GL_DIFFUSE);
    /* now glColor* changes diffuse reflection */
    glColor3f(0.2, 0.5, 0.8);
    /* draw some objects here */


    glColorMaterial(GL_FRONT, GL_SPECULAR);
    /* glColor* no longer changes diffuse reflection */
    /* now glColor* changes specular reflection */
    glColor3f(0.9, 0.0, 0.2);
    /* draw other objects here */
    glDisable(GL_COLOR_MATERIAL);

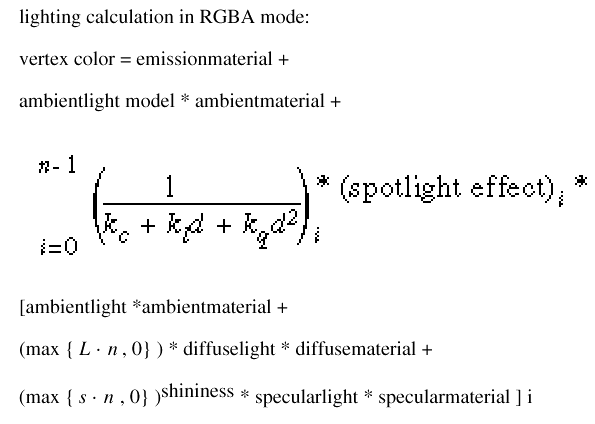

  The lighting calculation (summary)


































  Homework

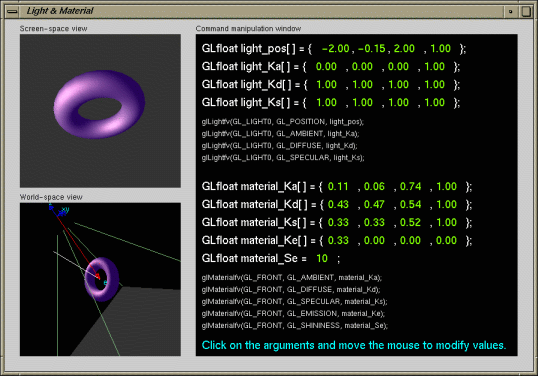

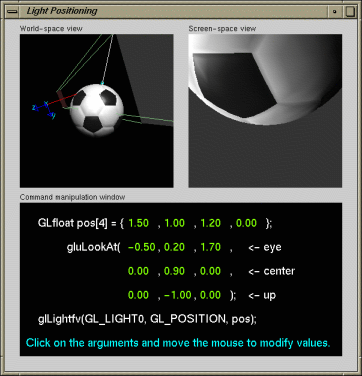

  • Download the lightposition tar file and run the programs "lightposition" and "lightmaterial".  Manipulate the values to change lighting and material definitions.


    •

  • Extra Credit: Go back to the VRML documentation and create a scene with objects which have material definitions and lights.

    •
