The screen snapshots below show views of a particle system rendered as OpenGL points. The SGIS_point_parameters extension (supported by SGI's InfiniteReality) is used to attenuate point size based on eye distance. The program works fine without the extension, but the points are not eye distance attenuated.
The system itself is a bunch of particles that explode from a central point outward. The particles have a random velocity, angle of direction, and angle of trajectory. The particles bounce off the ground surface provided. This is a really simple particle system. You could be much much fancier. Consider cool effects like using a 1D or 2D texture to add color variations. OpenGL's texture coordinate facility can be used in clever ways. You can also combine these particle effects with fog for distance attenuation of color. A filtering blend can be used to create effects to simulate filtering effects due to gases or smoke.
Note that you could do the eye distance attenuation without an OpenGL extension. The advantage of the extension is that you let OpenGL do the eye distance calculation. Also, unextended OpenGL does not allow you to set the point size within a glBegin/glEnd (for good reason).

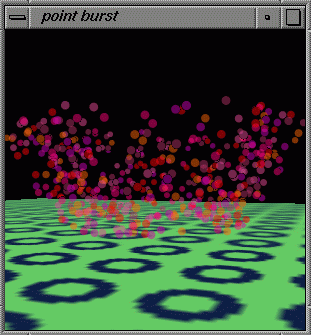

Several hundred particles soon after expulsion. The particles are drawn as antialiased OpenGL points with blending enabled.

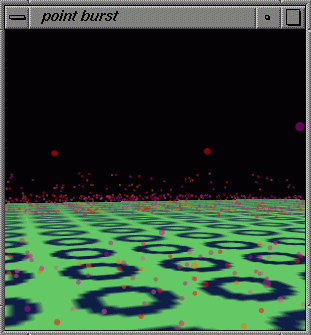

Late into the explosion, you can see that the nearby particles are larger than the far off particles. The particles form a ring around the explosion center. The attenuation is proportional to the inverse square of the eye distance. Constant or linear attenuation (or combinations) are also possible with the extension.
It is easy to see in the jumble of particles below which particles are closer (larger) and which are further away (smaller).

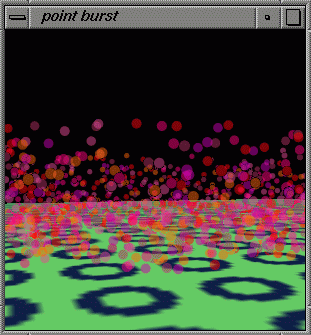

Thousands of particles with point antialiasing disabled. Notice the default blocky appearance of OpenGL points if antialiasing is not enabled.

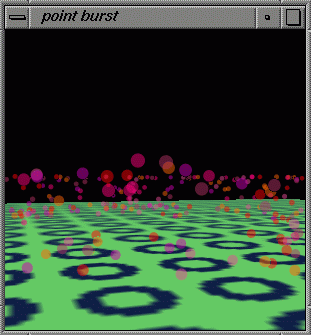

A smaller point size is used below.
The source code for pointblast.c follows:
/* Copyright (c) Mark J. Kilgard, 1997. */
/* This program is freely distributable without licensing fees
and is provided without guarantee or warrantee expressed or
implied. This program is -not- in the public domain. */
/* This example demonstrates how to render particle effects
with OpenGL. A cloud of pinkish/orange particles explodes with the
particles bouncing off the ground. When the SGIS_point_parameters
is present (supported on SGI's InfiniteReality hardware), the
particle size is attenuated based on eye distance. */
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h> /* for cos(), sin(), and sqrt() */
#include <GL/glut.h>
/* Some <math.h> files do not define M_PI... */
#ifndef M_PI
#define M_PI 3.14159265
#endif
#if 0 /* For debugging. */
#undef GL_SGIS_point_parameters
#endif
static GLfloat angle = -150; /* in degrees */
static int spin = 0;
static int moving, begin;
static int newModel = 1;
static float time;
static int repeat = 1;
int useMipmaps = 1;
int linearFiltering = 1;
static GLfloat constant[3] = { 1/5.0, 0.0, 0.0 };
static GLfloat linear[3] = { 0.0, 1/5.0, 0.0 };
static GLfloat quad[3] = { 0.25, 0.0, 1/60.0 };
#define MAX_POINTS 2000
static int numPoints = 500;
static GLfloat pointList[MAX_POINTS][3];
static GLfloat pointTime[MAX_POINTS];
static GLfloat pointVelocity[MAX_POINTS][2];
static GLfloat pointDirection[MAX_POINTS][2];
static int colorList[MAX_POINTS];
static int animate = 1, motion = 0;
static GLfloat colorSet[][4] = {
/* Shades of red. */
{ 0.7, 0.2, 0.4, 0.5 },
{ 0.8, 0.0, 0.7, 0.5 },
{ 1.0, 0.0, 0.0, 0.5 },
{ 0.9, 0.3, 0.6, 0.5 },
{ 1.0, 0.4, 0.0, 0.5 },
{ 1.0, 0.0, 0.5, 0.5 },
};
#define NUM_COLORS (sizeof(colorSet)/sizeof(colorSet[0]))
#define DEAD (NUM_COLORS+1)
#if 0 /* drand48 might be better on Unix machines */
#define RANDOM_RANGE(lo, hi) ((lo) + (hi - lo) * drand48())
#else
static float float_rand(void) { return rand() / (float) RAND_MAX; }
#define RANDOM_RANGE(lo, hi) ((lo) + (hi - lo) * float_rand())
#endif
#define MEAN_VELOCITY 3.0
#define GRAVITY 2.0
#define TIME_DELTA 0.025 /* The speed of time. */
/* Modeling units of ground extent in each X and Z direction. */
#define EDGE 12
void
makePointList(void)
{
float angle, velocity, direction;
int i;
motion = 1;
for (i=0; i<numPoints; i++) {
pointList[i][0] = 0.0;
pointList[i][1] = 0.0;
pointList[i][2] = 0.0;
pointTime[i] = 0.0;
angle = (RANDOM_RANGE(60.0, 70.0)) * M_PI/180.0;
direction = RANDOM_RANGE(0.0, 360.0) * M_PI/180.0;
pointDirection[i][0] = cos(direction);
pointDirection[i][1] = sin(direction);
velocity = MEAN_VELOCITY + RANDOM_RANGE(-0.8, 1.0);
pointVelocity[i][0] = velocity * cos(angle);
pointVelocity[i][1] = velocity * sin(angle);
colorList[i] = rand() % NUM_COLORS;
}
time = 0.0;
}
void
updatePointList(void)
{
float distance;
int i;
motion = 0;
for (i=0; i<numPoints; i++) {
distance = pointVelocity[i][0] * time;
/* X and Z */
pointList[i][0] = pointDirection[i][0] * distance;
pointList[i][2] = pointDirection[i][1] * distance;
/* Z */
pointList[i][1] =
(pointVelocity[i][1] - 0.5 * GRAVITY * pointTime[i])*pointTime[i];
/* If we hit the ground, bounce the point upward again. */
if (pointList[i][1] <= 0.0) {
if (distance > EDGE) {
/* Particle has hit ground past the distance duration of
the particles. Mark particle as dead. */
colorList[i] = NUM_COLORS; /* Not moving. */
continue;
}
pointVelocity[i][1] *= 0.8; /* 80% of previous up velocity. */
pointTime[i] = 0.0; /* Reset the particles sense of up time. */
}
motion = 1;
pointTime[i] += TIME_DELTA;
}
time += TIME_DELTA;
if (!motion && !spin) {
if (repeat) {
makePointList();
} else {
glutIdleFunc(NULL);
}
}
}
void
idle(void)
{
updatePointList();
if (spin) {
angle += 0.3;
newModel = 1;
}
glutPostRedisplay();
}
void
visible(int vis)
{
if (vis == GLUT_VISIBLE) {
if (animate && (motion || spin)) {
glutIdleFunc(idle);
}
} else {
glutIdleFunc(NULL);
}
}
void
recalcModelView(void)
{
glPopMatrix();
glPushMatrix();
glRotatef(angle, 0.0, 1.0, 0.0);
newModel = 0;
}
void
redraw(void)
{
int i;
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
if (newModel)
recalcModelView();
glDepthMask(GL_FALSE);
/* Draw the floor. */
glEnable(GL_TEXTURE_2D);
glColor3f(0.5, 1.0, 0.5);
glBegin(GL_QUADS);
glTexCoord2f(0.0, 0.0);
glVertex3f(-EDGE, -0.05, -EDGE);
glTexCoord2f(20.0, 0.0);
glVertex3f(EDGE, -0.05, -EDGE);
glTexCoord2f(20.0, 20.0);
glVertex3f(EDGE, -0.05, EDGE);
glTexCoord2f(0.0, 20.0);
glVertex3f(-EDGE, -0.05, EDGE);
glEnd();
/* Allow particles to blend with each other. */
glDepthMask(GL_TRUE);
glDisable(GL_TEXTURE_2D);
glBegin(GL_POINTS);
for (i=0; i<numPoints; i++) {
/* Draw alive particles. */
if (colorList[i] != DEAD) {
glColor4fv(colorSet[colorList[i]]);
glVertex3fv(pointList[i]);
}
}
glEnd();
glutSwapBuffers();
}
/* ARGSUSED2 */
void
mouse(int button, int state, int x, int y)
{
/* Scene can be spun around Y axis using left
mouse button movement. */
if (button == GLUT_LEFT_BUTTON && state == GLUT_DOWN) {
moving = 1;
begin = x;
}
if (button == GLUT_LEFT_BUTTON && state == GLUT_UP) {
moving = 0;
}
}
/* ARGSUSED1 */
void
mouseMotion(int x, int y)
{
if (moving) {
angle = angle + (x - begin);
begin = x;
newModel = 1;
glutPostRedisplay();
}
}
void
menu(int option)
{
switch (option) {
case 0:
makePointList();
break;
#if GL_SGIS_point_parameters
case 1:
glPointParameterfvSGIS(GL_DISTANCE_ATTENUATION_SGIS, constant);
break;
case 2:
glPointParameterfvSGIS(GL_DISTANCE_ATTENUATION_SGIS, linear);
break;
case 3:
glPointParameterfvSGIS(GL_DISTANCE_ATTENUATION_SGIS, quad);
break;
#endif
case 4:
glEnable(GL_BLEND);
break;
case 5:
glDisable(GL_BLEND);
break;
#if GL_SGIS_point_parameters
case 6:
glPointParameterfSGIS(GL_POINT_FADE_THRESHOLD_SIZE_SGIS, 1.0);
break;
case 7:
glPointParameterfSGIS(GL_POINT_FADE_THRESHOLD_SIZE_SGIS, 10.0);
break;
#endif
case 8:
glEnable(GL_POINT_SMOOTH);
break;
case 9:
glDisable(GL_POINT_SMOOTH);
break;
case 10:
glPointSize(2.0);
break;
case 11:
glPointSize(4.0);
break;
case 12:
glPointSize(8.0);
break;
case 13:
spin = 1 - spin;
if (animate && (spin || motion)) {
glutIdleFunc(idle);
} else {
glutIdleFunc(NULL);
}
break;
case 14:
numPoints = 200;
break;
case 15:
numPoints = 500;
break;
case 16:
numPoints = 1000;
break;
case 17:
numPoints = 2000;
break;
case 666:
exit(0);
}
glutPostRedisplay();
}
/* ARGSUSED1 */
void
key(unsigned char c, int x, int y)
{
switch (c) {
case 13:
animate = 1 - animate; /* toggle. */
if (animate && (motion || spin)) {
glutIdleFunc(idle);
} else {
glutIdleFunc(NULL);
}
break;
case ' ':
animate = 1;
makePointList();
glutIdleFunc(idle);
break;
case 27:
exit(0);
}
}
/* Nice floor texture tiling pattern. */
static char *circles[] = {
"....xxxx........",
"..xxxxxxxx......",
".xxxxxxxxxx.....",
".xxx....xxx.....",
"xxx......xxx....",
"xxx......xxx....",
"xxx......xxx....",
"xxx......xxx....",
".xxx....xxx.....",
".xxxxxxxxxx.....",
"..xxxxxxxx......",
"....xxxx........",
"................",
"................",
"................",
"................",
};
static void
makeFloorTexture(void)
{
GLubyte floorTexture[16][16][3];
GLubyte *loc;
int s, t;
/* Setup RGB image for the texture. */
loc = (GLubyte*) floorTexture;
for (t = 0; t < 16; t++) {
for (s = 0; s < 16; s++) {
if (circles[t][s] == 'x') {
/* Nice blue. */
loc[0] = 0x1f;
loc[1] = 0x1f;
loc[2] = 0x8f;
} else {
/* Light gray. */
loc[0] = 0xca;
loc[1] = 0xca;
loc[2] = 0xca;
}
loc += 3;
}
}
glPixelStorei(GL_UNPACK_ALIGNMENT, 1);
if (useMipmaps) {
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER,
GL_LINEAR_MIPMAP_LINEAR);
gluBuild2DMipmaps(GL_TEXTURE_2D, 3, 16, 16,
GL_RGB, GL_UNSIGNED_BYTE, floorTexture);
} else {
if (linearFiltering) {
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
} else {
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
}
glTexImage2D(GL_TEXTURE_2D, 0, 3, 16, 16, 0,
GL_RGB, GL_UNSIGNED_BYTE, floorTexture);
}
}
int
main(int argc, char **argv)
{
int i;
glutInit(&argc, argv);
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH | GLUT_MULTISAMPLE);
for (i=1; i<argc; i++) {
if(!strcmp("-noms", argv[i])) {
glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH);
printf("forcing no multisampling\n");
} else if(!strcmp("-nomipmaps", argv[i])) {
useMipmaps = 0;
} else if(!strcmp("-nearest", argv[i])) {
linearFiltering = 0;
}
}
glutCreateWindow("point burst");
glutDisplayFunc(redraw);
glutMouseFunc(mouse);
glutMotionFunc(mouseMotion);
glutVisibilityFunc(visible);
glutKeyboardFunc(key);
glutCreateMenu(menu);
glutAddMenuEntry("Reset time", 0);
glutAddMenuEntry("Constant", 1);
glutAddMenuEntry("Linear", 2);
glutAddMenuEntry("Quadratic", 3);
glutAddMenuEntry("Blend on", 4);
glutAddMenuEntry("Blend off", 5);
glutAddMenuEntry("Threshold 1", 6);
glutAddMenuEntry("Threshold 10", 7);
glutAddMenuEntry("Point smooth on", 8);
glutAddMenuEntry("Point smooth off", 9);
glutAddMenuEntry("Point size 2", 10);
glutAddMenuEntry("Point size 4", 11);
glutAddMenuEntry("Point size 8", 12);
glutAddMenuEntry("Toggle spin", 13);
glutAddMenuEntry("200 points ", 14);
glutAddMenuEntry("500 points ", 15);
glutAddMenuEntry("1000 points ", 16);
glutAddMenuEntry("2000 points ", 17);
glutAddMenuEntry("Quit", 666);
glutAttachMenu(GLUT_RIGHT_BUTTON);
glEnable(GL_DEPTH_TEST);
glEnable(GL_POINT_SMOOTH);
glEnable(GL_BLEND);
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
glPointSize(8.0);
#if GL_SGIS_point_parameters
glPointParameterfvSGIS(GL_DISTANCE_ATTENUATION_SGIS, quad);
#endif
glMatrixMode(GL_PROJECTION);
gluPerspective( /* field of view in degree */ 40.0,
/* aspect ratio */ 1.0,
/* Z near */ 0.5, /* Z far */ 40.0);
glMatrixMode(GL_MODELVIEW);
gluLookAt(0.0, 1.0, 8.0, /* eye location */
0.0, 1.0, 0.0, /* center is at (0,0,0) */
0.0, 1.0, 0.); /* up is in postivie Y direction */
glPushMatrix(); /* dummy push so we can pop on model
recalc */
makePointList();
makeFloorTexture();
glutMainLoop();
return 0; /* ANSI C requires main to return int. */
}
